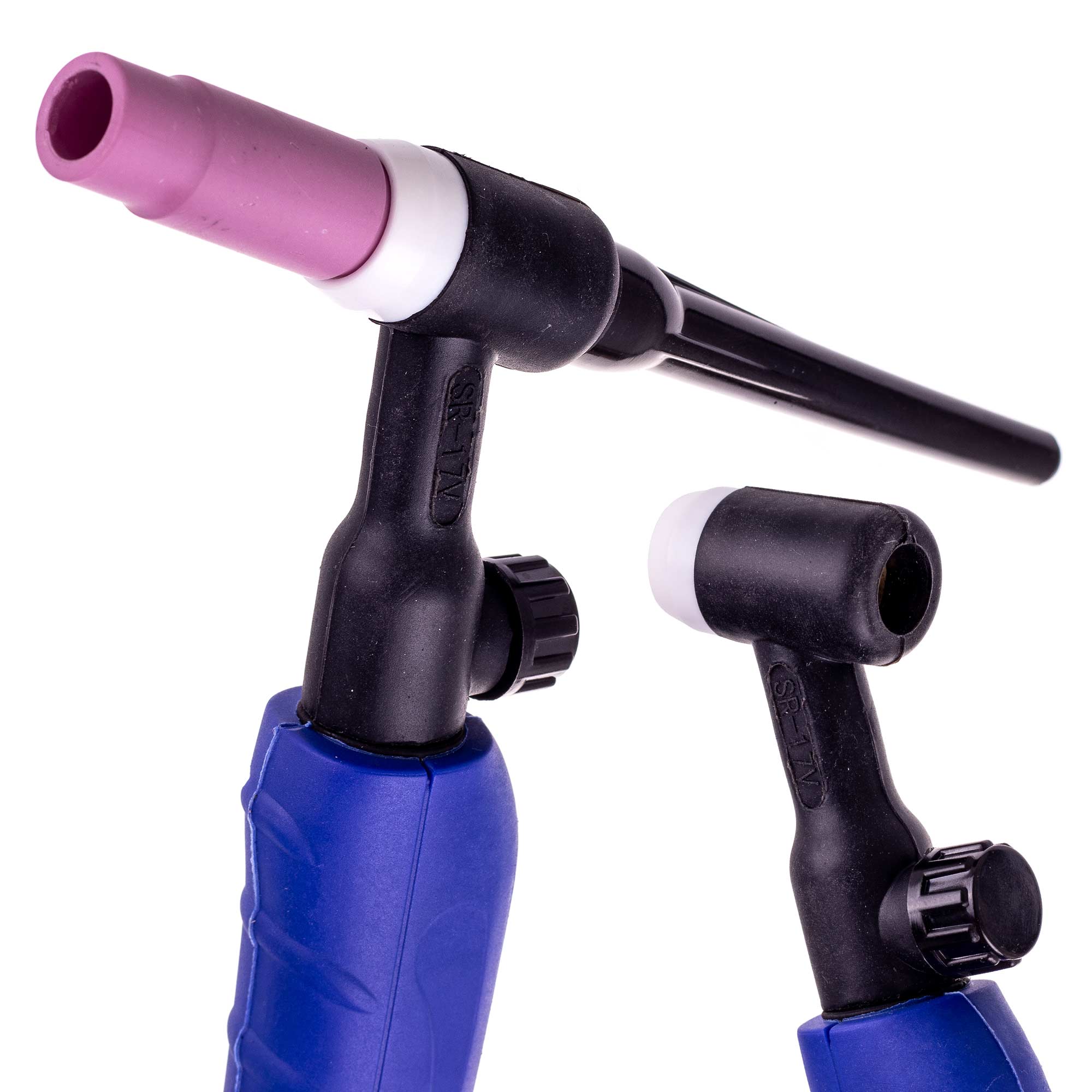

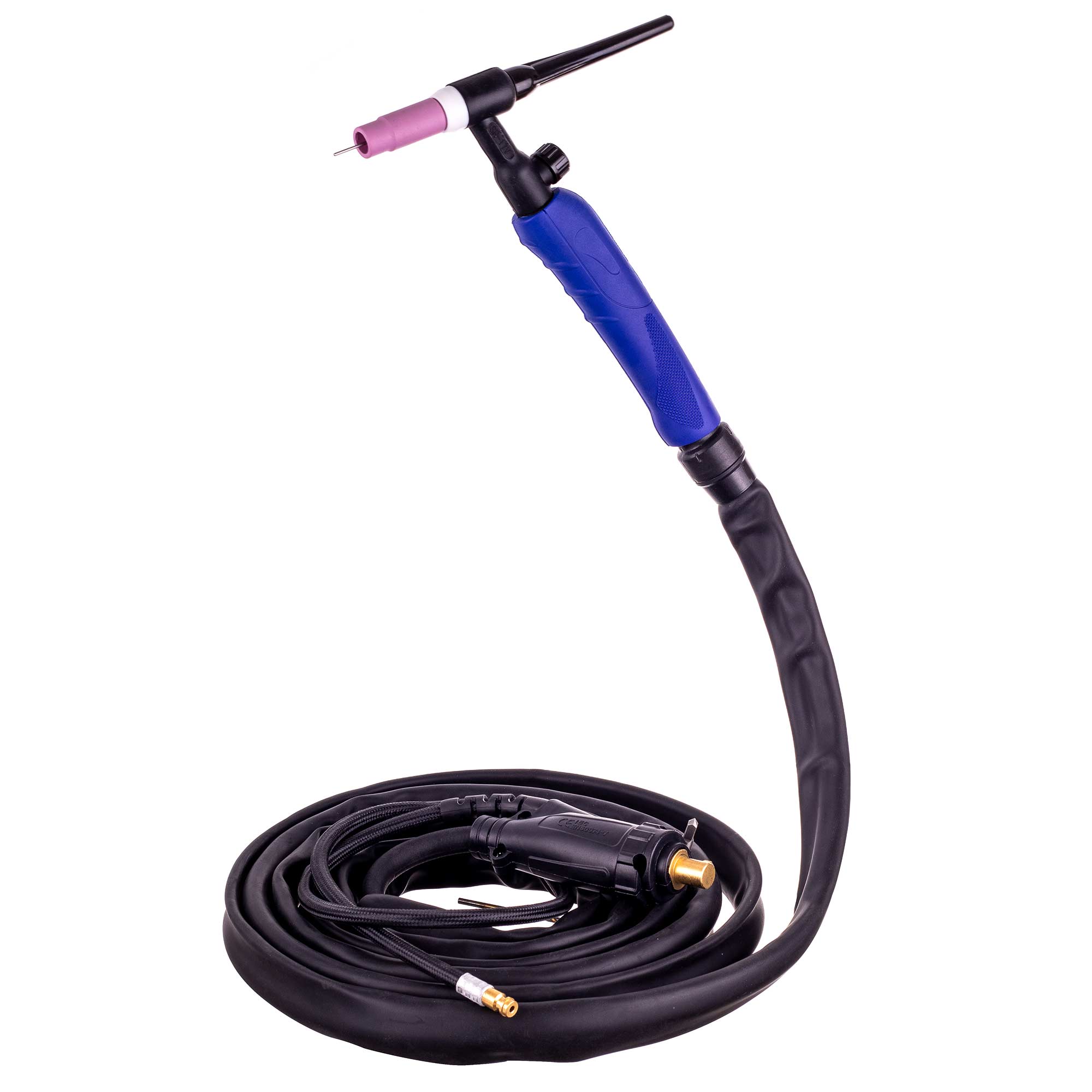

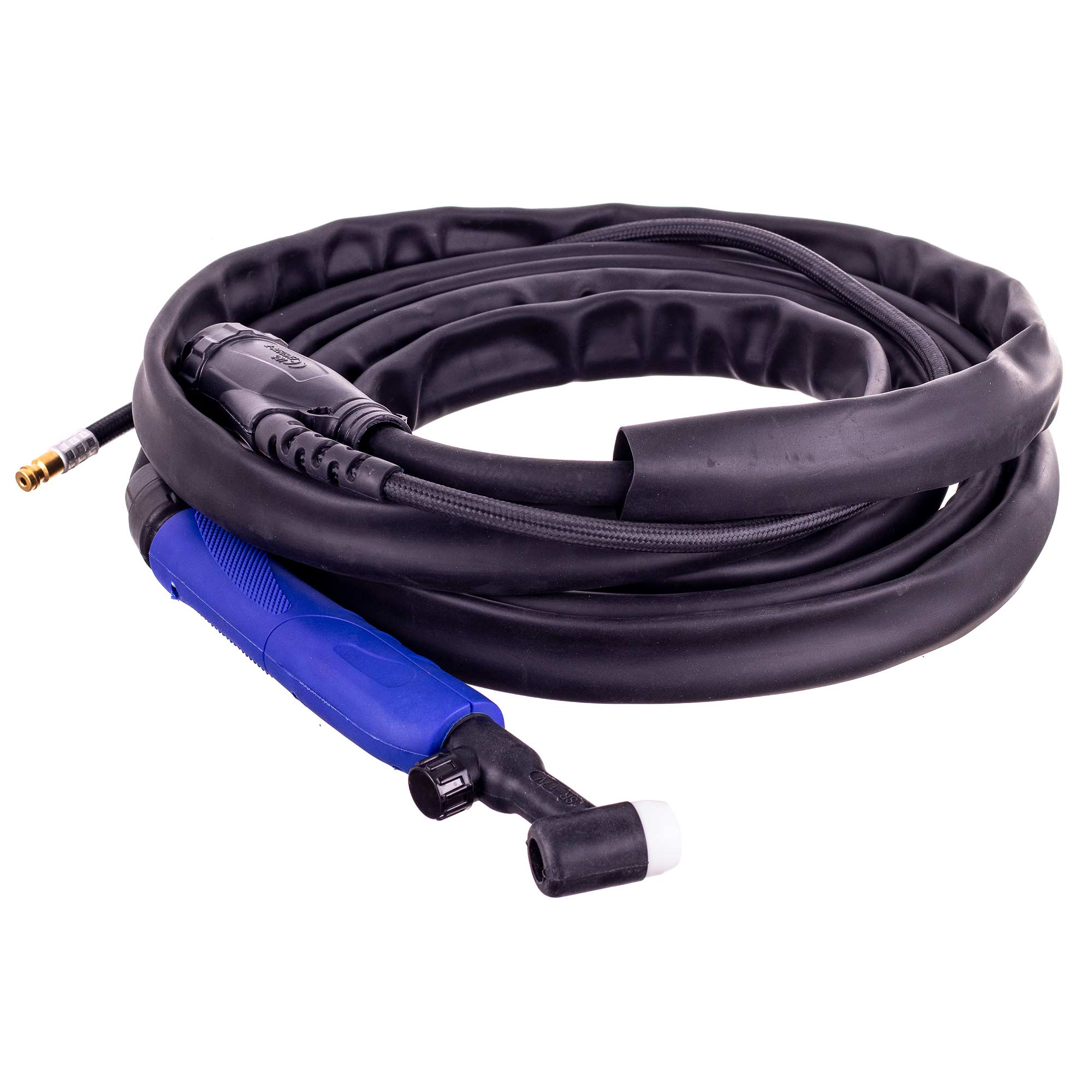

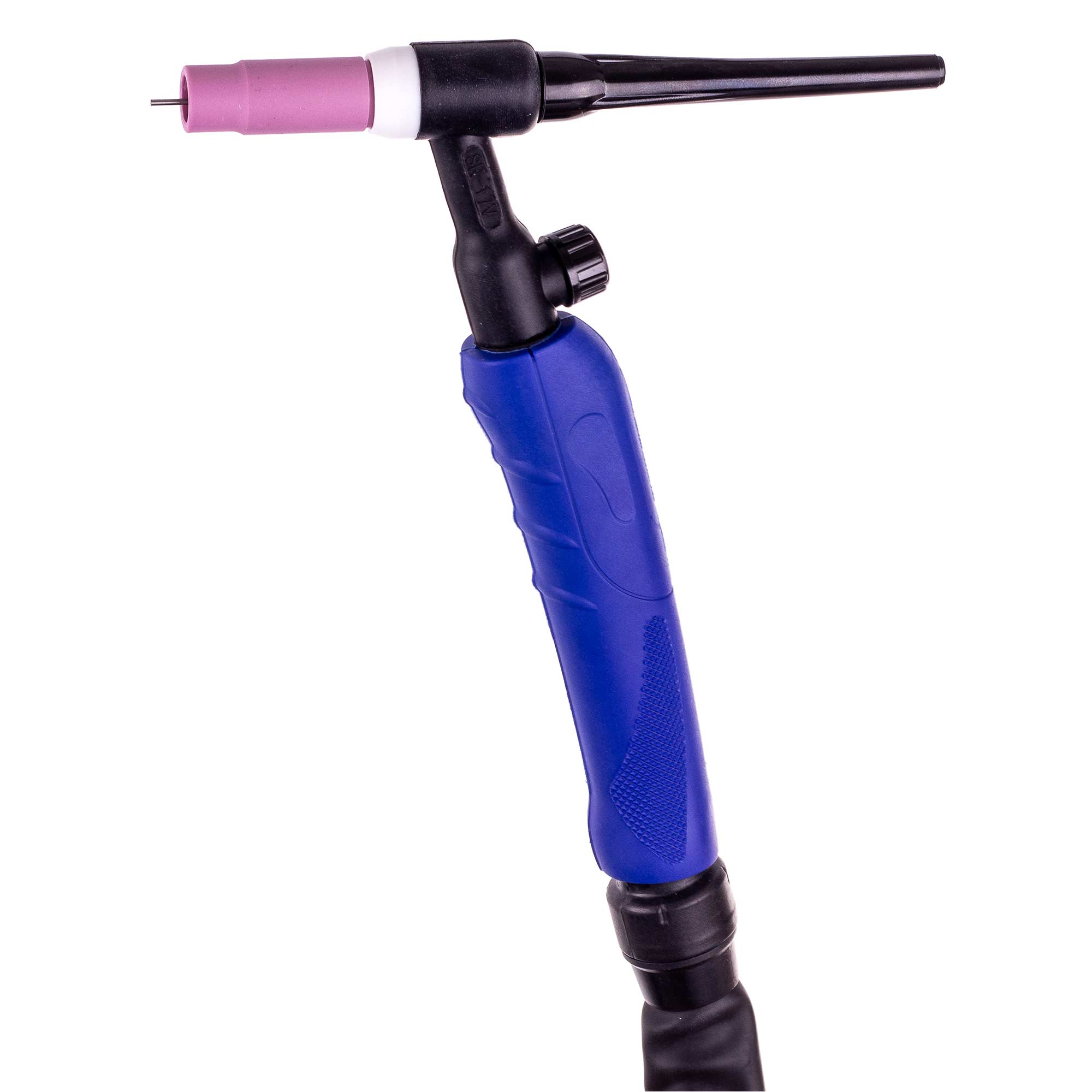

TIG LIFT handle for welding MMA or MIG / MAG devices through a thrusting of the TIG Lift arc - 50 plug

▶ ️ length 4m

▶ ️ Set of accessories in the set

• Equipped with valve placed on the handle for gas control.
• The handle has a rubber cover, protecting the wires before writing. Fixing to welding machines on Big plug (13 mm diameter) On the other hand, the gas line has a completion of a quick connector type 21.

Current cable (current vein) is Made of copper CO He translates into greater its durability and an increased working cycle compared to cables made of aluminum coated with copper in CCA technology.

The set contains all the elements needed to start work,

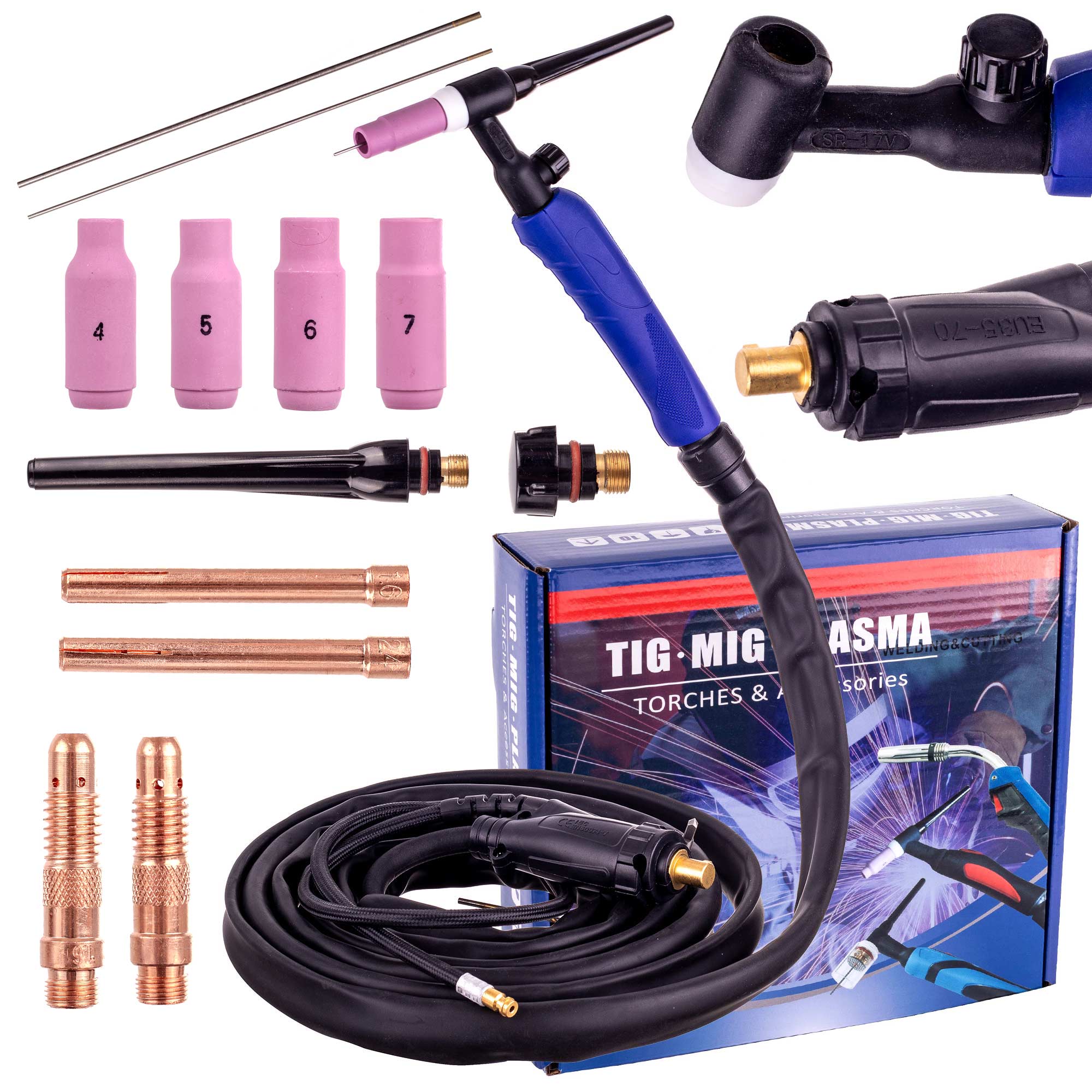

The kit includes:

• TIG SR-17V welding holder - length 4m
• 2x clamping sleeves
• 2x Wolfram Gold (1.6mm and 2.4mm) electrodes
• 2x Current Connector
• 1x short cork
• 1x long plug
• 4x ceramic gas nozzle (various sizes)

Connecting the TIG holder on MMA and MIG / MAG devices:

• Connect the TIG holder to the negative pole (-)
• We connect the mass cable plug to the positive pole (+)
• The gas hose must be connected directly to the reducer by using a quick coupler or a clamping band.
• The handle does not have a control plug

Technical data:

• Length: 4 m
• Completion of the gas hose: quick coupler type 21
• Current plug: Type 50 (Diameter 13 mm)
• Current load / cycle: DC 140 A / 60%
• Diameter of used tungsten electrodes: 1.0 - 2.4 mm
• Weight with packaging: 1.8 kg
