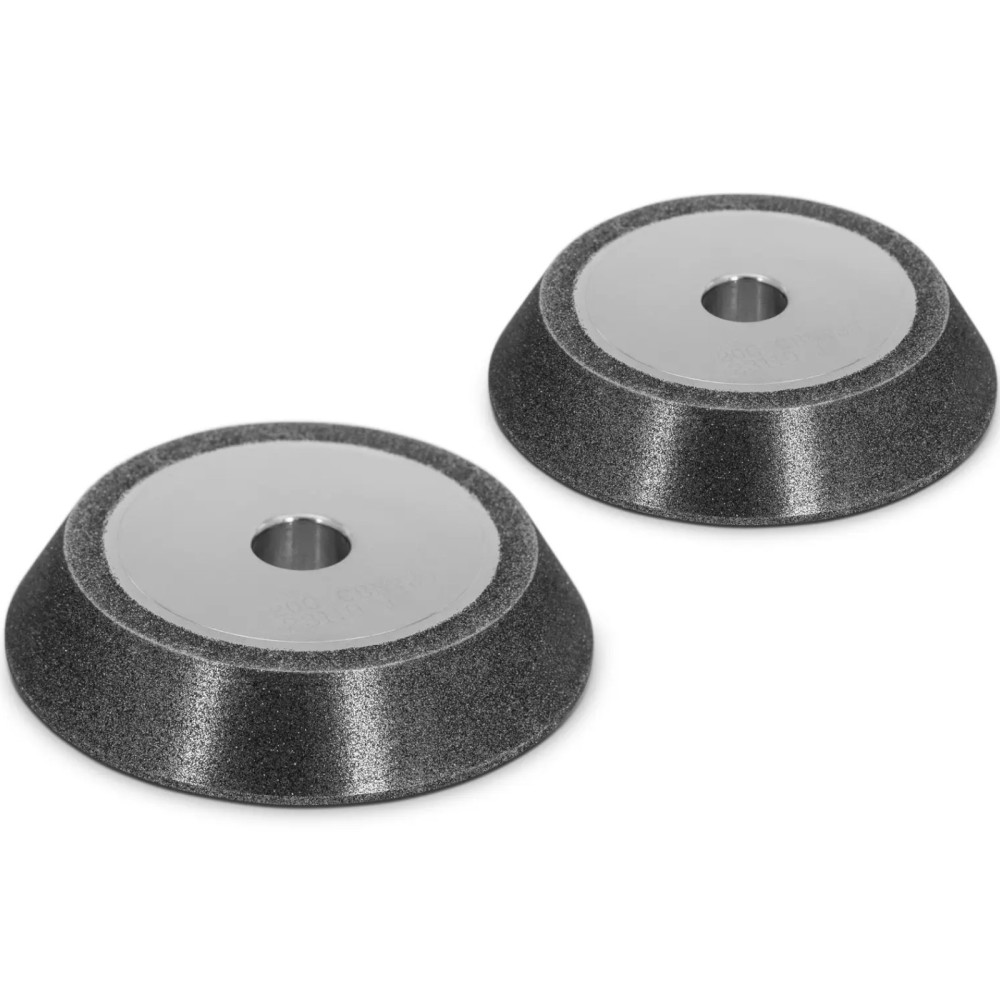

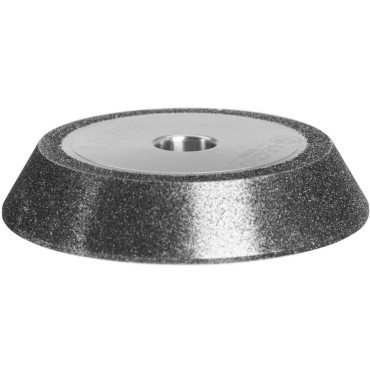

CBN grinding shield for sharpening for HSS Wed drill. 78 x 15 mm - 2 pcs.

Manufacturer's code: 10062775
Shield for CBN230 brand MSW It is an ideal addition to sharpener to drill MSW-GGDS-750R (Article number 10062712). The material used is a cubic boron nitride (in short CBN), which is the second hardest grinding material after diamond. CBN is perfectly suited for precise grinding difficult in processing and high alloy hardened steels, such as high-speed steel, tool or chromed steel. Grinding shield for drills with a diameter of 78 mm Provides fast and precise tool sharpening. The grinding wheel can be quickly replaced with a 12.63 mm handle.
Product features:

• - CBN230 sharpener shield for the model MSW-GGDS-750R (Article number 10062712),
• - a grinding shield from a cubic boron nitride suitable for sharpening high-speed steel (HSS),
• - Sharp shafts with a diameter of 78 mm will provide precise results in the shortest possible time.

Technical parameters:

• - catalog number - 10062775
• - article - New
• - Model - MSW-GGDS-750R HSS
• - Material - Bor
• - Diameter of the shield hole (in the middle) [mm] - 12.63
• - grinding diameter [mm] - 78
• - Thickness of the grinding wheel - 15 mm
• - Dimensions (DXSXW) - 7.8 x 7.8 x 1.5 cm
• - weight - 0.67 kg
• - Dimensions of shipment (DXSXW) - 16 x 16 x 6 cm
• - shipping weight - 0.8 kg

Included:

• - Shield for sharpener 2pcs.
