Manufacturer's code:

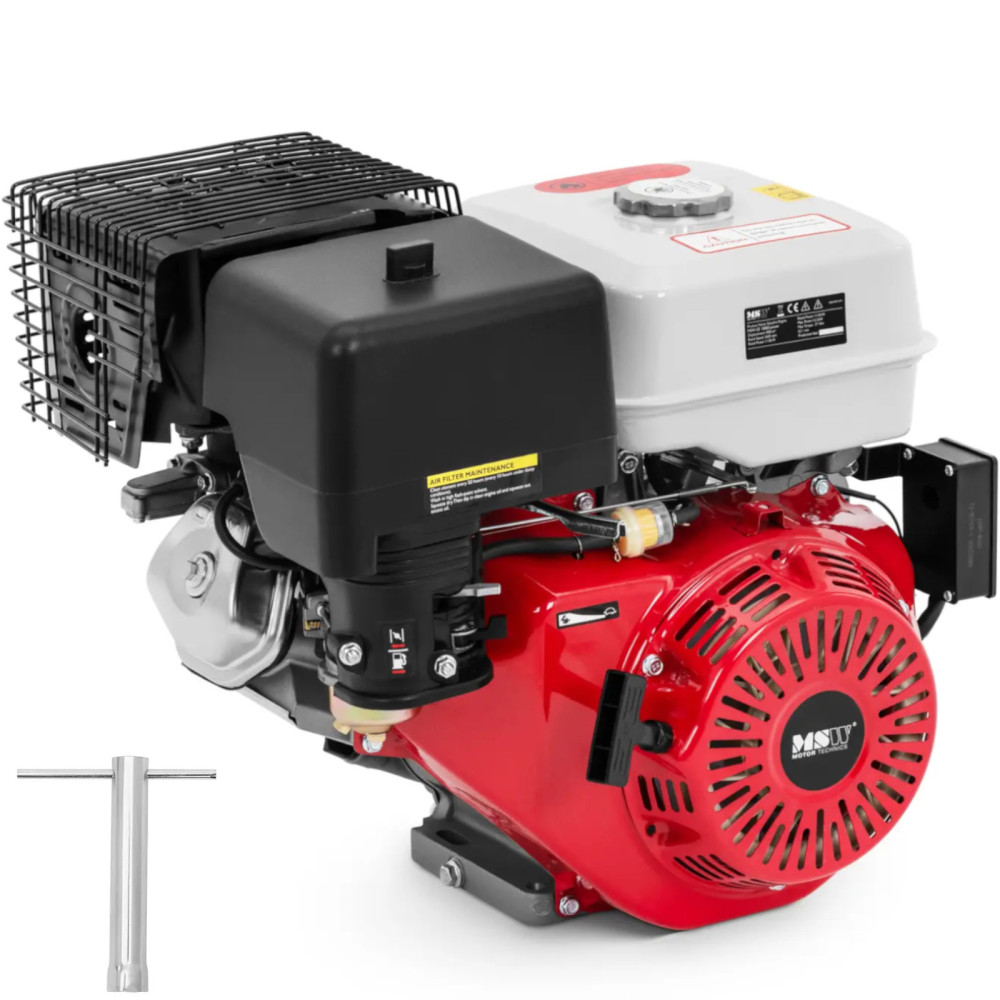

100626544-stroke motor with a power of 16 km of a brand MSW It will work as a stationary and replacement engine in devices such as water pumps, compactors, mowers, sweepers or snowblows. It will also be used as a go-kart motor and in many other applications. The device is extremely easy to use and at the same time stands out with a surprisingly low fuel consumption. The displacement is
458 cm³, 16 km power and speed 3600 rpm at the maximum torque
27 nm The engine will meet the highest requirements. Shaft
Diameter 25 mm and 60 mm long Reliably transfers generated energy. In addition to great performance, this model also stands out with low consumption at a level

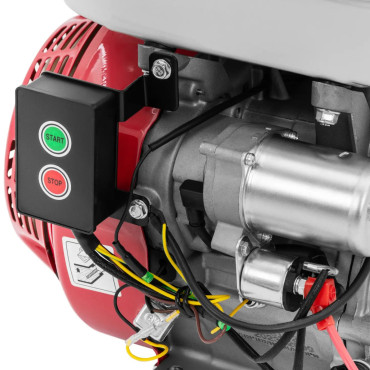

350.5 g / kWh. The device is activated electrically using the button. Tank with a capacity
6.5 liters It allows for a long-term work. The engine has been accurate made of durable materials, which guarantees reliability even with intensive use. The four-stroke motor has many protective functions such as
AVR and exclusion in the absence of oil or overheating. Effective air cooling will also protect against overheating.
Product features: - - electric start-up of a 4-stroke motor with a button and a long working time thanks to a capacity of 6.5 liters,
- - thanks to the capacity of 16 km, the gasoline engine can be used as a stationary and replacement engine in devices such as water pumps, vibration plates, mowers and sweepers
- - equipped with air cooling protecting against overheating, automatic voltage control (AVR) and protection against excluding in the absence of oil and overload,
- - high quality performance, easy start and quiet operation of the stationary engine with minimal vibrations,
- - the OHV valve control makes the 4-stroke motor optimized construction with excellent performance,
- - the drive shaft with a diameter of 25 mm and a length of 60 mm can be adapted to multiple devices.
Technical parameters: - - catalog number - 10062654
- - article - New
- - Model - MSW-Ge 18000 Power
- - Power type - Petrol
- - Material - Aluminum, copper
- - Color - Black, red, white
- - Ignition system - TCI
- - Diameter Cylinder X SUW [mm] - 92 * 69
- - Nominal speed [obr./min] - 3600
- - Fuel consumption [g/kWh] - 350.5
- - Spring step - 8.5: 1
- - maximum torque [Nm] - 27
- - engine power [KM] - 16
- - engine type - One-cylinder, air-cooled, 4-stroke, OHV
- - start - Electrical starter
- - Maximum power - 13.2 kW
- - shaft length - 60 mm
- - jumping volume - 458 cm³
- - Rated power - 11800 W
- - shaft diameter - 25 mm
- - efficiency - 16 kw
- - Fuel tank capacity - 6.5 l
- - battery power - Not
- - Dimensions (DXSXW) - 53 x 37 x 43.5 cm
- - weight - 32.15 kg
- - Dimensions of shipment (DXSXW) - 57 x 44 x 51 cm
- - shipping weight - 35.85 kg
