Kafar Palifer for driving pillars to 100 mm 1.5 kW

Manufacturer's code: 10090147
Flux Used to drive fence posts and other o Diameter up to 100 mm In the ground. Palifers are equipped with single-cylinder Air-cooled engine. Maximum power and speed of the device are 1.5 kW / 9000 rpmand torque and speed 2.5 NM / 5000 rpm. The set includes 3 Rings reduction in diameter 49, 69 and 100 mm. Thanks to the universal application, the tiles will work in painting on farms (fences for horses, cows, sheep), construction equipment (temporary fences, shawl), parking lots (temporary fences), in places of outdoor events (marking, temporary fences).
Product features:

• - engine with power 1.5 kW,
• - maximum power and speed - 1.5 kW / 9000 rpm,
• - torque and speed - 2.5 NM / 5000 rpm,
• - Frequency of impact 700 ~ 1350 hit /min,
• - Energy of impact - 20 ~ 55 J.

Technical parameters:

• - Model - Ht-pilot-1500
• - catalog number - 10090147
• - article - New
• - Engine - Gasoline, single-cylinder, 2-stroke, air-cooled
• - power - 1.5 kW
• - Max. Speed - 9000 rpm
• - fuel consumption - 0.86 l / h
• - Fuel tank capacity - 1.3 l
• - Fuel mix - 25: 1, petrol: oil
• - Impact frequency - 700-1350 hit /min
• - Energy of stroke - 20-55 J
• - engine oil type - API TC / Jasofb
• - Dimensions (DXSXW) - 28 x 26.6 x 82.6 cm
• - weight - 20 kg
• - Dimensions of shipment (DXSXW) - 97.3 x 42.5 x 37 cm
• - shipping weight - 32.18 kg

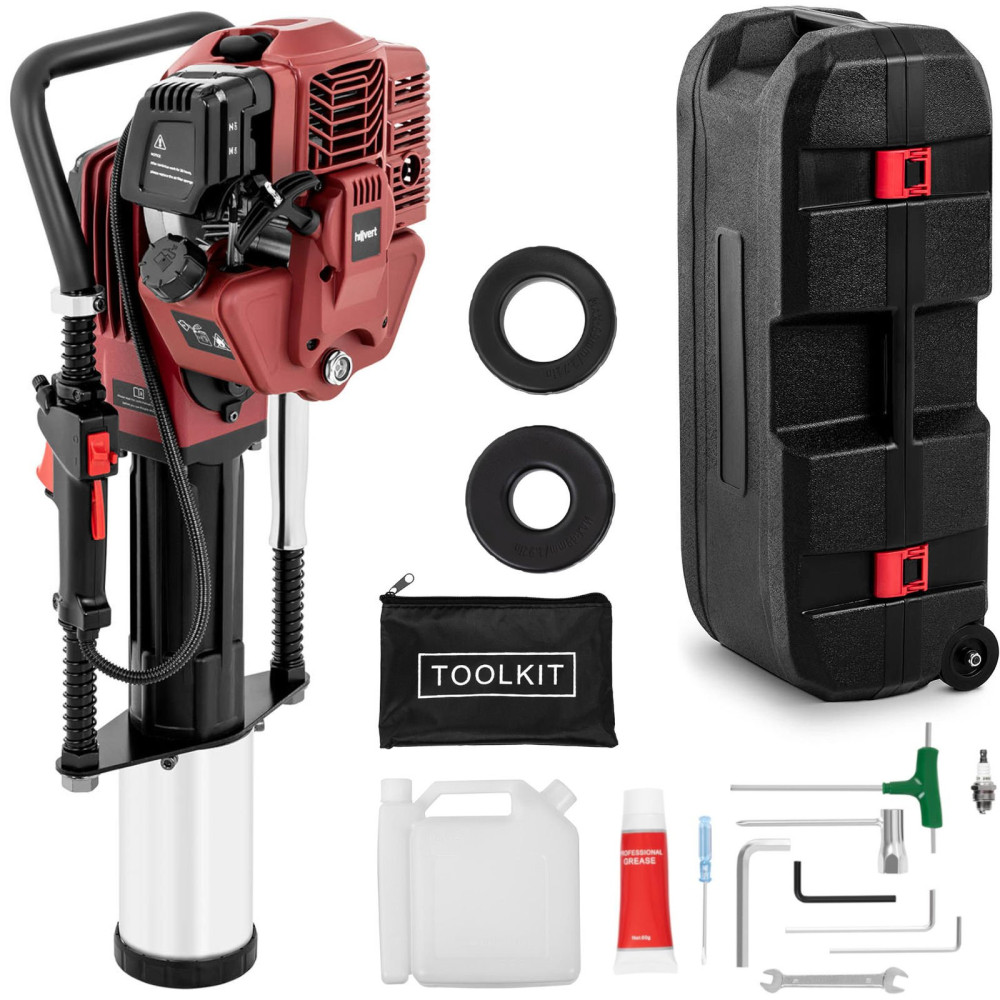

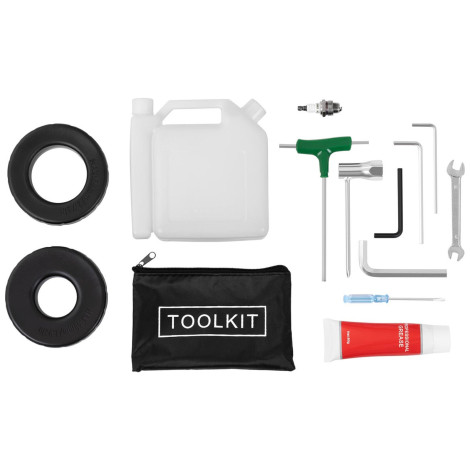

Included:

• - flue gas tube,
• - reduction rings - 3 pcs,
• - Grease - 60 g,
• - BM6A spark plug,
• - flat key 8 mm / 10 mm,
• - Allen keys: M10, M6, M5, M4,
• - Key to the spark plug,
• - Screwdriver,
• - T M4 / M5 hexagonal stylea key,
• - plastic suitcase,
• - mixing container,
• - Operating instructions.
