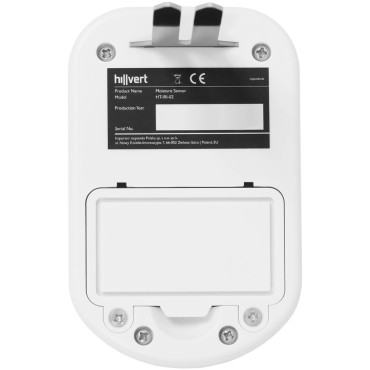

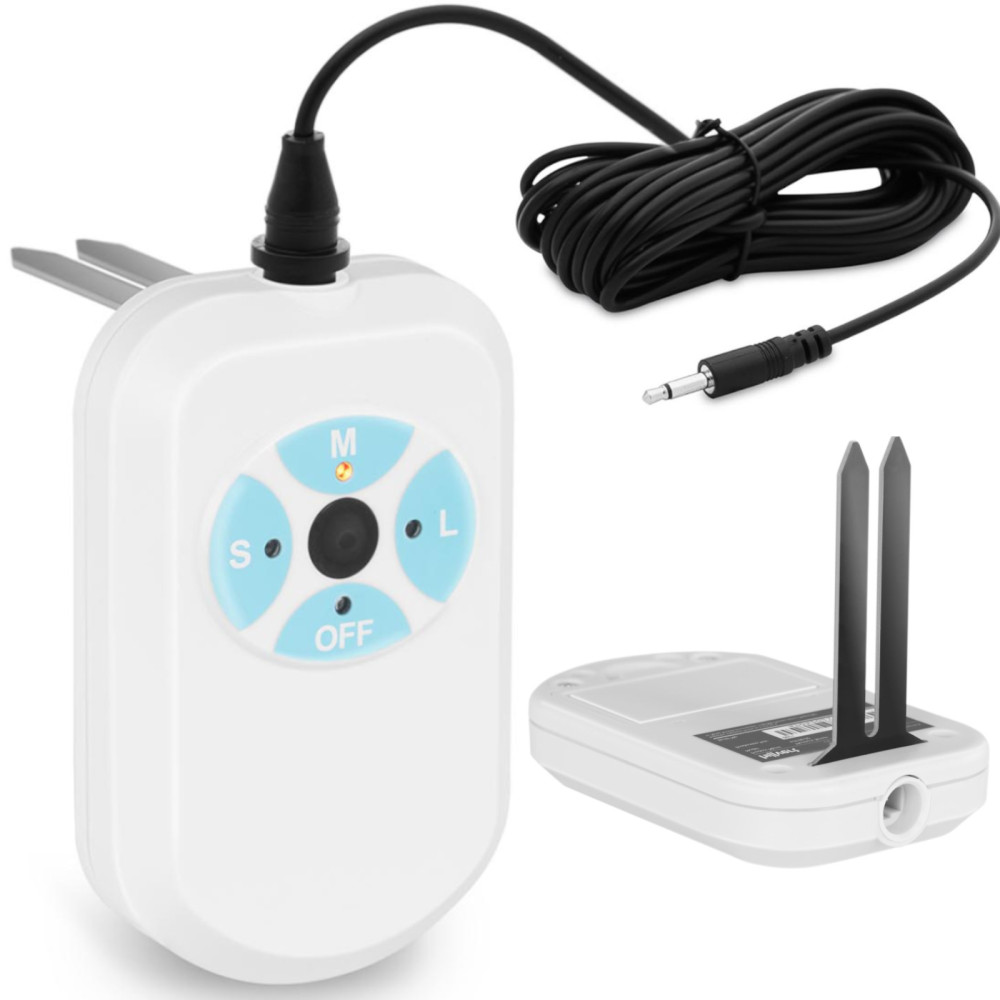

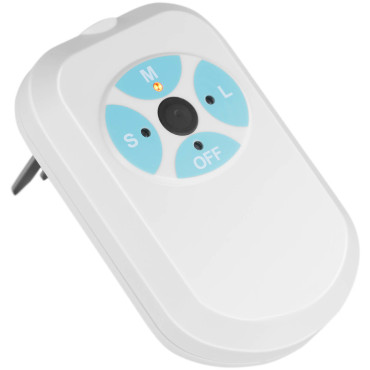

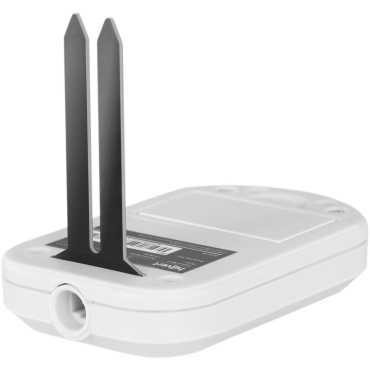

Soil moisture meter sensor for watering system

Manufacturer's code: 10090182

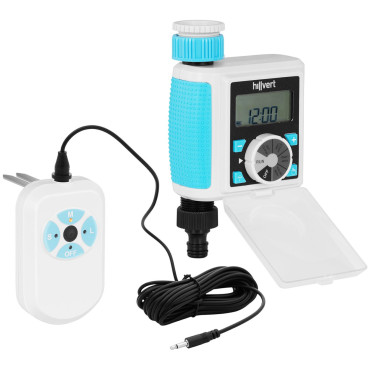

Moisture sensor of the soil soil Hillvert It will work for monitoring its level so that the controller of the automatic irrigation system can withstand watering when it is too wet. The device fits most irrigation drivers, especially for brand models Hillvert with catalog numbers 10090184, 10090187 and 10090188. One of the meter is set on the meter Three levels of soil humidity (25%, 45% and 60%). When its actual level is higher than the set, the sensor sends a signal to the controller to disable the irrigation cycle. Measurement is made Co 60s. The cable to connect to the controller is resistant to weather conditions. LED indicators They facilitate service. The desired humidity level is selected with the appropriate button, which indicates the lighting of the diode. If no changes will be entered within a minute, the indicator will turn off by recording the setting.
Product features:

• - Versatility - three different humidity levels - 25%, 45%, 60%,
• - Performance - water savings and plant protection against excessive watering,
• - Precision - Measurement made every 60 S,
• - Durability - resistant to weather conditions, also suitable outside,
• - Easy service - Three buttons and LED signaling settings.

Technical parameters:

• - Model - Ht-IRI-02
• - Producer code - 10090182
• - Product condition - New
• - Power cord [m] - 5
• - Material - Percentage points
• - Adjusting the duration of watering - N / a
• - Output plug - Mini-Jack slot
• - Time setting [min] - N / a
• - Operating mode - S = 25%, M = 45%, L = 60% (volume indicator)
• - regulation of watering frequencies - N / a
• - power source - 2 x AA 3 V
• - thread - N / a
• - IP protection degree - Ip66
• - Periodic measurement frequency [s] - 60
• - Dimensions (DXSXW) [cm] - 10 x 8 x 13
• - weight [kg] - 0,2
• - Dimensions of shipment (DXSXW) [cm] - 11 x 9 x 15
• - shipping weight [kg] - 0,22

Included:

• - soil humidity sensor
• - User manual
