Manufacturer's code:

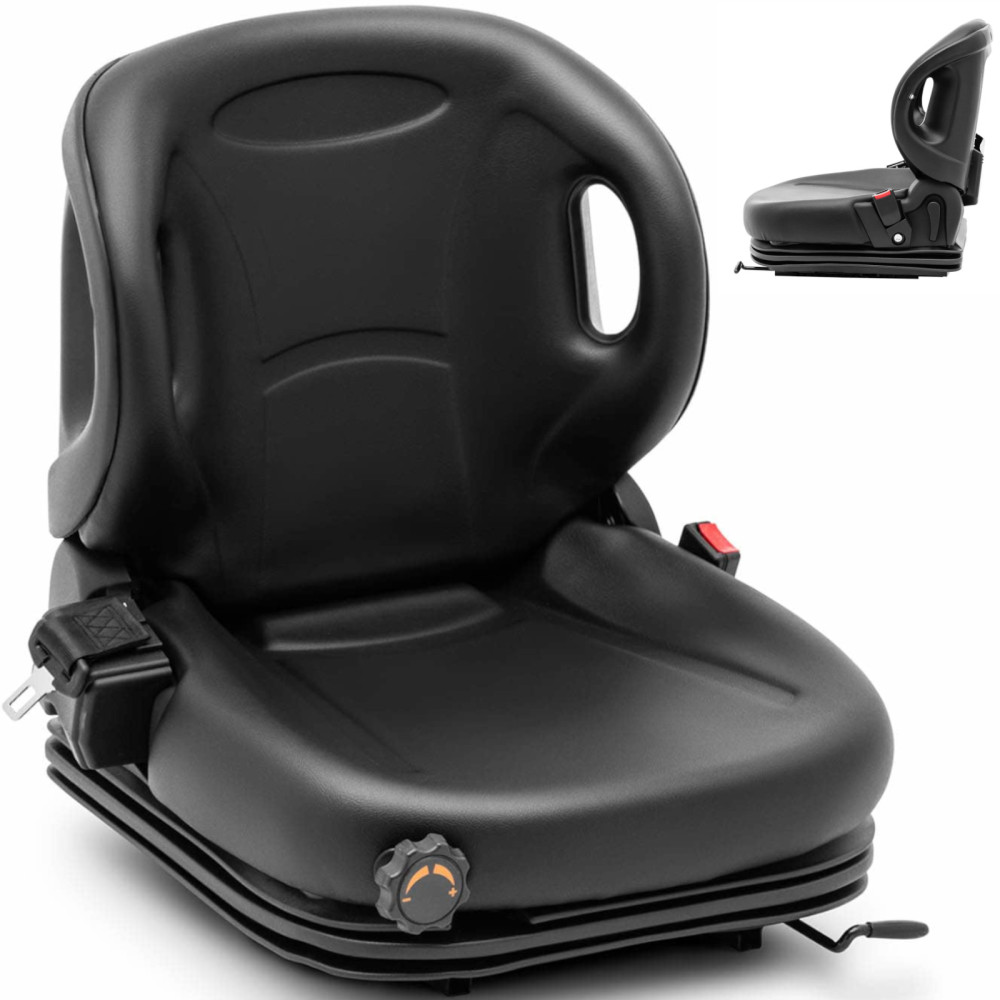

10090289Adjustable seat for the brand tractor
Hillvert Made of selected materials. Provides work comfort in tractors, mowers, trolleys or other machines even on long distances. Solid workmanship and foam lining guarantee the lack of deformations and dents of the seat and protects the back against load. To not load your back, a chair replacement is recommended
To the tractor after about 1000 working hours. A long life service provides a stable frame with a steel construction to
120 kg. A surface made of polyvinyl chloride (
PVC) Is easy to clean. The chair can be adapted to your own needs and move forward and backwards
17.6 cmand the backrest to set for an angle

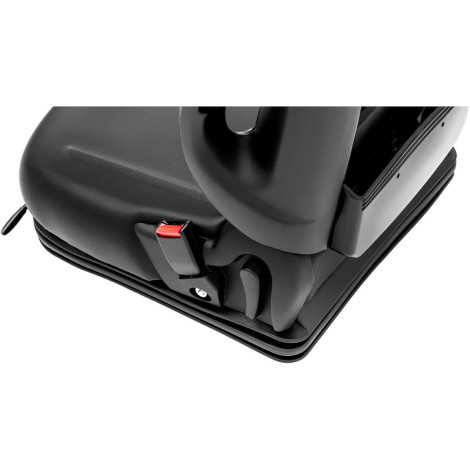

20 - 25DEG. The seats are also equipped with a seat belt. The seat is convenient thanks to the suspension of 48mm and the surface

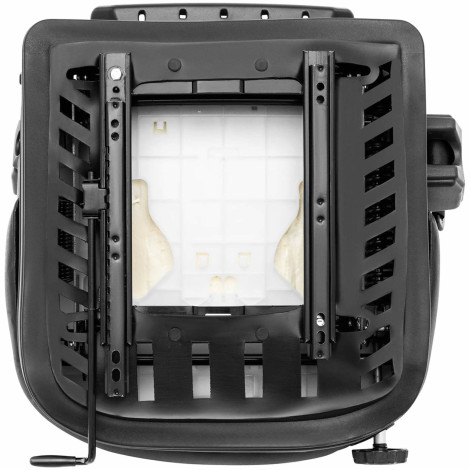

50x50 cm. Suitable for installation in many vehicles. The size of the mounting plate is
23.4 x 28.5 cm.
Product features: - - convenient thanks to a particularly wide and well-padded seat with a suspension of 48 mm,
- - Durable thanks to a solid frame made of steel and polyvinyl chloride (PVC),
- - ideal for tractors, mowers, forklifts, etc. with the right dimensions of the mounting plate (23.4 x 28.5 cm),
- - adjustable backrest deviled by 20 - 25deg and a sliding seat by 17.6 cm,
- - Simple operation and assembly, all settings can be performed intuitively.
Technical parameters: - - catalog number - 10090289
- - article - New
- - Model - Ht-rundle-12
- - Material - PVC, Powder painted steel, Sponge
- - Height of the back [cm] - 44
- - adjustment of the backrest deviation [deg ] - 20 - 25
- - Color - Black
- - longitudinal regulation [cm] - 17,6
- - seat belt - So
- - Maximum load [kg] - 120

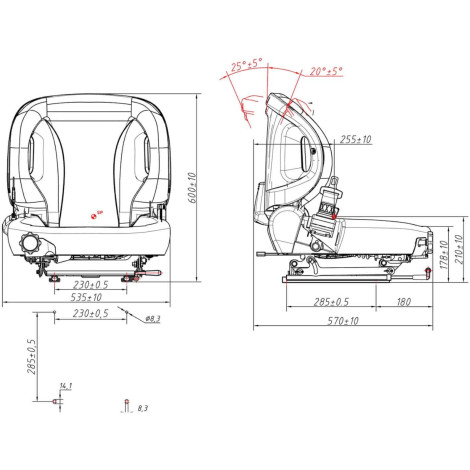

- - Dimensions of the mounting plate [cm] - 23.4 x 28.5
- - Seat dimensions [cm] - 50 x 50
- - Suspension - 48 mm

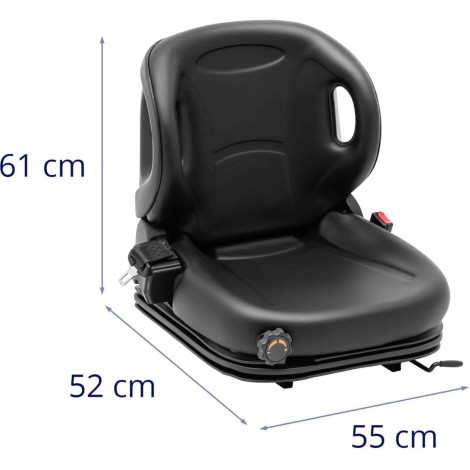

- - Dimensions (DXSXW) - 52 x 55 x 61 cm
- - weight - 16.2 kg
- - Dimensions of shipment (DXSXW) - 62 x 58 x 57 cm
- - shipping weight - 18.8 kg
Included:
