Glicerine pressure gauge 23mm clock pressure meter 0-160 bar Thread 1/4 "Rear

Glicerine gauge 0-160 bar 63mm - Rear fastening 1/4 "

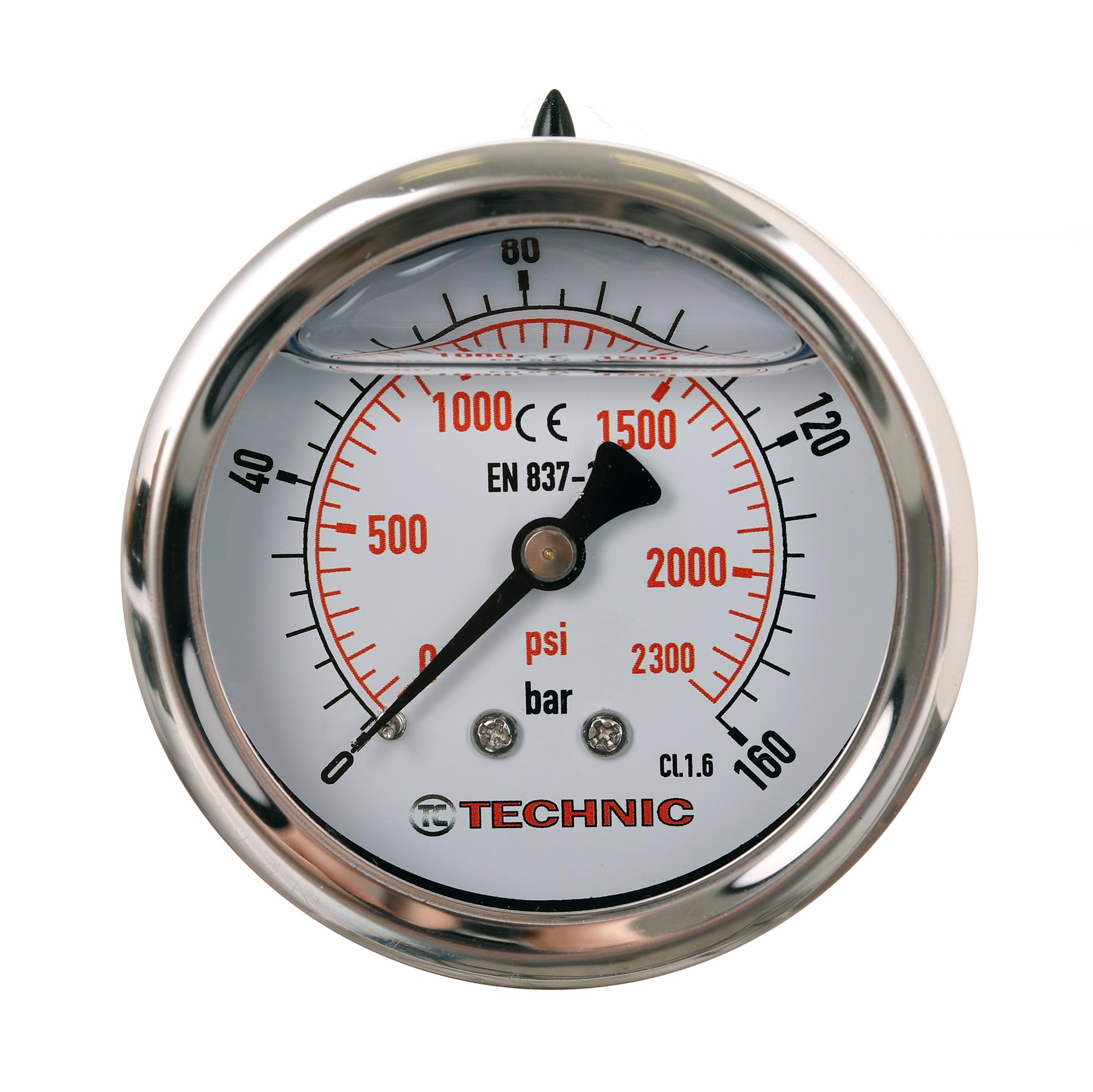

A solid Glicerine TC Technic brand pressure monitor. Durable metal design and accurate measurement in bars and psi, an accuracy class of 1.6.

The gauge inside filled with glycerine, thanks to which the measurement is exact despite shocks and vibrations. It has a plug to align pressure inside a gauge with atmospheric pressure.

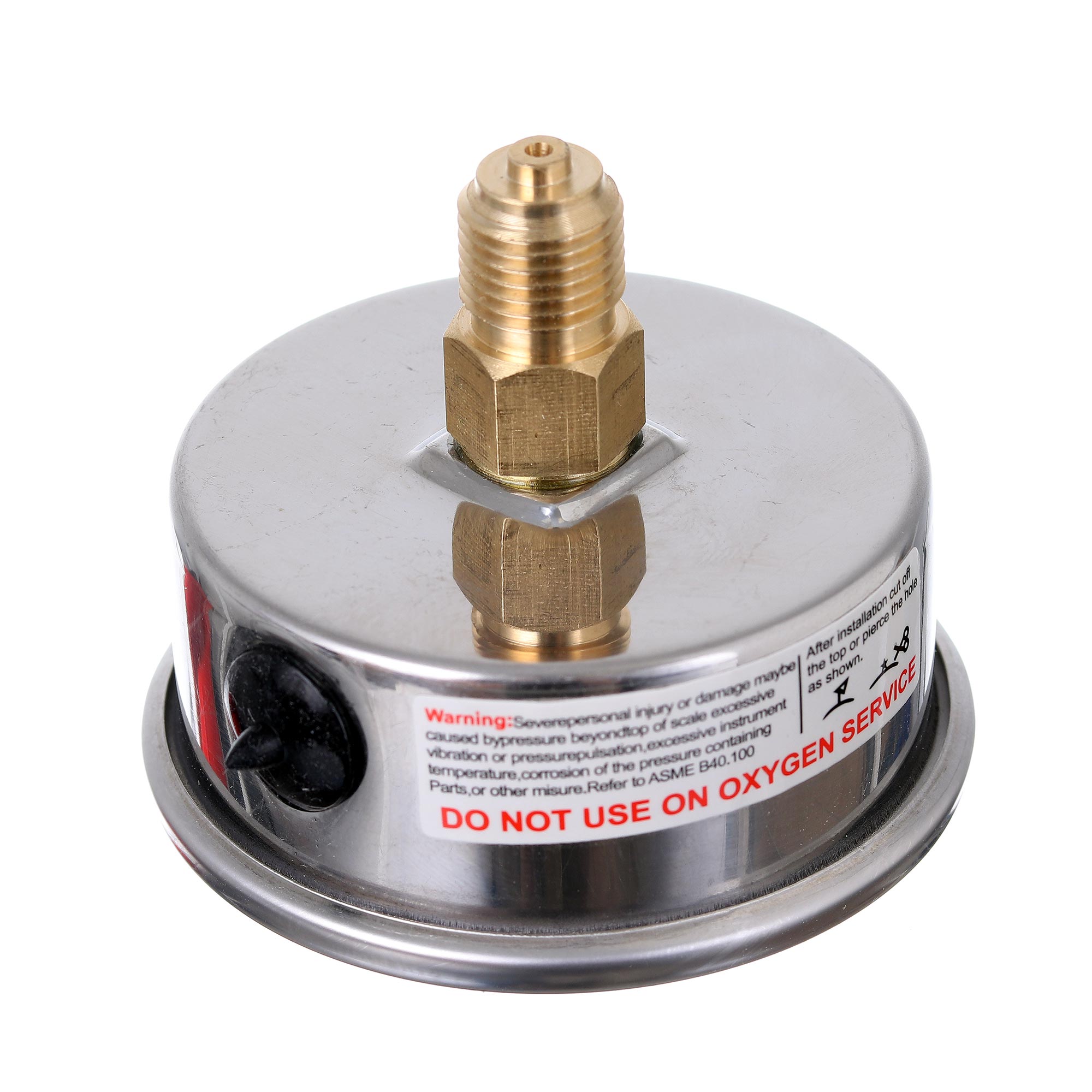

Mounting with a 1/4 "inch thread placed on the back of the manometer.

Overall destination for measurements of gas and liquid pressure. Ideally suited for pneumatic and water installations, with air conditioning, ventilation, etc.

Technical data:

• Housing diameter: 63mm measured on the back (front 69mm),
• Steel housing,
• Mounting: 1/4 ", (approximately 13mm measured outside the thread to the caliper)
• Split: in Bars and Dogs,
• Maximum pressure: 160 bar,
• Accuracy class: 1.6,
• Weight: about 0.17 kg,
