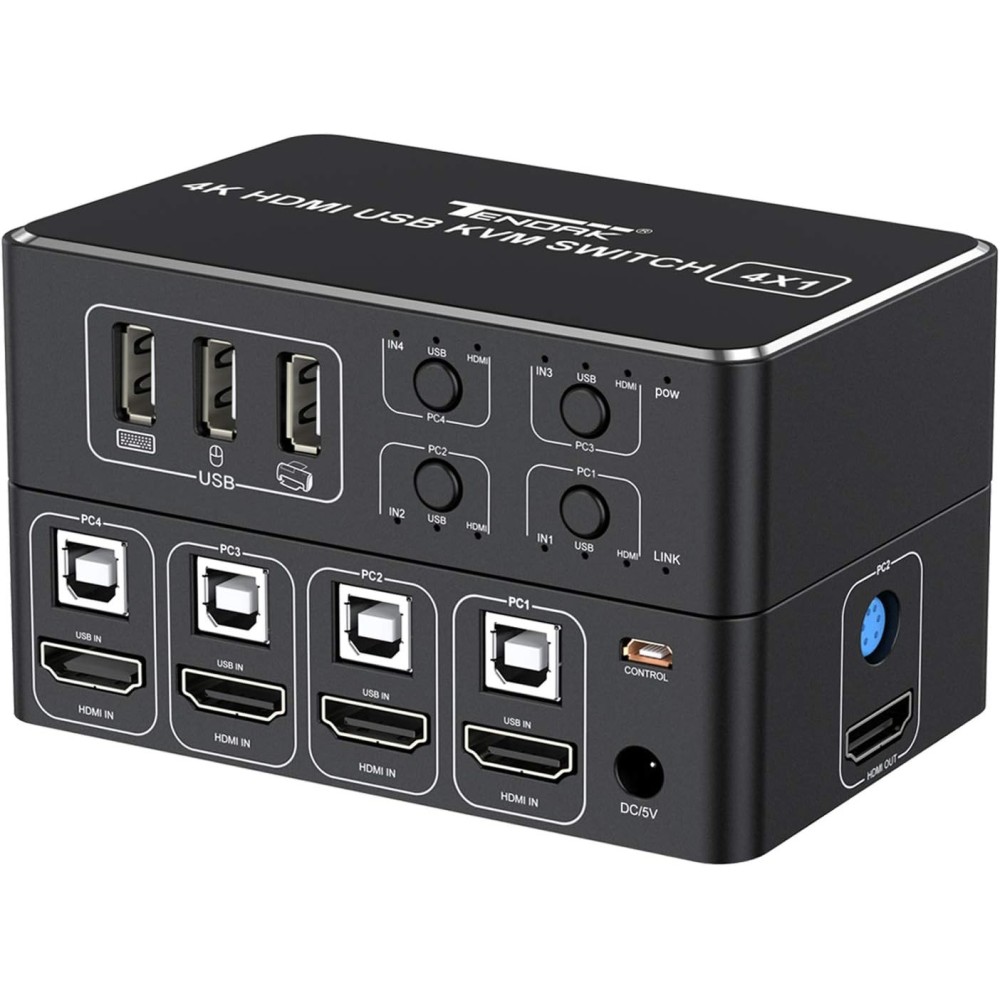

TENDAK 4-computer KVM HDMI switch, USB 2.0 HDCP 2.2 4K at 60 Hz

The 4-port HDMI KVM switch - allows you to connect various monitors, keyboards and mice (support mechanical and wireless keys) to control four PCs or game consoles with HDMI and USB ports. Thanks to this KVM switch you will save a place, energy and device costs. You can centrally control and manage multiple computers without having moving between workplaces.

KVM 4K @ 60Hz switch box - compatible with HDMI 2.0 and HDCP 2.2. Supported resolution to 3840x2160 @ 60Hz, with back compatibility up to 1080p, 1080i, 720p, 480p, 480i. Automatically reads and remembers the monitor parameters (EDID) when directly connecting HDMI to save the best display resolution. The signal and data are transmitted smoothly and stable, which makes the image more precise and realistic.

Additional USB 2.0 port and PS2 keyboard connection - USB KVM HDMI switch with an additional standard USB 2.0 interface, allows you to share a USB flash drive, printer, barcode scanner, USB hub, cameras Online and USB hard drives or other USB devices between computers. PS2 interface for a standard wired keyboard with a PS2 plug. Plug & Play, power supply via USB does not require drivers or power supply.

Easy switching in many ways - 1. Using a prolonged switching button with a 2M cable that provides a sufficient length to organize cables and hold the switching button at your fingertips (recommended); 2. Press the button on the front panel of the KVM switch to switch the HDMI input device. This KVM switch does not support switching using the shortcut keys on the keyboard, which reduces key conflicts and makes the device smoothly.

Wide compatibility - compatible with all laptops with HDMI port and other devices, such as PCs, laptops, PS4, Xbox One, Nintendo Switch, etc. ideal for graphic designers, programmers, Financial applications, trading shares, video monitoring, games and multimedia applications, video teaching etc. works with Windows, Macos, Linux, Unix systems, etc.

Features:

• Four groups of HD audio and video sources and USB interfaces enabling free switching.
• It supports mechanical and wireless keyboards and mice.
• Supports the maximum video resolution 3840 x 2160 @ 60Hz.
• Compliance with the HDMI standard 2.0.
• Adaptive reading Edid / HDCP, enabling adaptation to various complex application environments.
• HDCP 2.2 standard, digital content protection technology with high bandwidth.
• High compatibility, automatic source adjustment and display device.
• The built-in automatic adjustment system provides a smooth, clear and stable image.
• Built-in ESD protection system.
• Easy assembly, plug and play.

Specifications:

• Standards: HDMI 2.0; HDCP 2.2.
• Maximum pixel clock: 340 MHz.
• Maximum data transfer rate: 18 Gbps.
• Range of resolution: up to 4kx2k @ 60Hz (3840x2160), 3D, 1920x1080 @ 60Hz.
• Connection: HDMI interface.
• Impedance: 100Ω.
• HDMI cable range: <5 m (resolution: 1920x1080 @ 60Hz)
• HDMI Cable Range: <3 M (Resolution: 3840x2160 @ 60Hz)
• Interface protocols: USB 2.0
• PC input interface: USB-B
• Output interface type: USB-A
• Energy consumption: max 2W
• Temperature: Work: -5 ℃ ~ + 70 ℃
• Humidity: Work: 5% ~ 90%
• Dimensions: 11.0 x 6.0 x 3.3 cm

Contents of the packaging:

• 1 x HDMI 4-port KVM switch
• 4 x USB-A cable to USB-B
• 1 x USB power cable
• 1 x Switching button with the cable
• 1 x User's Manual
