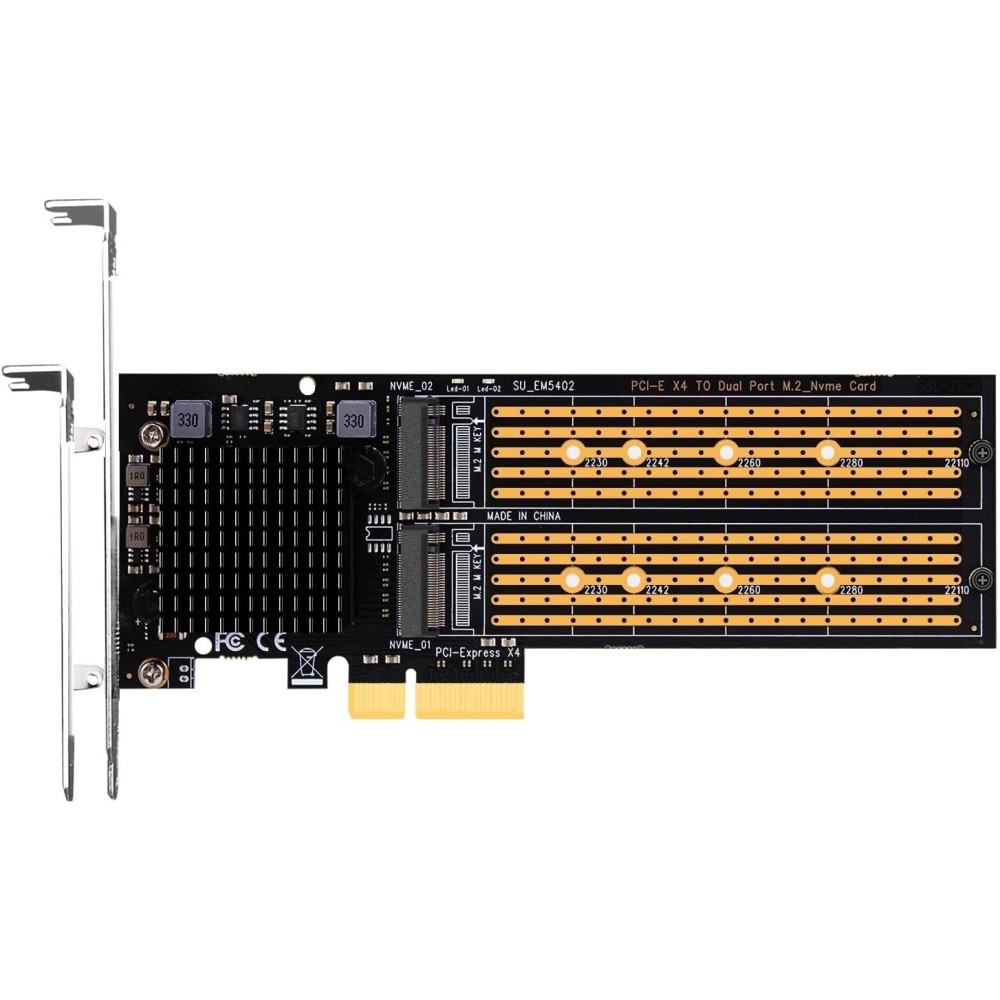

Dual Glotrends PA20 M.2 NVME adapter to PCIE 3.0 x4 with pcie bifurcation

Dual M.2 NVME adapter to PCIE 3.0 x4: With the installation of 2 SSD M.2 NVME disks (supports 22110/2280/2260/2242/2230 M.2 NVME SSD) on this PCIE 3.0 adapter X4, your computer will be able to access 2 SSD M.2 NVME disks simultaneously (NOTE: Does not support SSD M.2 SATA disks).

Built-in ASM2812 chip with bifurcation of PCIe: can work with all types of motherboards (Note: the PCIe slot must be assigned to the PCIE X4 band).

Output band: 2 x SSD Disks M.2 NVME Sharing PCIE 3.0 x4 band (32GBIT / S = 4GB / S Max.), Which means that 2 x SSD Disks M.2 NVME can not work with full Speed simultaneously.

Hardware platform: Supports Soft RAID on the Intel / AMD platform, does not support Mac Pro 5.1 (Note: To configure RAID-on-CPU (VROC) Intel, you must purchase a license).

System booting: Reinstall the operating system and set BIOS / UEFI to boot from this SSD M.2 NVME disk (NOTE: Some motherboards are too old to handle the system boot. In this case, SSD drives M.2 NVME can Be used as storage disks).

Compatibility with operational systems: Plug-and-Play in Windows 11/10/8 / Linux / Mac OS (Note: does not support Windows 7). A new SSD M.2 NVME drive must be initiated and formatted before the computer is diagnosed.

Quiet radiator: ensures that the adapter works for a long time without losing performance.

• Model: PA20interfejs for PC: PCI-Express 3.0 x4interfojs to SSD: 2 x Key Maximum bandwidth (Gbbps): ~ 4GBBPS (PCIe 3.0 x4); ~ 2GBBPS (PCie 2.0 x4) Chip: ASM2812Form Factor: 2230 / 2242/2260/2280/22110Patability with operating systems: Windows and Linux (Note: does not work with Windows 7 and Mac Pro 5.1) PCIE bifurcation: Supported
