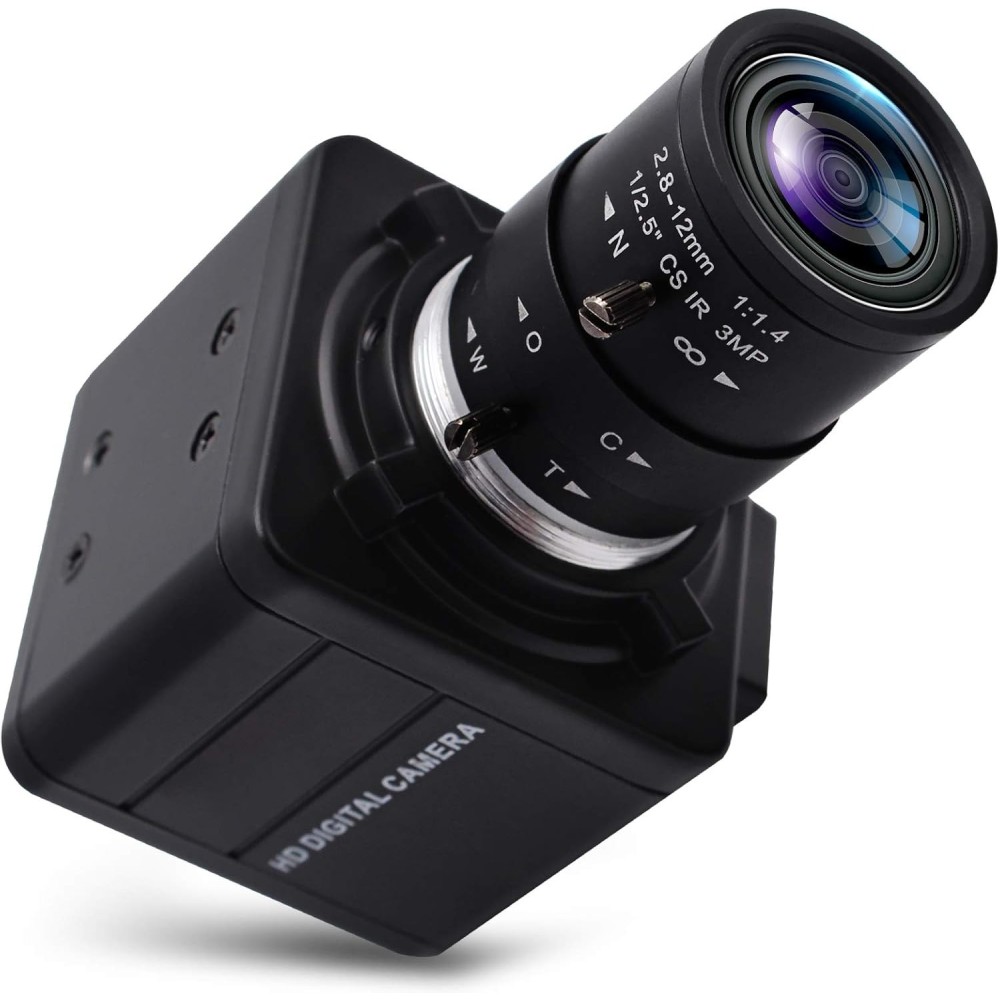

SVPRO ELP-USB4KCAM01H-CFV (2.8-12) 4K Ultra HD with 2.8-12mm lens

Ultra high resolution 4K

The SVPRO camera offers recording in resolution to 3840x2160 UHD 4K at 30 FPS. Equipped with Sony imx317 sensor (1 / 2.5 inch), provides excellent image quality, vibrant colors and clear details. Supports MJPG and Yuy2 formats and connection using USB 2.0 HS / FS.

A vamor-graduate lens with zoom

The camera has a 5-50 mm lens with a 10x optical zoom and an alternative 2.8-12 mm lens with a 5-fold optical zoom. Thanks to manual focus and fixing CS, it is ideal for a wide range of applications - from photography from close to far-shaped photos.

Easy installation and compatibility

The camera is compatible with Windows, Linux, Mac OS X, Android and Raspberry Pi. Equipped with 1/4 "mounting thread on the bottom, it allows easy installation on a tripod or a camera holder. Thanks to the Plug and Play function, it does not require drivers installation.

Excellent colors reproduction

UHD 4K camcorder provides realistic color reproduction, high image sharpness and the ability to adjust parameters such as brightness, contrast, saturation, gamma, white balance and exposure.

Wide application

The SVPRO camera works well during online meetings, streaming, in medicine, animal observations, scientific projects (eg telescopes), as well as in industrial equipment. Thanks to the possibility of connecting via USB and wide compatibility with software as zoom, OBS, YouTube and many more, it is versatile and convenient to use.

Speed of MJPEG frames:

3840x2160 @ 30fps, 2592x1944 @ 30fps, 2048x1536 @ 30fps, 1600x1200 @ 30fps, 1920x1080 @ 30fps, 1280x1024 @ 30fps 1280x960 @ 30fps, 1280x720 @ 30fps, 1024x768 @ 30fps, 800x600 @ 30fps, 640x480 @ 30fps, 320x240 @ 30fps

Categor speed YUY2:

3840x2160 @ 1fps, 2592x1944 @ 1fps, 2048x1536 @ 3fps, 1600x1200 @ 3fps, 1920x1080 @ 3fps, 1280x1024 @ 3fps 1280x960 @ 5fps, 1280x720 @ 5fps, 1024x768 @ 5fps, 800x600 @ 20fps, 640x480 @ 30fps, 320x240 @ 30fps maximum Resolution: 3840 (h) x2160 (V)

• Sensitivity: 1000mv / lux-sec
• Image area: 6100 ^ MX4524 ^ M
• Shutter: Rolling Shutter
• Relative lighting (sensor): 70%
• IR filter: 650 ± 10nm
