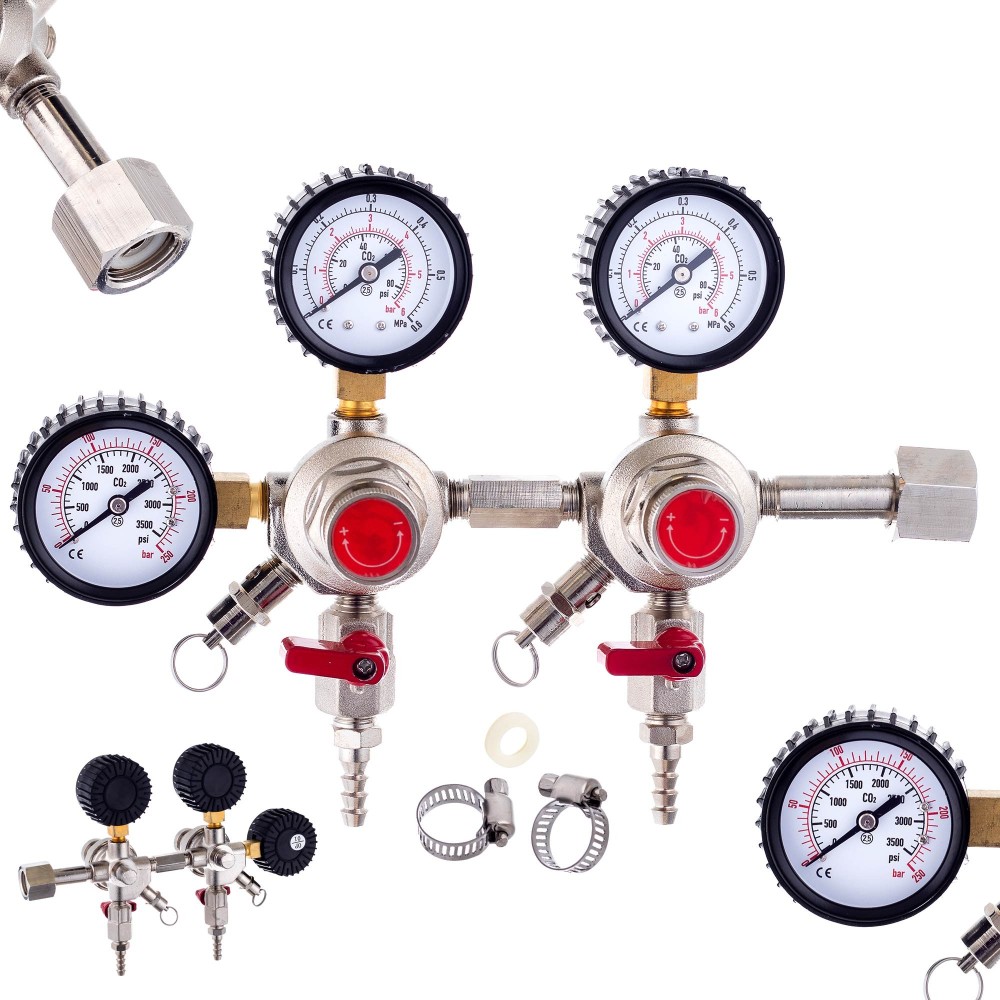

CO2 reducer for beer, wine, cyfru, water

▶ ️ Equipped with safety valve

▶ ️ two manometers

▶ ️ two circles

• High-quality reducer designed for use with CO2 gas.
• Perfect for use when making beer, wine, water or cider.
• It has three manometers, one pointing pressure in the cylinder, two showing the output pressure on each circuit separately.
• The safety valve starts to open at 4.5 bar and opens up to the pressure of 5bar.

Includes 2x Clamping band and 1x additional spare gasket for connection to the cylinder.

The reducer should be screwed into a gas cylinder with adjusting knobs set in a unscrewed position - unscrewed to the left. In another outface, the pressure from the cylinder may turn on the tips on the manometer out of the scale. Unscrewing the right knob should only take place after leaving the gas from the bottle.

• The reducer has a valve that allows adjustable gas adjustably without changing the main controller settings that the indications are shown on the manometer.
• A readable manometers are scored in the bar and Dog units.

Technical data:

• Gas type: Carbon dioxide (CO2)
• Thread on the inlet: W21.8 x 1/14 (Standard)
• Outlet: Hose stubs 8mm
• Max. inlet pressure 200 bar
• Max. outlet 4.5 bar - at 4.5 bars start to start a safety valve
• Max. flow 35 l / min
