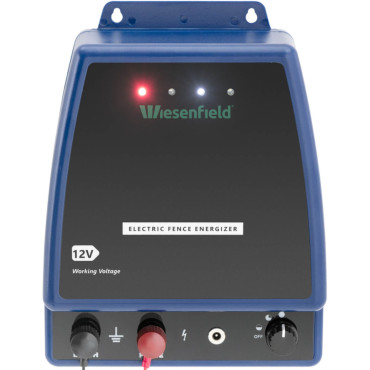

Electrical electrical electrical for fences Pasture 230/12 V 3,6-3.84 J 30 km

Manufacturer's code: 10280171
Wiesenfield Electrical It allows you to stop the grazing animals such as cows, goats, sheep and provide them with protection. The electricaler should be connected to a 230 V power source using the AC adapter to generate a value of discharge 3.6-3.84 J. Alternatively, the battery can be used as a power source 12 V. The device has a grounding and connecting cable with a length of 93 cm to the fence to be powered. This ensures peak voltage 8000-12000 V. The electrostator is intended for cows, sheep, donkeys, wild boars or pigs. You can use it for fences up to 30 km long. The duration of high voltage pulses is selected so that the animals move after touching but they did not hurt. Two Mounting holes They allow attaching the device to the wall or wooden pole. The shingle of the shake was made of durable plastic, protection class Ipx6 It allows protection against dust and water splashes.
Product features:

• - for electric fences up to 30 km long,
• - protects animals with a discharge energy of 3.6-3.84 J,
• - constantly under voltage through the external 230 V power source and a network power supply from 12 V,
• - Durable plastic housing and IPX6 protection class,
• - Mounting with mounting holes for hanging.

Technical parameters:

• - Model - -Knows Eph-360
• - catalog number - 10280171
• - article - New
• - Tension [V] - 230
• - power supply - Network + batteries
• - Discharge energy [J] - 3,6-3,84
• - Material - Plastic housing (ABS)
• - Output voltage [V] - 12
• - Line connecting the fence [cm] - 93
• - Pulse output circuit [V] - 8000-12000
• - Maximum length of the fence wire [km] - 30
• - IP protection degree - Ipx6
• - Connection cable with battery terminals [cm] - 95
• - Dimensions (DXSXW) [cm] - 25 x 18 x 9
• - weight [kg] - 1,4
• - Dimensions of shipment (DXSXW) [cm] - 27 x 27 x 10.5
• - shipping weight [kg] - 1,8

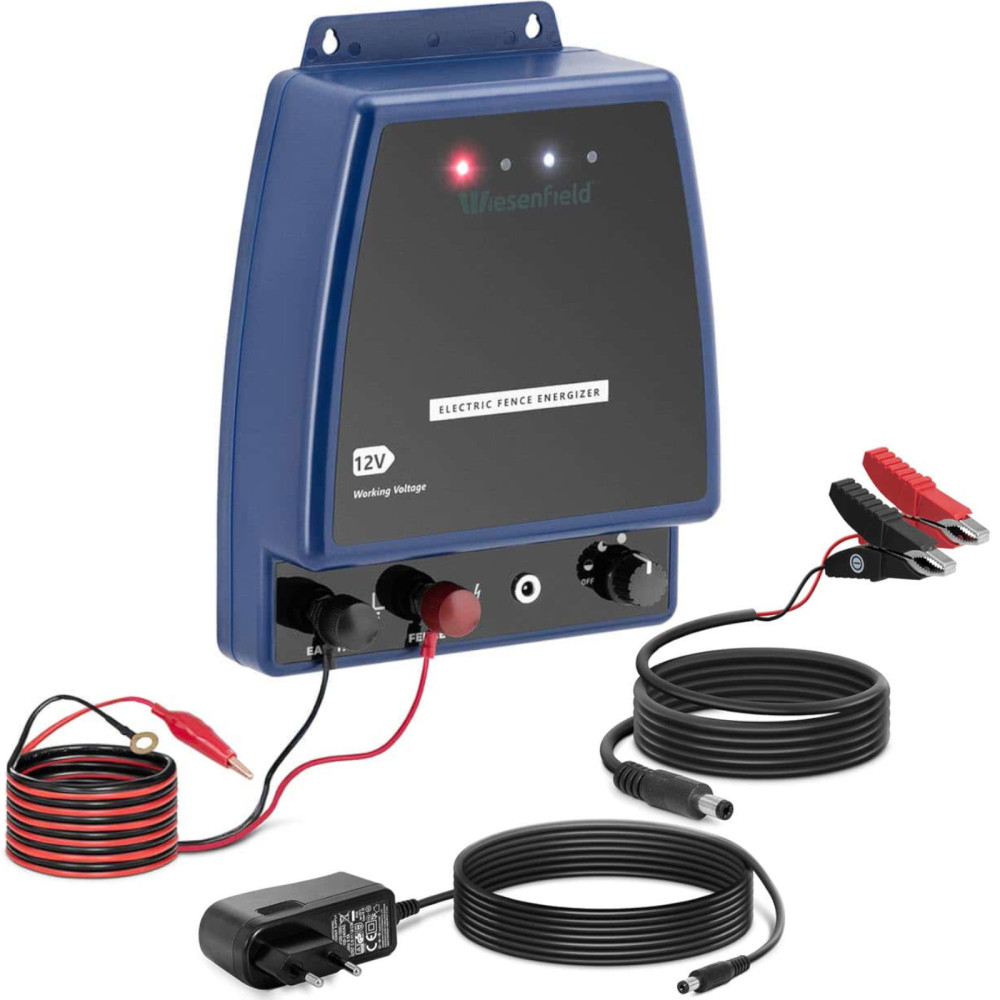

Included:

• - Electrical for a king

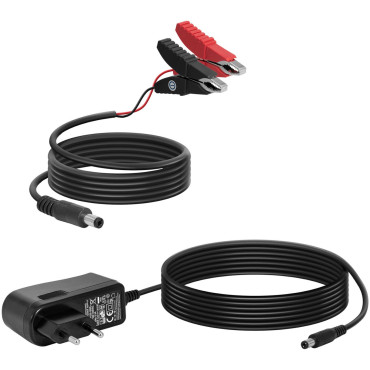

• - AC 12 V power supply
• - Cordless cables with terminals
• - grounding wire
• - Screws
• - User manual
