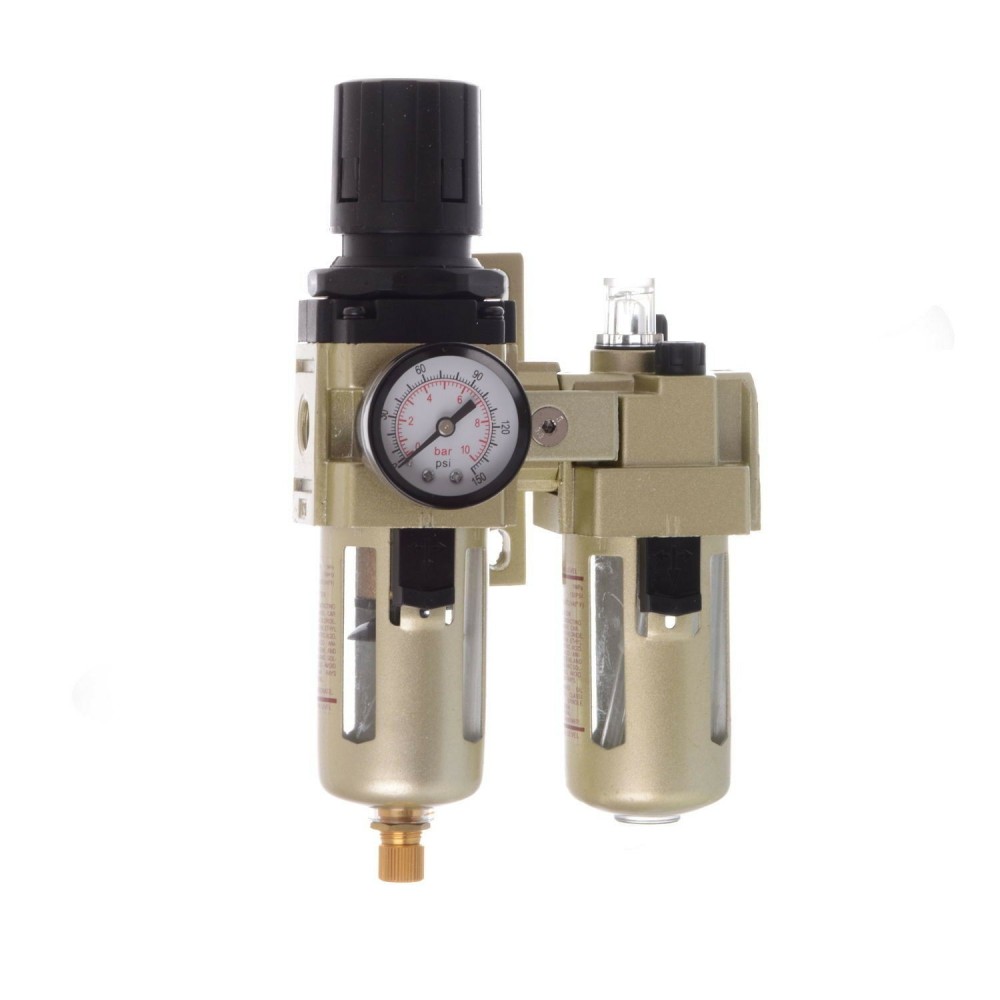

FILTER OF COMPRESS REDUMER AIR REDUKER PNEUMATIC NAILERS 1/4 "

Filter, Reducer, Naolejacz, Air preparation unit 1/4 "AC3010-02

The presented set is used to Comprehensive air preparation to work with pneumatic tools, starting from determining the operation pressure by removing water vapor and impurities to air supply oil fog Necessary for the proper functioning of the mechanisms.

The whole fits compressors with the output 1/4 "This is about 12mm.

Technical data:

• Height: 210 mm
• Width: 120mm
• Filtration: 0.04 mm
• Threads on both sides: 1/4 "(12-13 mm)
• Working / maximum pressure: 0-9.7 bar / 10 bar
• Maximum flow: 2000 l / min
• Tank capacity: 20 ml
• Adjustment of the amount of oil fed: so
• Hitch for screwing or hanging: so
• Manometer highlisted: 0-10 bar
