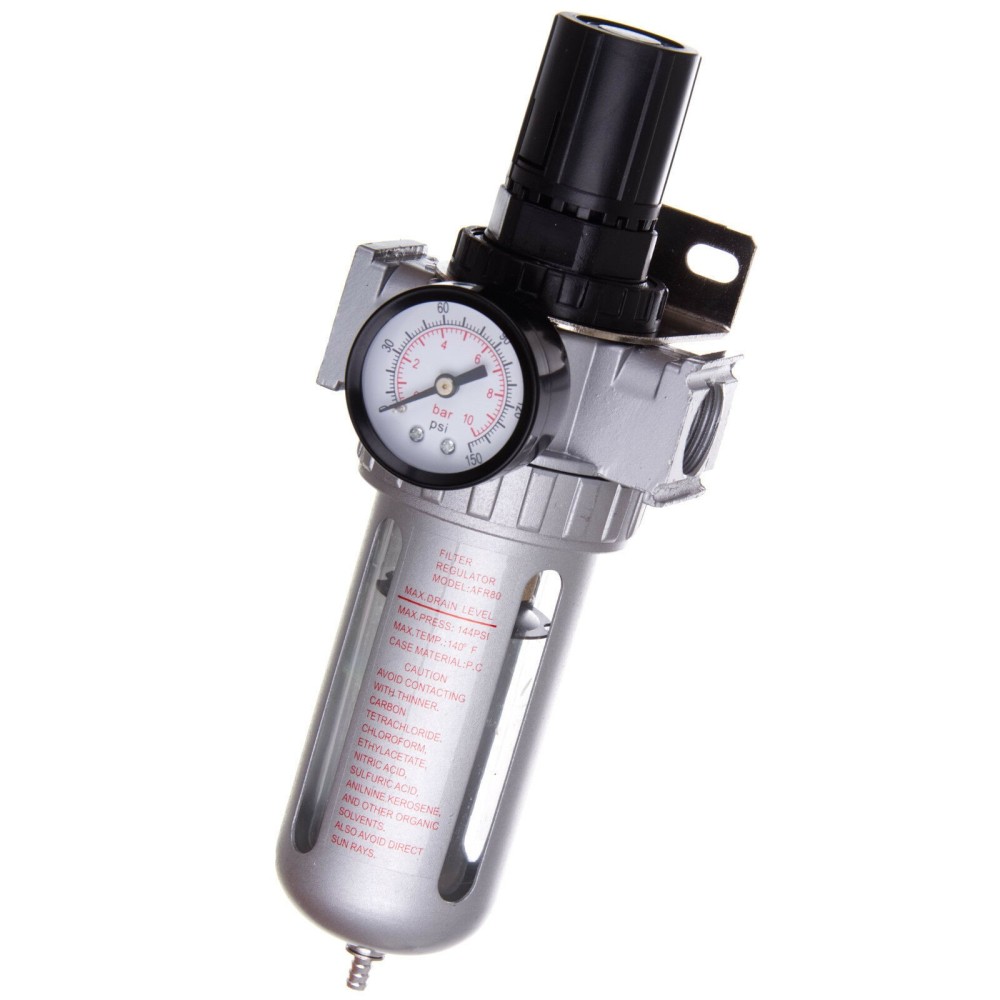

Air filter 40 micron Dehydrawer reducer for compressor 1/2 controller

Air filter, reduktor, dehydrider oil 40 microns AFR804-40

Filter with a reducer Used for drying and adjusting air pressure. It is an indispensable element of each pneumatic installation. Using this filter, you can prevent, inter alia; Rusting tools, drains during painting with paint pistols, hose damage etc. The filter does not require additional fasteners, it maintains on a nispy or a connector that will be attached to the compressor.

Emptying water consists in pulling the valve placed at the bottom of the filter. It also separates oil and other pollution. It is equipped with a metal tank cover. 40 microns filtration is 0.040 mm.

Technical data:

• Height: 220mm
• Width: 80mm
• Filtration: 0.040 mm
• Thread: 1/2 "(about 18-21 mm)
• Maximum inlet pressure: 10 bar
• Regulation range: 0.5 to 8.5 bar
• Material of the threaded part: aluminum
• Maximum flow: 4000 l / min
• Tank capacity: 80 ml
• Weight about: 0.3 kg
