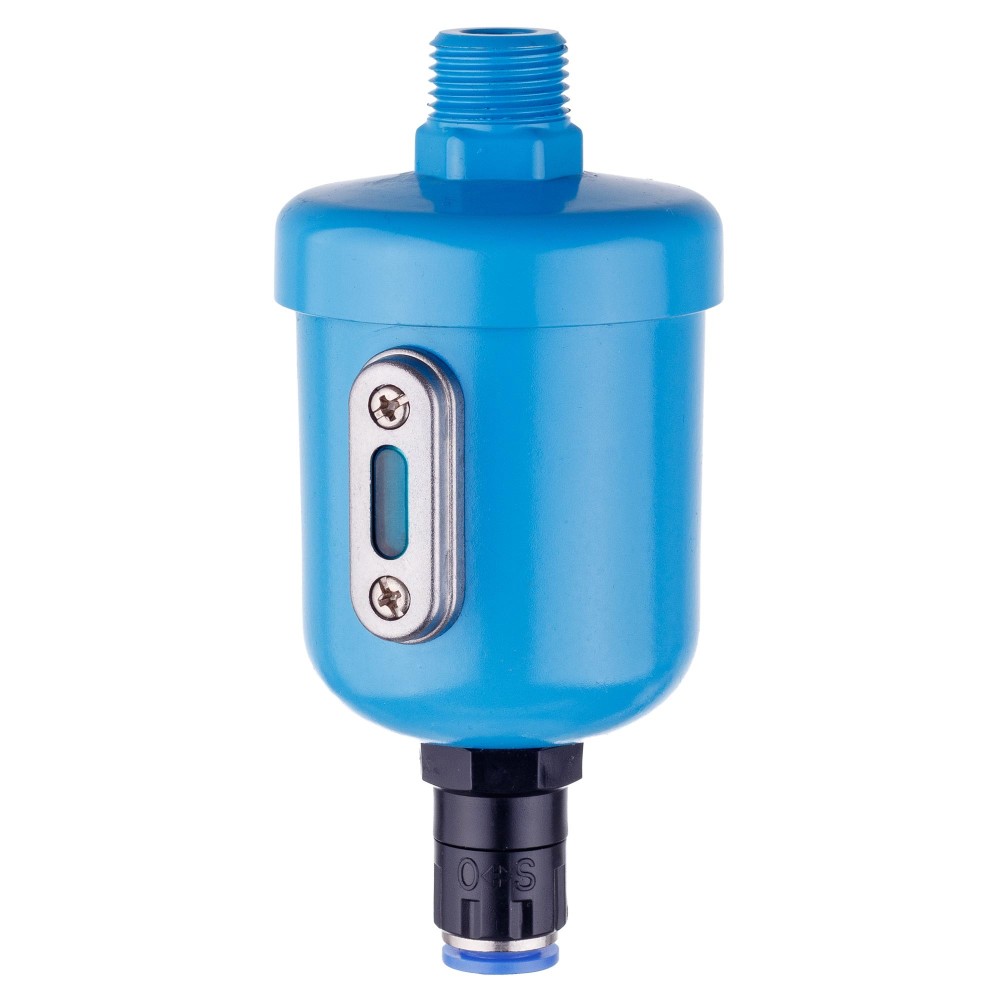

Floatous atomic condensate drain 1/2 "

⭐⭐⭐⭐⭐

▶ ️ The device is used for automatic Removal of water and oil from low points of pneumatic installations.

▶ ️ can be mounted m.in. At the bottom of water separators and the lowest points of pneumatic installations.

▶ ️ particularly useful In places where manual water draining is uncomfortable or difficult - eg in high, low or hard-to-reach places.

▶ ️ automatic trigger prevents forgetting about emptying and protects Compressed air before re-contamination of the condensate.

• The device consists of the upper cover, an aluminum cup and water draining mechanism. The upper cover is connected to the place from which the condensate should be discharged.
• When there is no air pressure inside the cup - the float falls under your own weight, closing the hole in the cover. The water passes through the filter and is discharged outside.
• When a pressure above 1.5bar - the piston will appear in the mug under the pressure pressing the seal, closing the drain.
• During the work, when the water level in a cup increases, the swimmer floats. Thanks to its lever, its strength is reinforced, which raises the valve cover and opens the outflow. The air pressure in the chamber helps the piston to fall and the water is quickly removed.
• When the water level is falling again, the float falls, closes the drain, and the pressure in the upper chamber is considered through a small hole, restoring the device to the rest.

Technical data:

• Thread on the cover: 1/2 "
• Connection of the discharge hose: 10mm Tekalan
• Working range: 1,5 to 10 bar pressure
• Max condensate and ambient temperature: from 5 to 60 ° C
