Air Filter Accurate 0,5UM 2UM 5UM 1/2 "DESOLATING Paint Reducer

Air preparation station

▶ ️ 3 Filters with 5um + 2UM + 05 filtration

▶ ️ set with a reducer

⭐⭐⭐⭐⭐

✅ A professional filter set was created for demanding usersfor which the cleanliness and dryness of the air is the basis for perfect varnishing.

✅ Thanks Three-stage filtration Provides air free from solid particles, oil and moisture.

Main advantages of the set:

✔ Three-stage filtration - removes water, oil and impurities up to 0.05 μm.

✔ Dry and air cleanliness - a guarantee of ideal conditions for painting and painting.

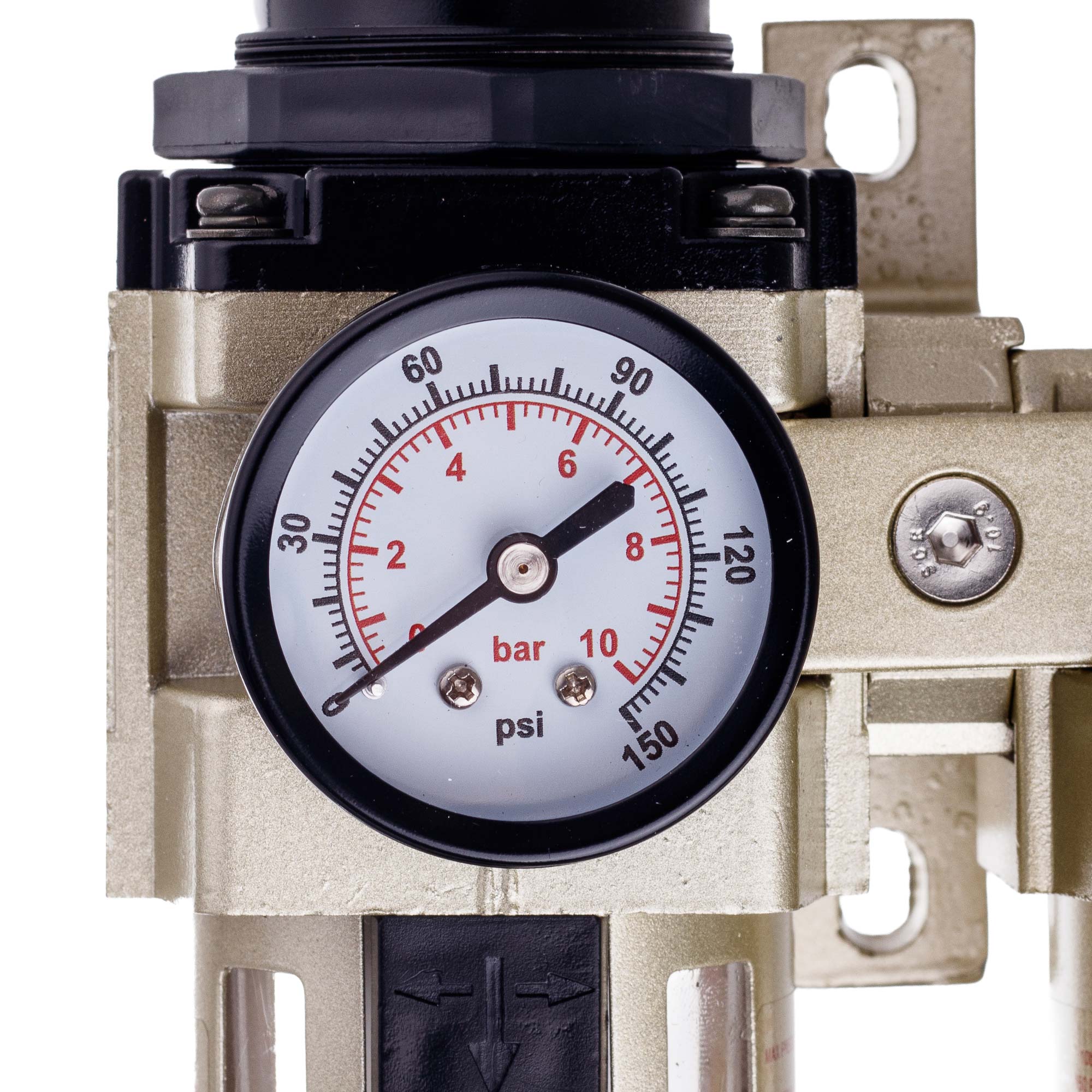

✔ Built-in pressure reducer - a readable manometer in bars and a dog.

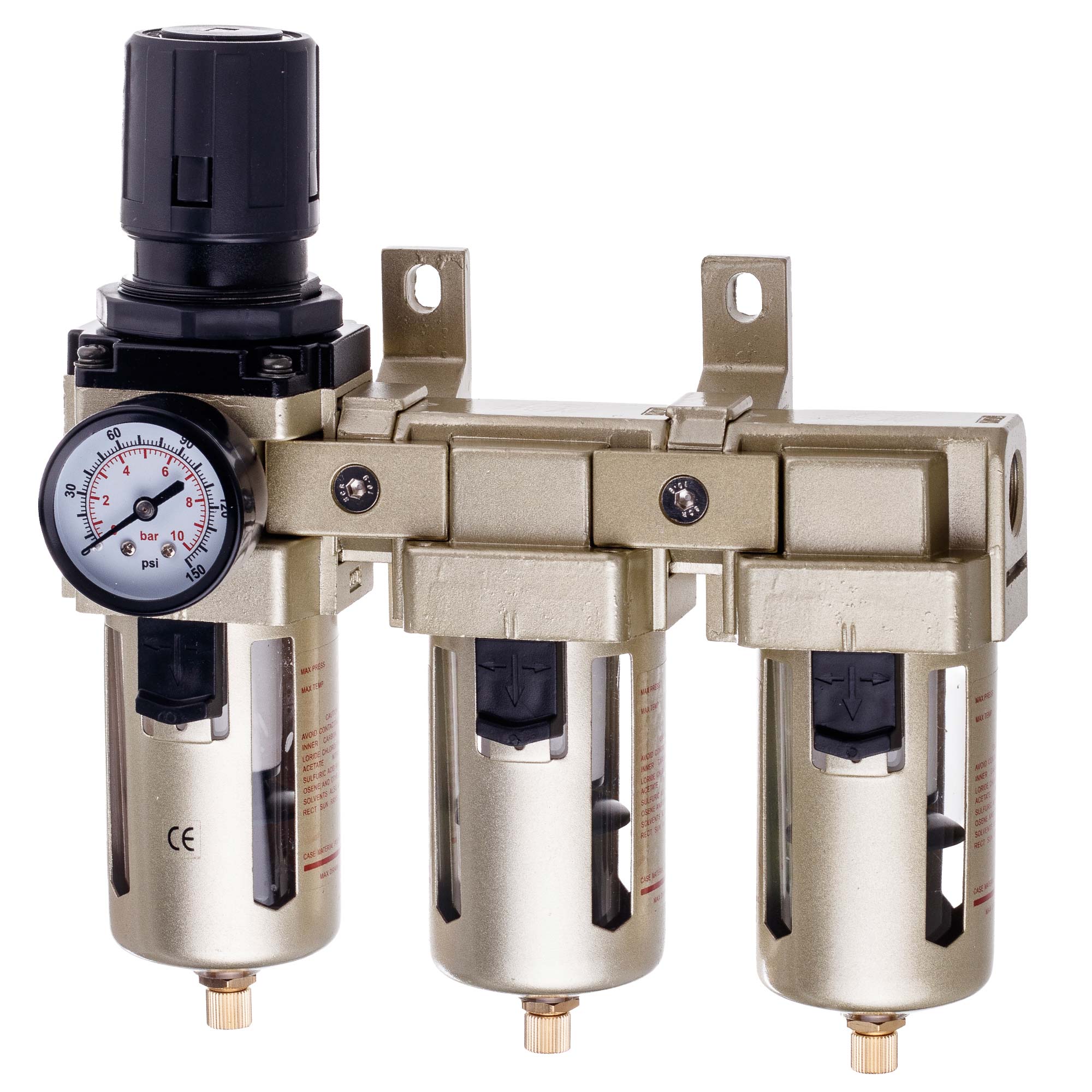

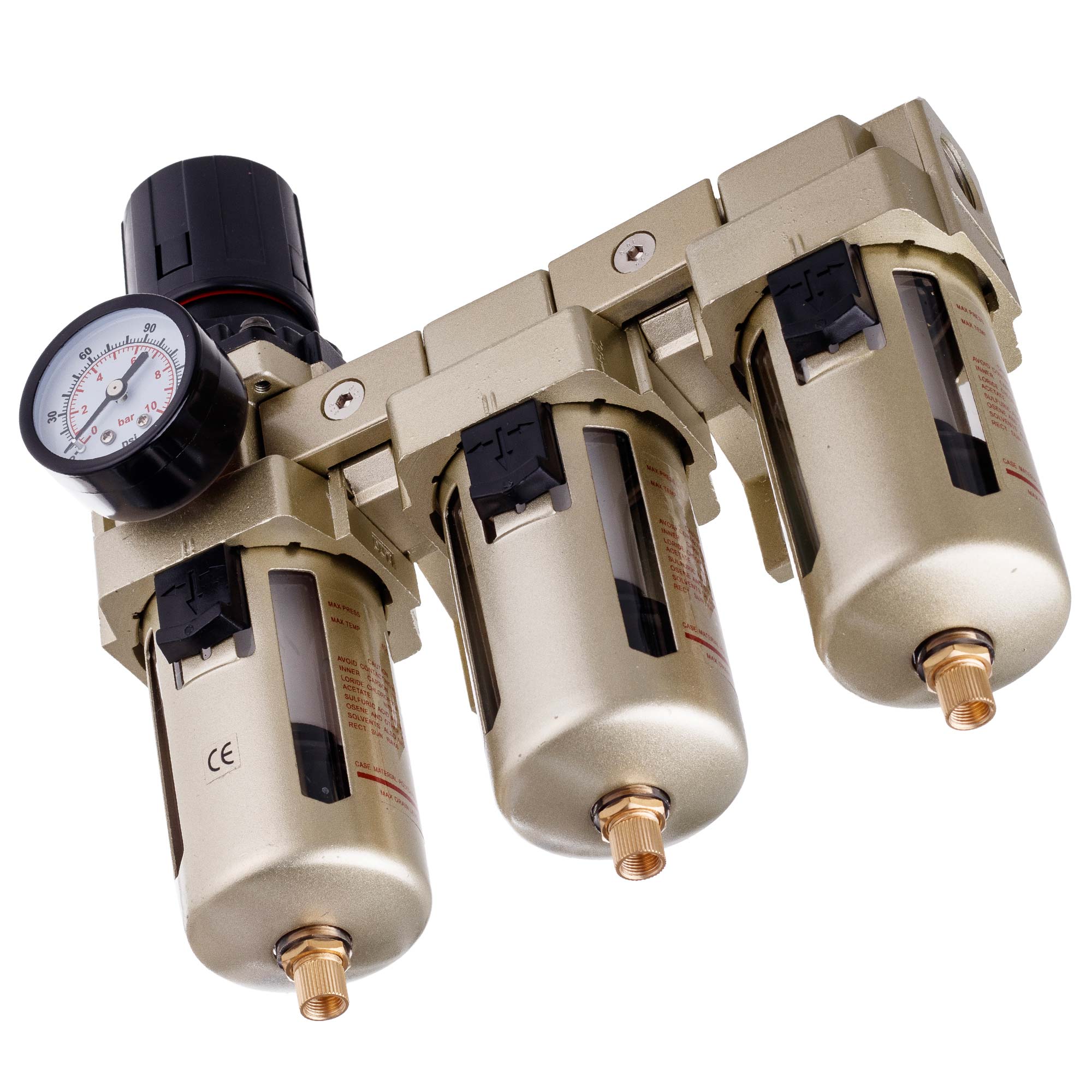

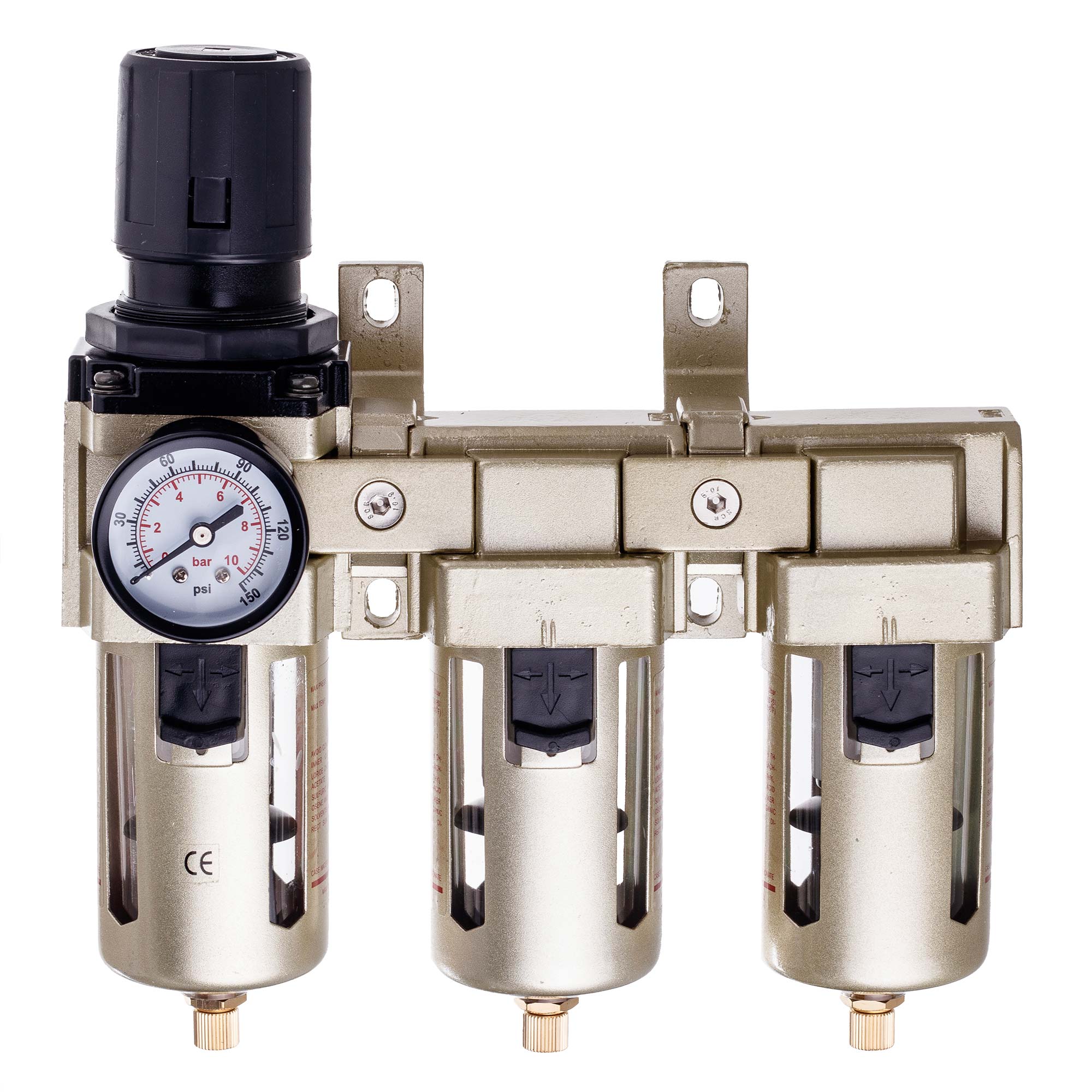

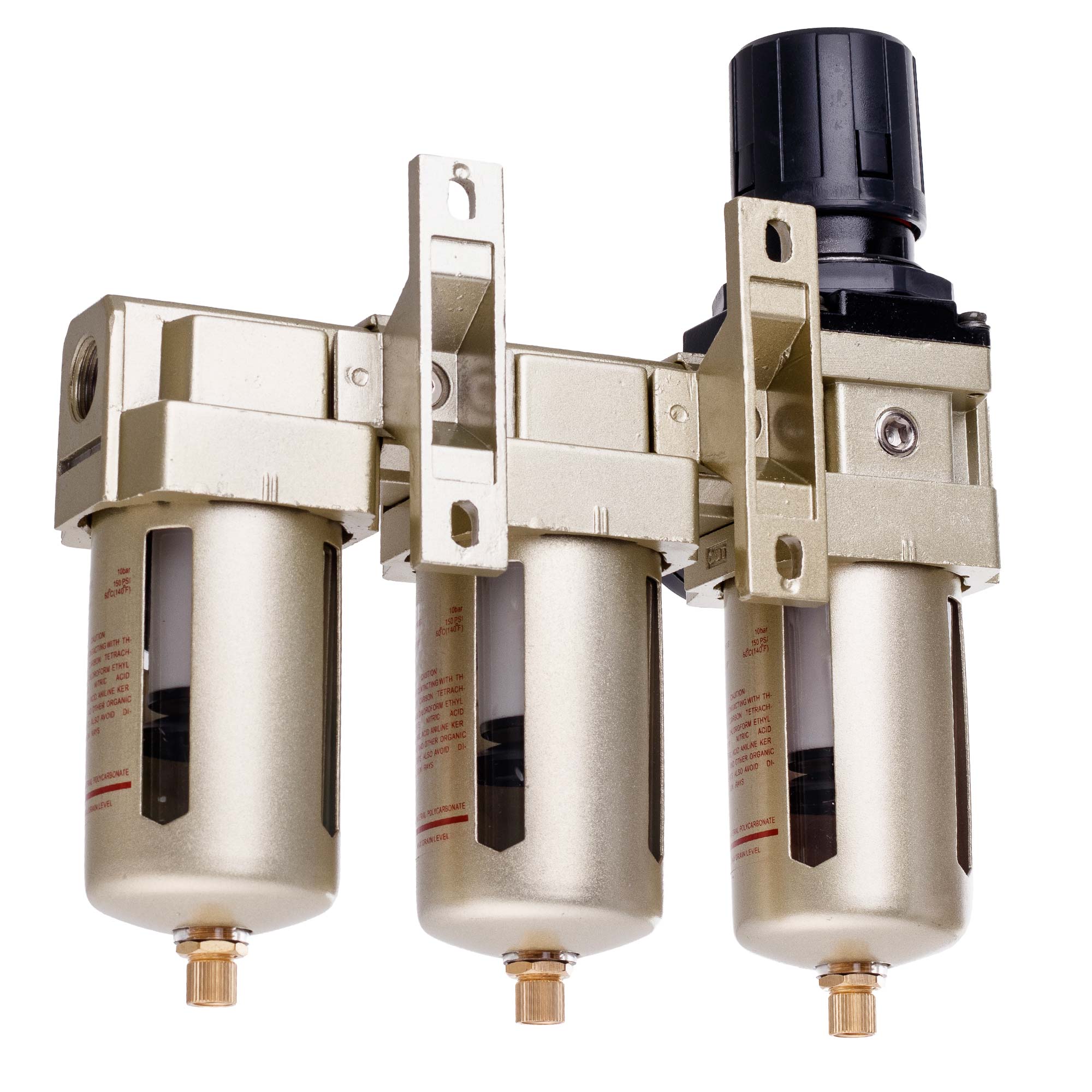

Construction of the set:

▶ ️ Pre-filter with pressure reducer - 5 μm: Removes water, oil and solid particles up to 5 microns. Equipped with an automatic condensate trigger. Spare removable cartridge included.

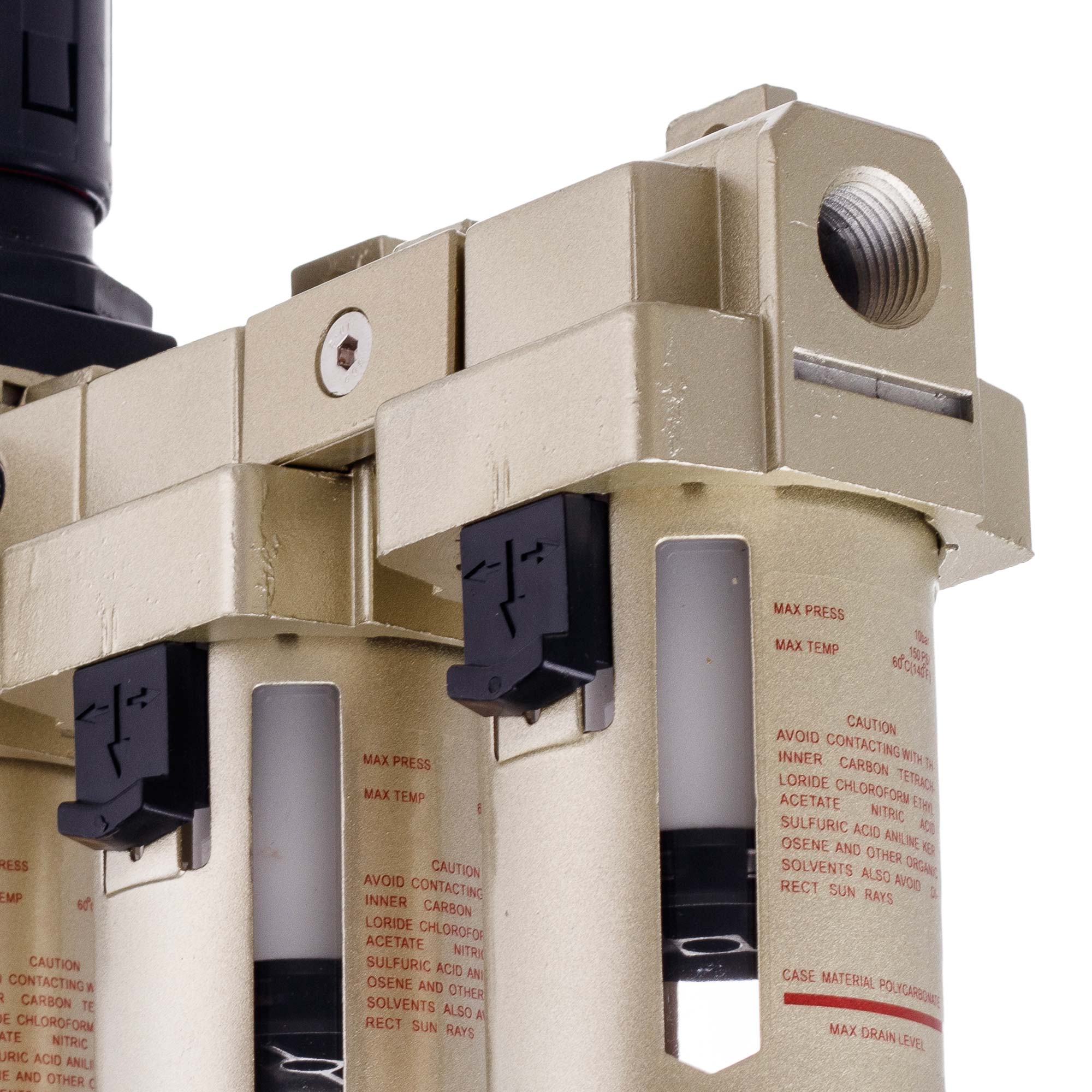

▶ ️ Accurate filter - 2 μm: It stops finer impurities that have been passed through the previous filter.

▶ ️ Final filter - 0.5 μm: The most accurate filtration: removes solid and oil pair to 0.5 μm.

Application:

• Automotive and industrial painters
• Body and paint workshops
• Production lines and places requiring perfectly clean air
• Professional painting and spraying works

Technical data:

• Connection: 1/2 "(about 19mm internal)
• Filtration: 5 μm + 2 μm + 0.5 μm
• Pressure reducer: So
• Regulation range: 0.5 to 8.3 bar
• Maximum inlet pressure: 10 bar
• Nominal flow: 4000 l / min
