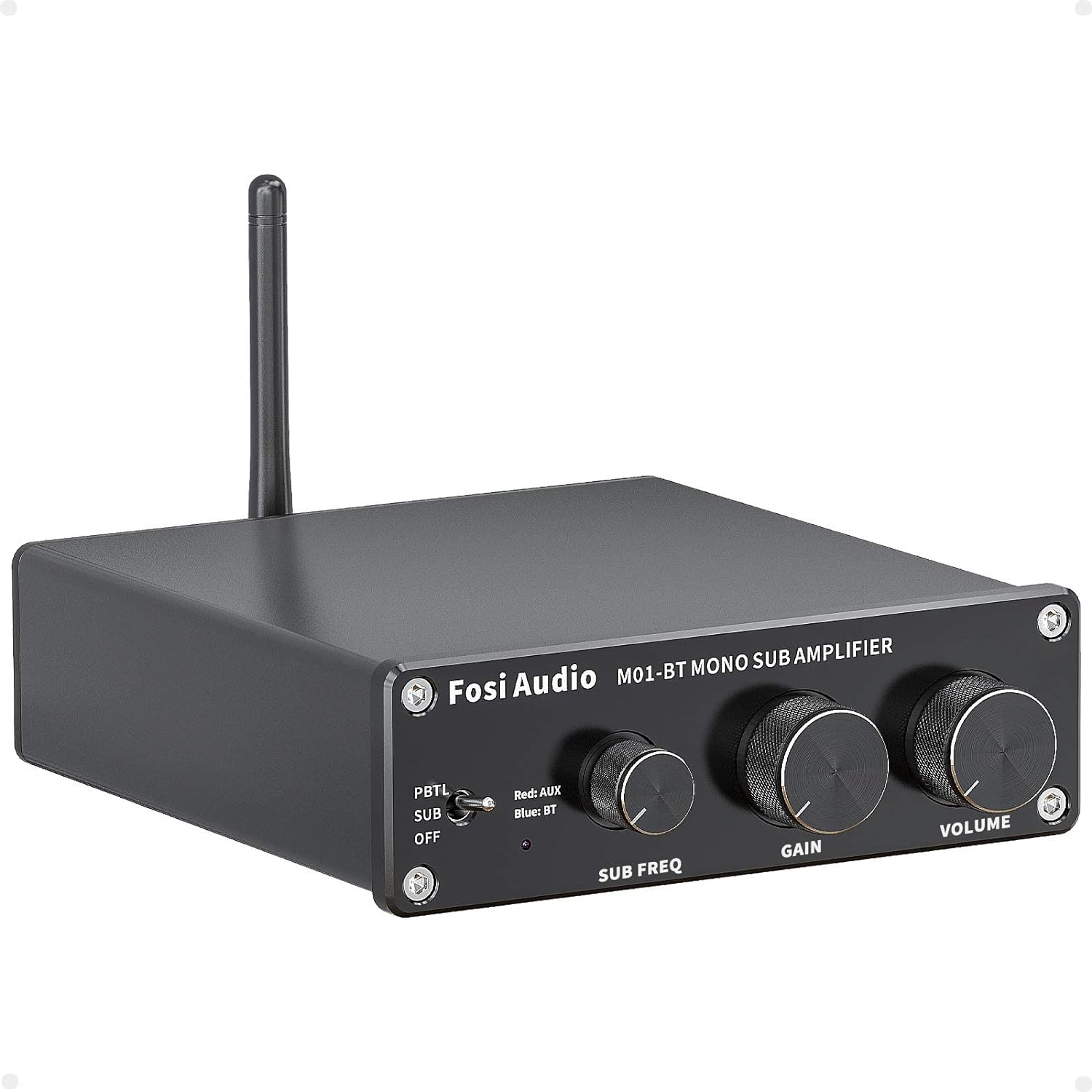

Subwoofer Amplifier Fosi Audio M01-BT Bluetooth 5.0 300W

Improved Design: adds Bluetooth to the Subwoofer amplifier. M01-BT supports Bluetooth and RCA input, which allows you to drive most home loudspeakers, passive subwoofers and active subwoofers. (Note: M01-BT is not suitable for active speakers). Easy building a simple audio system with M01-BT.

Compact class D Audio Audio: SUB M01-BT amplifier uses a high-performance chip STMICROLECTRONICS TDA7498E, maximum output power to 300 watts.

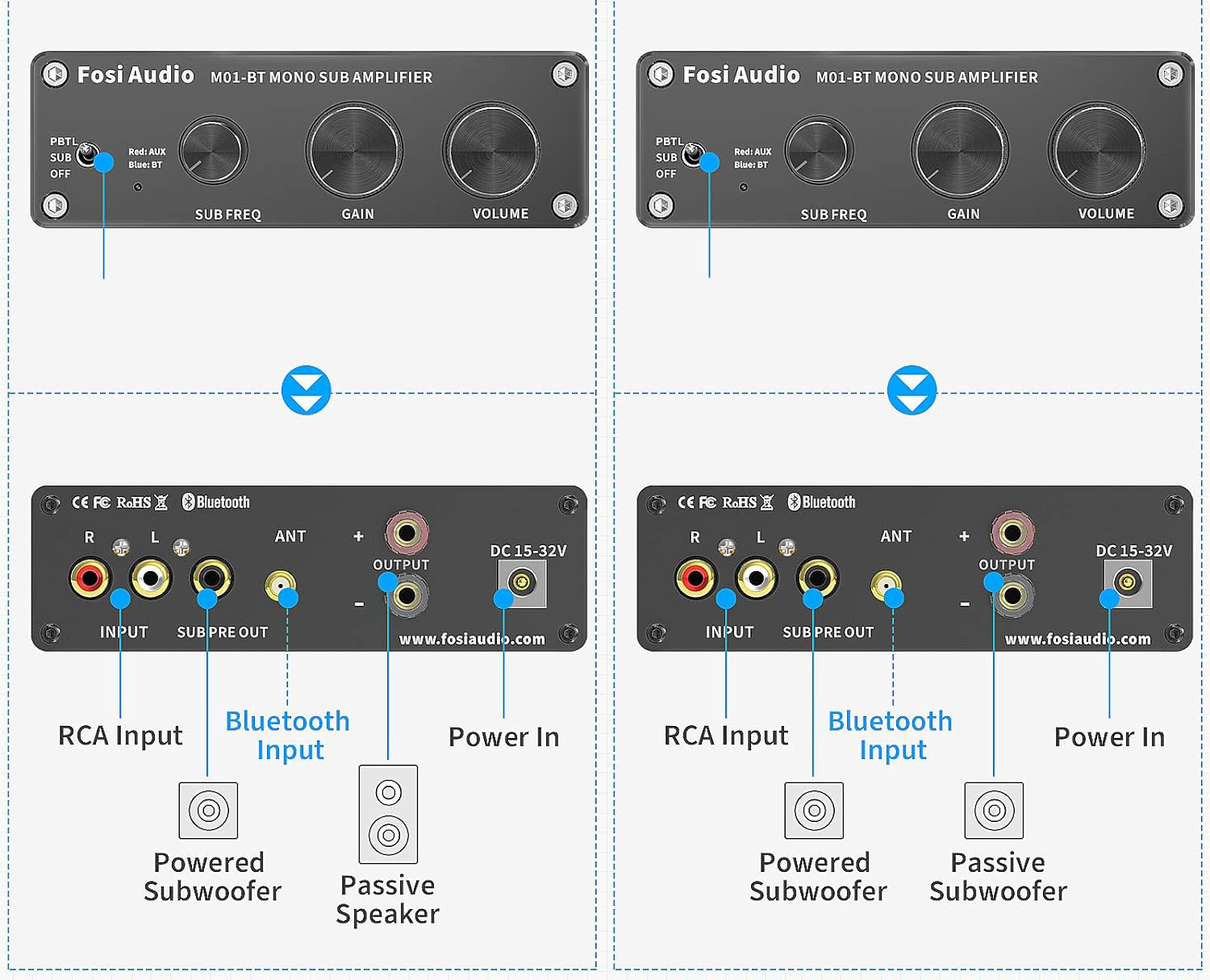

Switching to PBTL (as a full-range mono amplifier): You can use banana plugs or bare wires to connect the subwoofer to M01-BT, using a RCA cable to connect the active subwoofer.

Switching to SUB (as a subwoofer amplifier): You can use banana plugs or bare wires to connect a subwoofer to M01-BT, using a RCA cable to connect the active subwoofer.

What you get: M01-BT X1 amplifier, Bluetooth X1 antenna, Operating instructions X1, 24V / 4.5A X1 power supply, X1 power cable.

• 2-channel amplifier: BT10A, BT20A, TB10A, TB10D, V1.0B, V1.0G, TDA7498E, ZK-1002, ZK-502T.
• 2.1-channel amplifier: BT30D, BT30D PRO, BL20A, BL20C, ZK-TB21.
• DAC: Q4, K5 PRO, DS1, DS2.
• DAC amplifier: PH04, DA2120A, DA2120C.
• Subwoofer amplifier: TP-02, M01-BT, M02, M03, M04.
• PRONONE PRONGO: BOX X1, BOX X2, BOX X3, BOX X4.
• Lamp preamplifier: P1.
• Lamping amplifier: T20, T20X, P2.
• AB amplifier: T3.
• Power supply: 24V / 4.5A
• Input voltage range: 15V-32V
• End Impedance: 2 - 8 Ohm
• RMS power: RMS 220 watts @ 4Ω, RMS 150 watts @ 8Ω
• Range of full-range frequency response: 20Hz-20kHz (3DB)
• Bass frequency range: 20-200Hz
• Input sensitivity: ≤ 0.2mV
• SNR: ≥ 102dB
• THD: ≤0.05%
