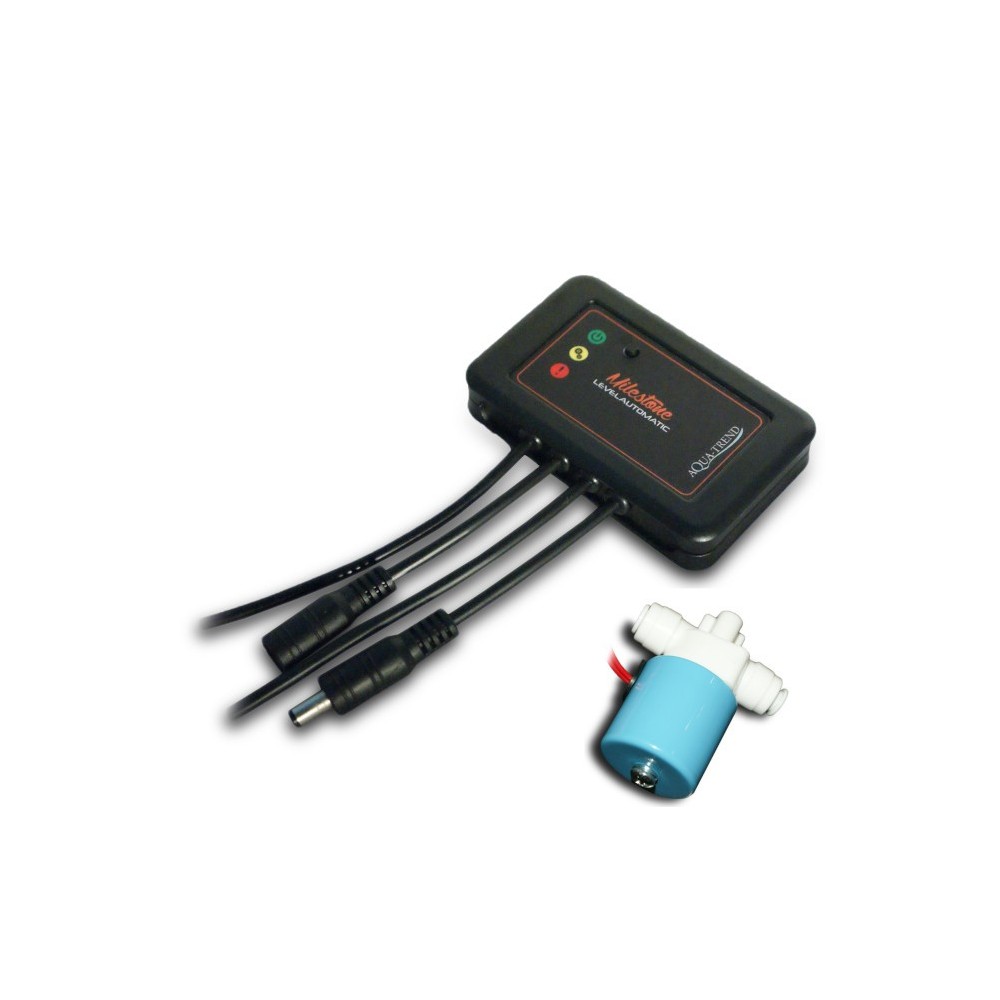

Automatic billiLautomatic Milestone + Electrofief

Levelautomatic Milestone.

Intelligent, microprocessor device designed to control and supplement the water level in aquariums.

The device occurs in two versions: with DC pump or DC solenoid valve

The device monitors the water level in the tank using a precise optical sensor.

The device is equipped with a reed emergency sensor which blocks the device completely.

The device is equipped with a bilateral hysteresis minimizing the frequency of switching on the pump / electrovival

Operating modes:

The device allows the evaporated water evaporated by switching on the DC pump, or DC electrical electrical electrical electrical electrical electrical electrical transport.

The device is pre-configured for cooperation with a pump or solenoid valve, there is a possibility of switching between work modes. To switch the operating mode, keeping the button on the Control Panel, turn on the power, after 5 seconds there are three beeps if the device is configured to work with the pump or six beeps if the device is configured to cooperate With the solenoid valve, repeating the action will switch the operating mode.

The device is equipped with a unique water detection system when working with a DC pump. In order for this system to work properly, the well-based bill should be calibrated in its right place, with the correct water lifting height through the pump.

Calibration : Disconnect the power, press and hold the button, turn on the power and after 1 second Release the button - the pump will start to press water by examining the load on specific operating conditions, after 5 seconds the calibration process ends, from that moment Unversion of the pump rotor will result in alarm and turn off the relay.

During the usual operation of the device, the button is used for manual ON / OFF pump / solenoid valve.

Alarms and security.

InRuling is equipped with a range of security maximizing the safety of use.

- protection against the dry pump (only in the pump mode) When the lack of water is detected, the pump is turned off and alarm is switched on, the alarm can be deleted with the button

- The emergency reedside sensor placed above the optical sensor has a supervisory function, has a task to work if the optical sensor does not work, its activation causes the critical alarm to restore the device to turn off the device.

- detection of installation stretching, the function works in both operating modes, if the device fails to complete the water loss at a specified time, it will find that the outflow is too fast than natural evaporation and probably water escapes from circulation in an unnatural way, Alarm and pump / electrical electrovaline are activated.

- the operating time limit of the pump / solenoid valve, if the optical and re-functional sensor does not work, the device is equipped with a temporary pump / solenoid limit limit, after a certain time a pump or electrofitage will be disconnected

- detection of sensor damage, the device detects electronic damage to the optical sensor and blocks the pump / electrical operation

Mode with the solenoid valve.

The device is factory configured to work with the solenoid valve
