Manufacturer's code:

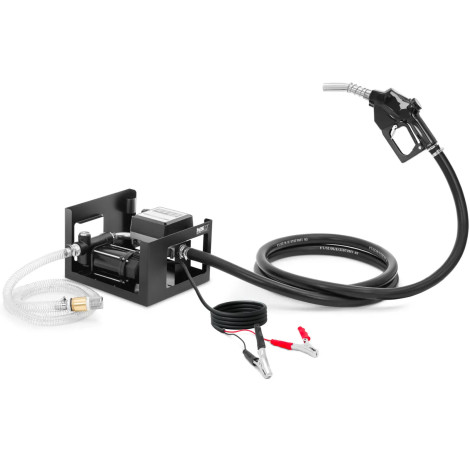

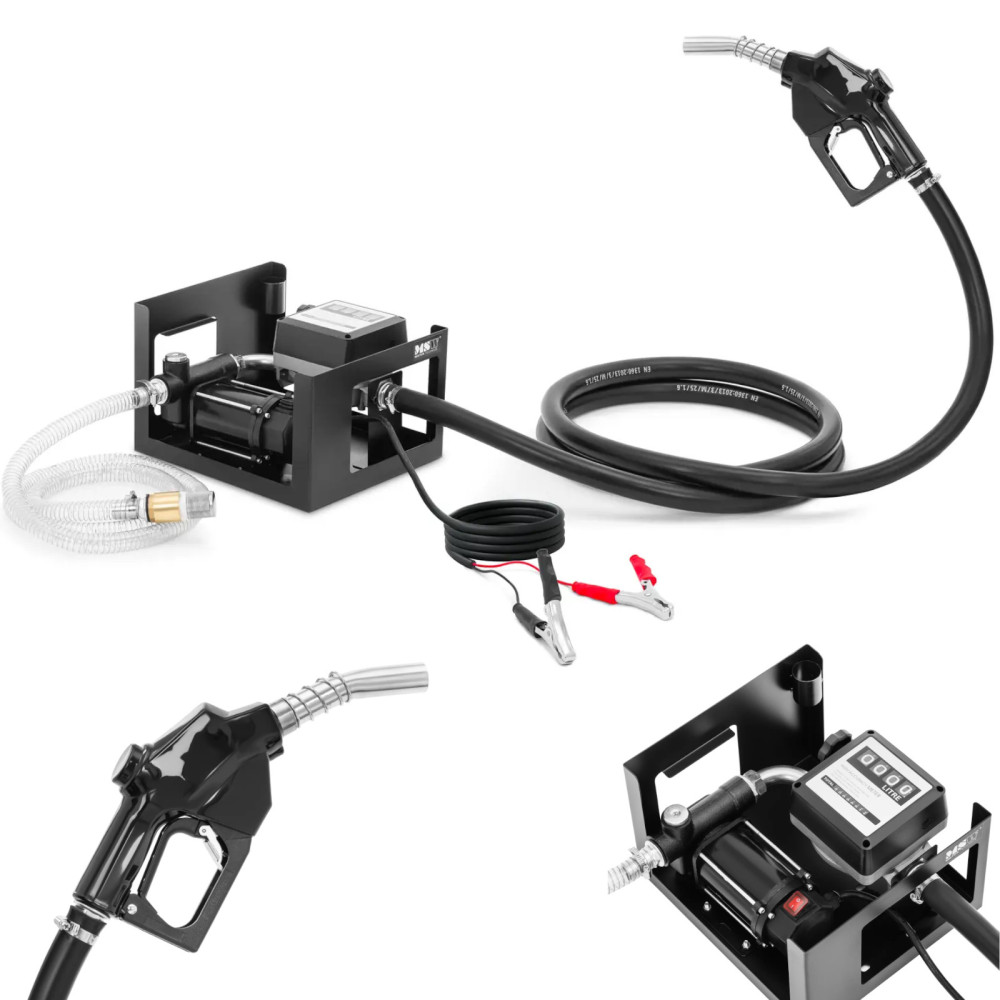

10062121Pump for diesel with a brand counter
MSW It offers a mobile solution if you need to transport diesel or kerosene oil or remove them from the tank.
MINI CPN Fits both for a workshop or gas station as well as to the refueling point of agricultural vehicles. Effective fuel pump engine
12 V It achieves efficiency on level
72 l / minThat's why you can refuel the vehicle quickly and reliably. Pumping to another tank also does not require exercise. Oil pump has
Suction height 2 m and
Distribution height 14 m.
Product features: - - Flow 72 l / min thanks to a strong engine by 3800 rpm,
- - suitable for refueling passenger cars, trucks, agricultural and construction machinery,
- - can work dry for a long time without damage,
- - Easy service thanks to self-emosure pump,
- - A compact format and a small weight allow flexible work in different places.
Technical parameters: - - catalog number - 10062121
- - article - New
- - Model - MSW-Opc-72-dc
- - Material - Cast iron, Steel
- - Adapter input diameter [mm] - 25.4
- - Adapter output diameter [mm] - 25.4
- - Flow [l/min] - 72
- - IP protection degree - Ipx4
- - Maximum submersion depth [m] - 2
- - Maximum pumping height [m] - 14
- - Power cord [m] - 1,95
- - Tension [V] - 12
- - power [W] - 200/360
- - power [W] - 200/360
- - Number of adapters [szt.] - 4
- - rotational speed [obr./min] - 3800
- - length of the suction line [m] - 2
- - Dimensions (DXSXW) - 34.5 x 30.5 x 23.2 cm
- - weight - 16.95 kg
- - Dimensions of shipment (DXSXW) - 44 x 40 x 46.5 cm
- - shipping weight - 19.5 kg
Included: - - oil pump
- - filter
- - 4 adapters
- - 4 Oring
- - 2 snakes
- - User manual
