Manual lever pump for pressing presses. 13020 12 l / min.

Manufacturer's code: 4582

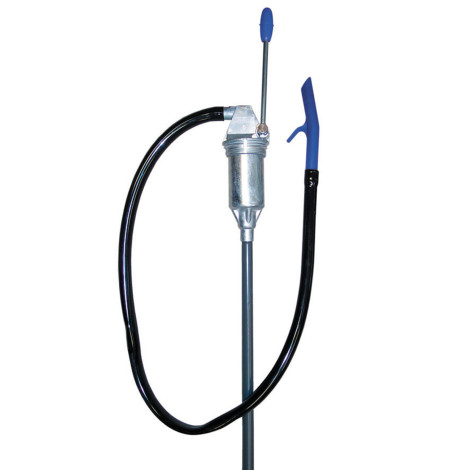

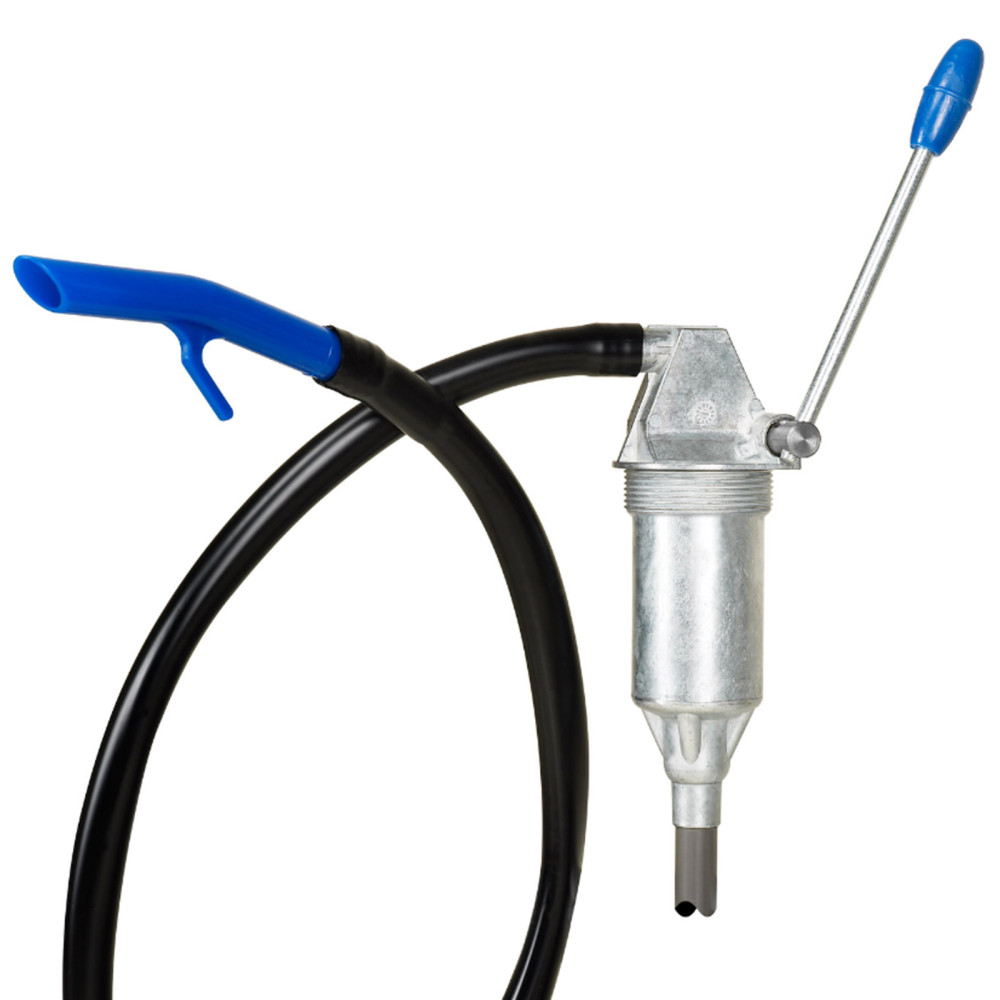

Handy manual lever bachelor pump from 60 to 220 Liters attached to the flange barrel with a diameter of 2 '' inches. Durable construction will provide long-term and trouble-free use. A wide range of applications for liquids, oils, fuels and other non-aggressive media.
The most important advantages:

• - Durable and solid construction
• - Easy installation on the barrel
• - Easy without exercise service

Purpose for the pump to:

• - Oles for Sae 50 Self-framing
• - non-aggressive media
• - undiluted antisms
• - Fuel oil
• - diesel
• - crude oil

Specification

• - Model: Pressol 13 020
• - Efficiency of stamping: 0.12 L / SKOK
• - Powing efficiency at 60 jumps / min: approx. 7 l / min
• - Embossed Media: Sae 50 oils
• - Application: barrels up to 60/200220 L
• - PVC distribution hose: 1000 mm with plastic outlet
• - length of the suction tube: 1200 mm
• - Belly screw: G 2'a
• - pump housing: pressure casting zinc impact resistant
• - Gaskets: NBR (BUNA N)
• - Pump weight: 0.96 kg
• - Package dimensions (DLXSZXW): 590 x 100 x 90 mm
• - Weight with packaging: 1.1 kg

Included:
- Lever pump for presses Pressol 13 020
- a two-piece suction tube with the possibility of cutting on length
- 100cm outlet hose
- Plastic tip of the hose with a hook
