Hydraulic shaft for repairing body 4 t - set

Manufacturer number: MSW 10060933
A hydraulic shaft with a pump is a professional brand tool MSW Designed for automotive workshops and websites and private garages. It works well during the renovation of the body of passenger cars, delivery and trucks. Model MSW-KP-4 is intended for lifting and processing of the car body (bending, straightening and shaking sheet).
The maximum The loading of the rozpierak reaches up to 4 tons, so that the renovation works do even large vehicles is safe, A High quality and solid construction ensure a long service life. In addition, the possibility of adjusting significantly increases the functionality of the device. The engine's piston can be lifted in the range from 270 to 390 mm, A Four pipe extensions enable precise adjustment to the user's needs.
In order to increase the convenience of use, the model MSW-Kp-4 has been Equipped with an automatic feed springWhich tool always returns to the starting position. In addition, the set is characterized by very easy assembly, which is precisely described in the included operating instructions.
Working safety with the rozpierak was increased by automatically overloading system, which Effectively prevents damage to the actuators and other elements. The whole is in a practical case that facilitates storage and protects the equipment during transport. Product features:

• - Performance - lifting up to 4 tons,
• - Precision - adjustment of lifting height in the range from 0 to 120 mm,
• - Safety - overload protection system,
• - Convenience - a set of piping extensions,
• - Multi-tasking - set equipped with tools necessary to carry out most conservation works,
• - Mobility - a metal suitcase in a set,
• - Strength - High quality.

Technical parameters:

• - Model - MSW-Kp-4
• - catalog number - 10060933
• - article - New
• - Maximum load - 4 t
• - Piston piston stroke - 120 mm
• - Minimum position height of the actuator piston - 270 mm
• - Maximum position of the actuator piston - 390 mm
• - Dimensions (DXSXW) - 54.5 x 23 x 16 cm
• - weight - 16 kg
• - Dimensions of shipment (DXSXW) - 59 x 26 x 20,5 cm
• - shipping weight - 16.6 kg

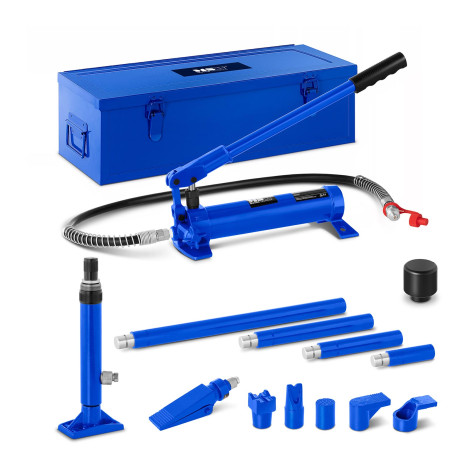

Included:

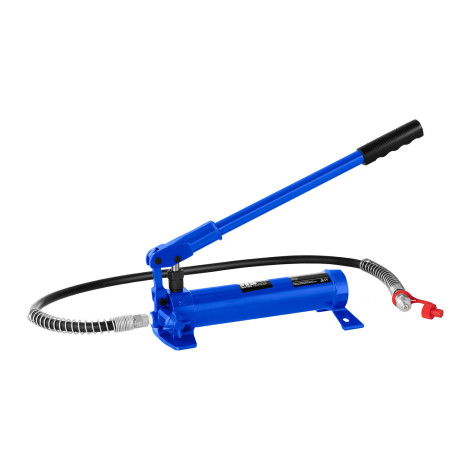

• - hydraulic pump
• - actuator
• - shell
• - caps:
  • - Serrated nut Ø35 x 48 mm
  • - Movable connection Ø22 x 72 mm
  • - Rubber head Ø54 x 60 mm
  • - M38x1,5x25 mm stand
  • - Disc head Ø33 x 46 mm
  • - 39x39x59 mm side head
  • - Ø33 x 80 mm wedge
• - pipe extensions (Ø29 x 430 mm, Ø29 x 210 mm, Ø29 x 140 mm, Ø29 x 80 mm) - 4 pcs.
• - Metal case
• - EN statement
