TESTER Diagnostic meter for LCD 12/24 V batteries

Manufacturer's code: 10062388
Brand battery tester MSW Provides quick and clear measurement results. Using a handy device, you can check the batteries 12 V and 24 V In cars, motorcycles and scooters. The device is supported by just a few buttons. In addition, the battery meter is protected against short-circuit and improper polarity. The meter provides a quick, clear and accurate result in just 5 seconds. The values are automatically saved and compared. The meter checks: Charge state (SOC), the possibility of cold start (CCA), voltage, internal resistance, charging and starting systems. The tester checks the battery status using a modern conductivity measurement, not as in conventional methods in which the battery is unloaded by applying the load resistor. The digital battery meter emits a series of voltage pulses and measures the flow flow flowing in response. This gives quick and reliable information on the remaining capacity and capacity of battery. The device has Sae, CCA, BCI, DIN, EN, IEC, GB, CA / MCA and JIS. The battery tester has 2 quick functions. Without pressing the key goes to voltmeter and fast test. The battery meter also displays results in English, German, Spanish, French, Dutch and Italian.
Product features:

• - tests 12 V and 24 V batteries from cars, motorcycles or scooters,
• - the test with all results is performed in just 5 seconds,
• - safely measures capacities from 40 to 200 Ah,
• - convenience, legible LCD display and simple operation using several buttons,
• - The protective function prevents damage caused by shortages and incorrect polarity.

Technical parameters:

• - catalog number - 10062388
• - article - New
• - Model - MSW-Blt-2
• - Material - ABS, PVC, PC, Nickel-plated iron, Silica gel
• - Possibility of cold start (CCA) - 100-2000
• - DIN scope - 100-1400
• - Range EN - 100-2000
• - IEC range - 100-1400
• - Maximum voltage value [V] - 30

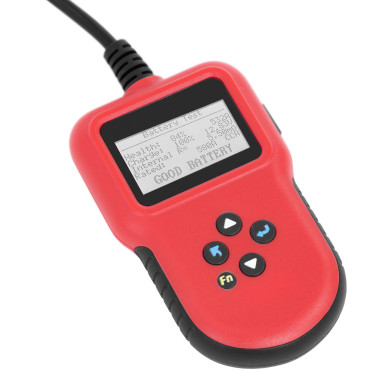

• - Display - LCD
• - Optional battery standards - CCA / BCI / CA / MCA / EN / SAE / IEC / DIN / JIS / GB
• - Battery aging (SOH) - 0-100%
• - voltage range [V] - 8-30
• - Duration of the test - OK. 5 seconds to the result
• - Charging status (SOC) - 0-100%
• - Dimensions (DXSXW) - 7.5 x 2 x 15 cm
• - weight - 0.25 kg
• - Dimensions of shipment (DXSXW) - 11 x 17 x 5.5 cm
• - shipping weight - 0.3 kg

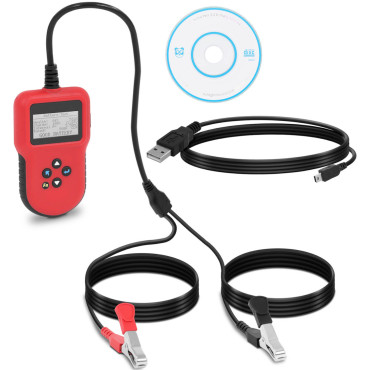

Included:

• - battery tester
