Manufacturer's code:
10060828Battery switch
MSW It is used to isolate and protect the electrical installation. Fits tooling in outboard engines, small built-in machines and on on-board systems with small sizes. Model
MSW-Bs1250b You can mount in gasoline vehicles, SUVs, RV camping cars and even in boats and small yachts. High parameters: Continuous current
275 A, intermittent current
350 A and starter current

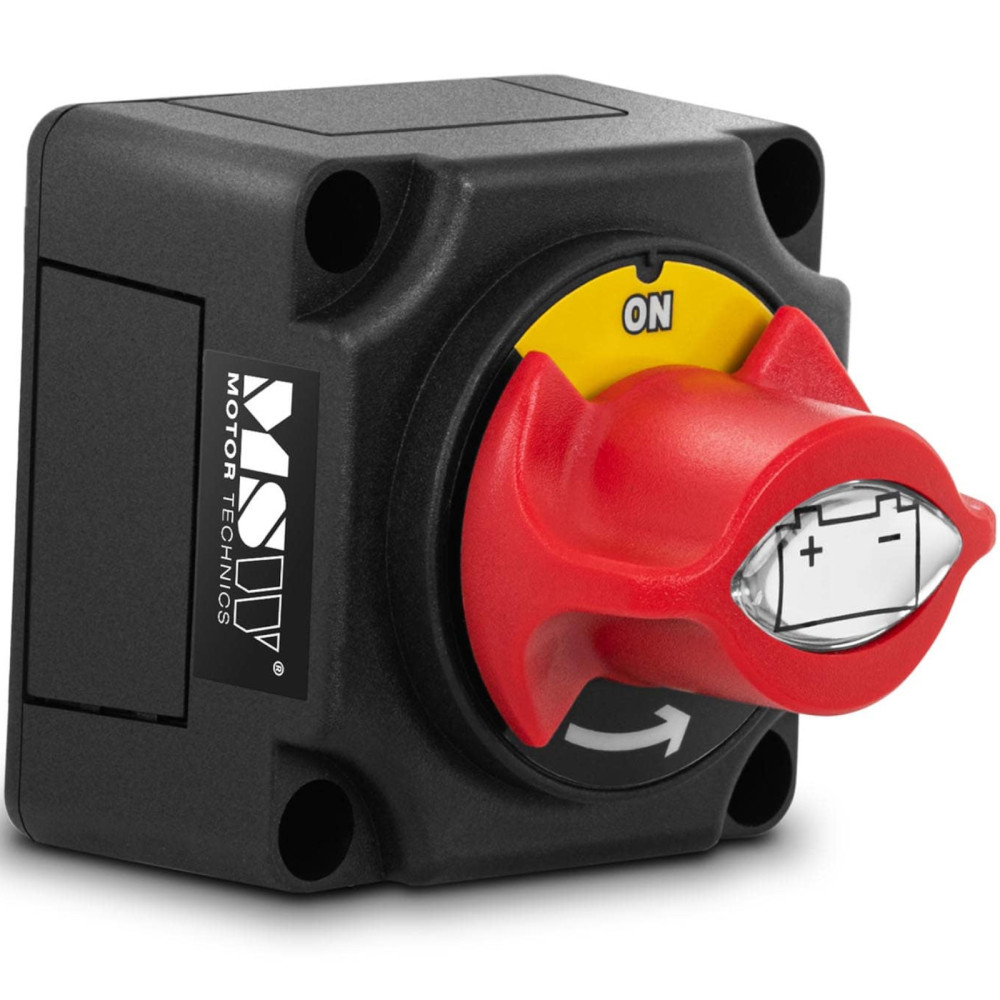

1250 A They guarantee the durability of the device. Therefore, it can be used as a main current circuit breaker and a power failure switch. The disconnector can be mounted with other switches or independently. Gared copper contacts ensure the best contact and protection against rust. The switch will serve many years because no parts are exposed to corrosion. The two-position knob (ON / OFF) and 4 mounting openings allow for simple installation and operation of the device. The housing was made of plastic, so it is resistant to difficult conditions. The product has been equipped with three hidden side parts that allow you to serve a wire from different directions. The knob can be removed by turning them to the left by 45 degrees. The safety of the device provides protective protection. The switch eliminates the power consumption from the battery and safely disconnects it when a car or yacht is not used.
Product features: - - can act as a main current circuit breaker 275 A, interrupted current 350 A, 1250 A boot current,
- - tinned copper contacts ensure the best contact and are resistant to corrosion,
- - the device has anti-speech protection, so it can be safely mounted in gasoline vehicles and on boats,
- - 48-60 V for isolating and securing electrical installations used in the circuit circuits 48-60 V, together with other switches or independently,

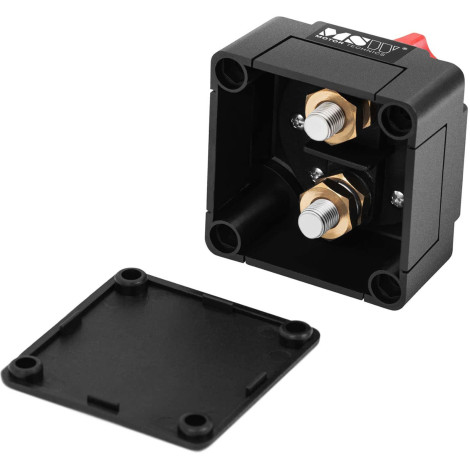

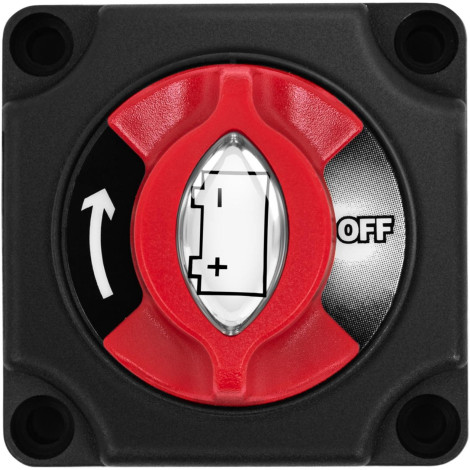

- - The switch has only 2 items (ON / OFF), assembly of equipment using 4 holes for fastening screws.
Technical parameters: - - catalog number - 10060828
- - article - New
- - Model - MSW-Bs1250a
- - Material - Plastic
- - Dialyelectric strength - 1500 V AC / min
- - continuous current [A] - 275
- - Color - Black, Red
- - Electrical life - 1000 times
- - Dotted current [A] - 350
- - functions - ON / OFF
- - Tension [V] - 48-60
- - Dimension of the clamping screw [mm] - 2 x 10
- - boot current [A] - 1250
- - Dimensions (DXSXW) - 7 x 7 x 8 cm
- - weight - 0.22 kg
- - Dimensions of shipment (DXSXW) - 7.2 x 7 x 10 cm
- - shipping weight - 0.24 kg
Included: - - battery switch
- - User manual
