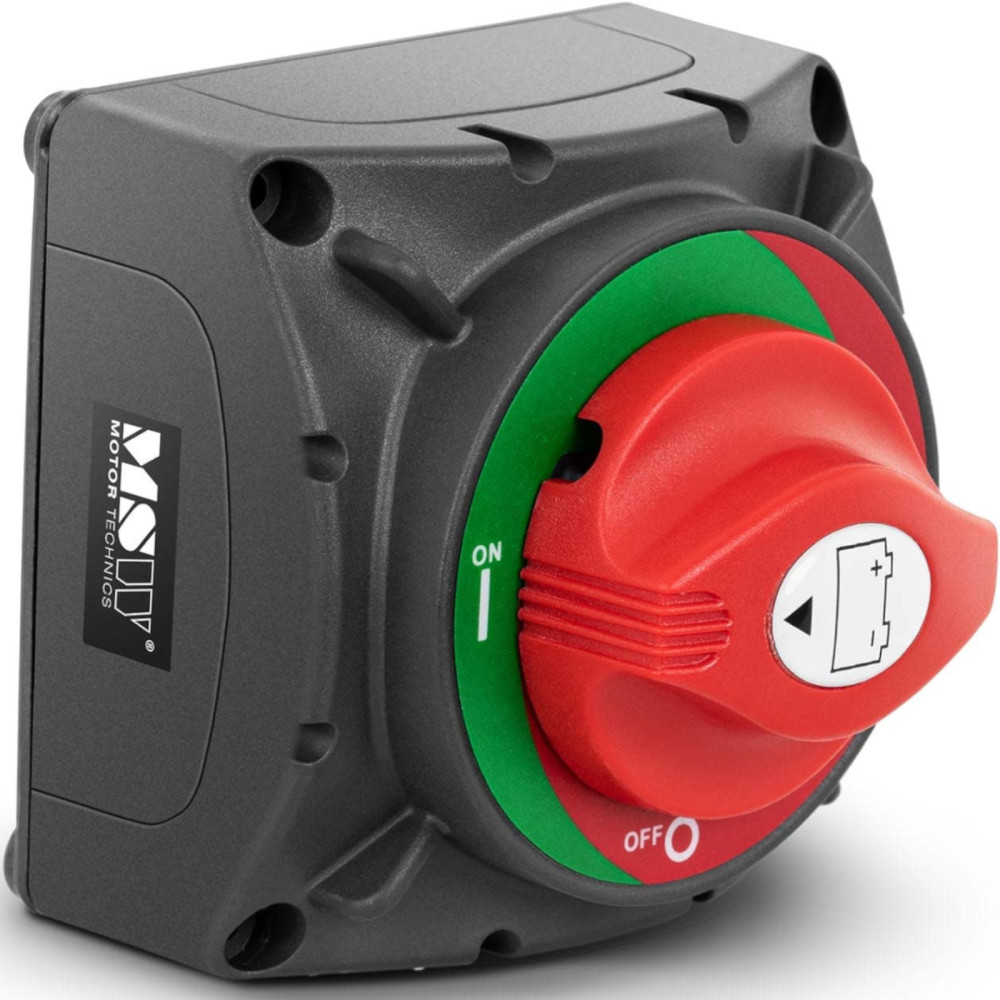

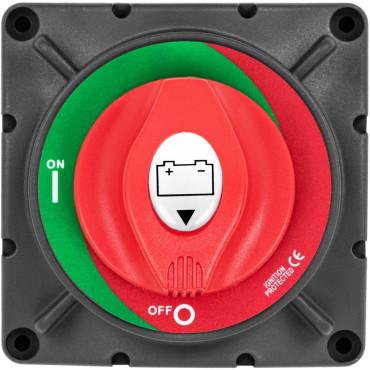

Current power switch Battery for Kamper Boat 275/800/1000 A

Manufacturer's code: 10060829
Battery switch MSW It is used to isolate and protect the electrical installation. Fits tooling in outboard engines, small built-in machines and on on-board systems with small sizes. Model MSW-Bs1250b You can mount in gasoline vehicles, SUVs, RV camping cars and even in boats and small yachts. High parameters: Continuous current 275 A, intermittent current 800 A and starter current 1000 a They guarantee the durability of the device. Therefore, it can be used as a main current circuit breaker and a power failure switch. Gared copper contacts ensure the best contact and protection against rust. The switch will serve many years because no parts are exposed to corrosion. The four-position knob (ON / OFF, I and II) and 4 mounting holes allow for simple installation and operation of the device. The housing was made of plastic, so it is resistant to difficult conditions. The product has been equipped with three hidden side parts that allow you to serve a wire from different directions. The safety of the device provides protective protection. The switch eliminates the power consumption from the battery and safely disconnects it when a car or yacht is not used.
Product features:

• - it can work as a main current circuit breaker 275 A current, interrupted current 800 A, boot current 1000 A,
• - tinned copper contacts ensure the best contact and are resistant to corrosion,
• - the device has anti-speech protection, so it can be safely mounted in gasoline vehicles and on boats,
• - 12-48 V for isolating and securing electrical installations used in the circuits of the electrical installation together with other switches or independently,
• - switch has 4 items (on / off, I and II), installation of equipment using 4 holes for fastening screws,

Technical parameters:

• - catalog number - 10060829
• - article - New
• - Model - MSW-Bs1250b
• - Material - Plastic
• - Dialyelectric strength - 1500 V AC / min
• - continuous current [A] - 275
• - Color - Black, Red
• - Electrical life - 1000 times
• - Dotted current [A] - 800
• - functions - ON / OFF / I / II
• - Power cord [m] - -
• - Tension [V] - 12-48
• - Dimension of the clamping screw [mm] - 2 x 12
• - boot current [A] - 1000
• - Dimensions (DXSXW) - 10 x 10 x 9 cm
• - weight - 0.55 kg
• - Dimensions of shipment (DXSXW) - 11 x 11 x 10 cm
• - shipping weight - 0.62 kg

Included:

• - battery switch
• - User manual
