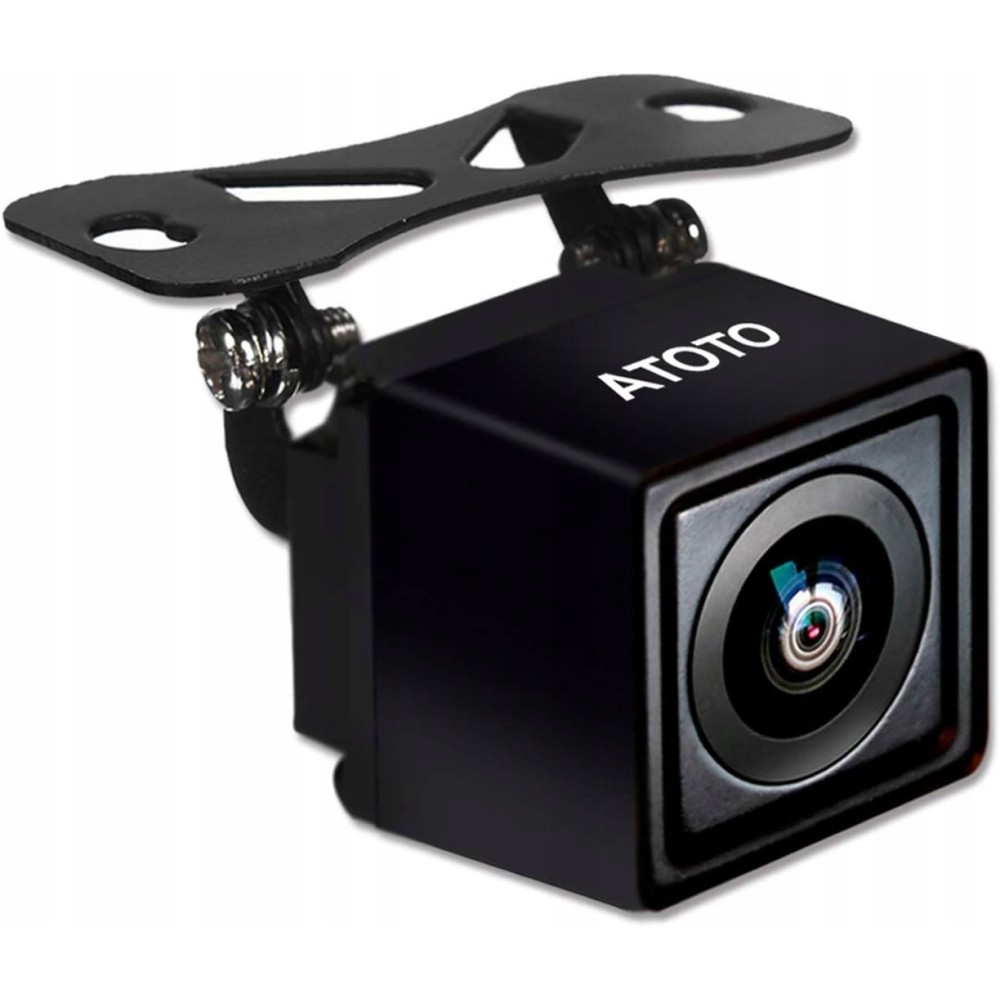

ATOTO AC-HD02LR 720P reversing camera with night vision

The HD 720p reversing camera, which can send the HD 720P video signal. A special construction of the cabling and system support software allows the user to preview live on the back when the vehicle moves forward

Works only with selected AtoTo car radios (F7 series, S8 series and A6 Karlink / Performance versions), and the video quality of the video is much better than in the case of traditional cameras sending a CVBS signal. It is not compatible with other car stereo sets!

If you have ATOTO S8 (GEN2) and it is equipped with a virtual spatial view function, we recommend the Atto AC-HD03LR camera instead.

It does not work with car stereo seto A6Y, SA102 starter or p8. In addition, S8 models produced before January 2021 (also known as S8 gene 1) can support AC-HD02LR, but the system software is required before the LRV function will work correctly.

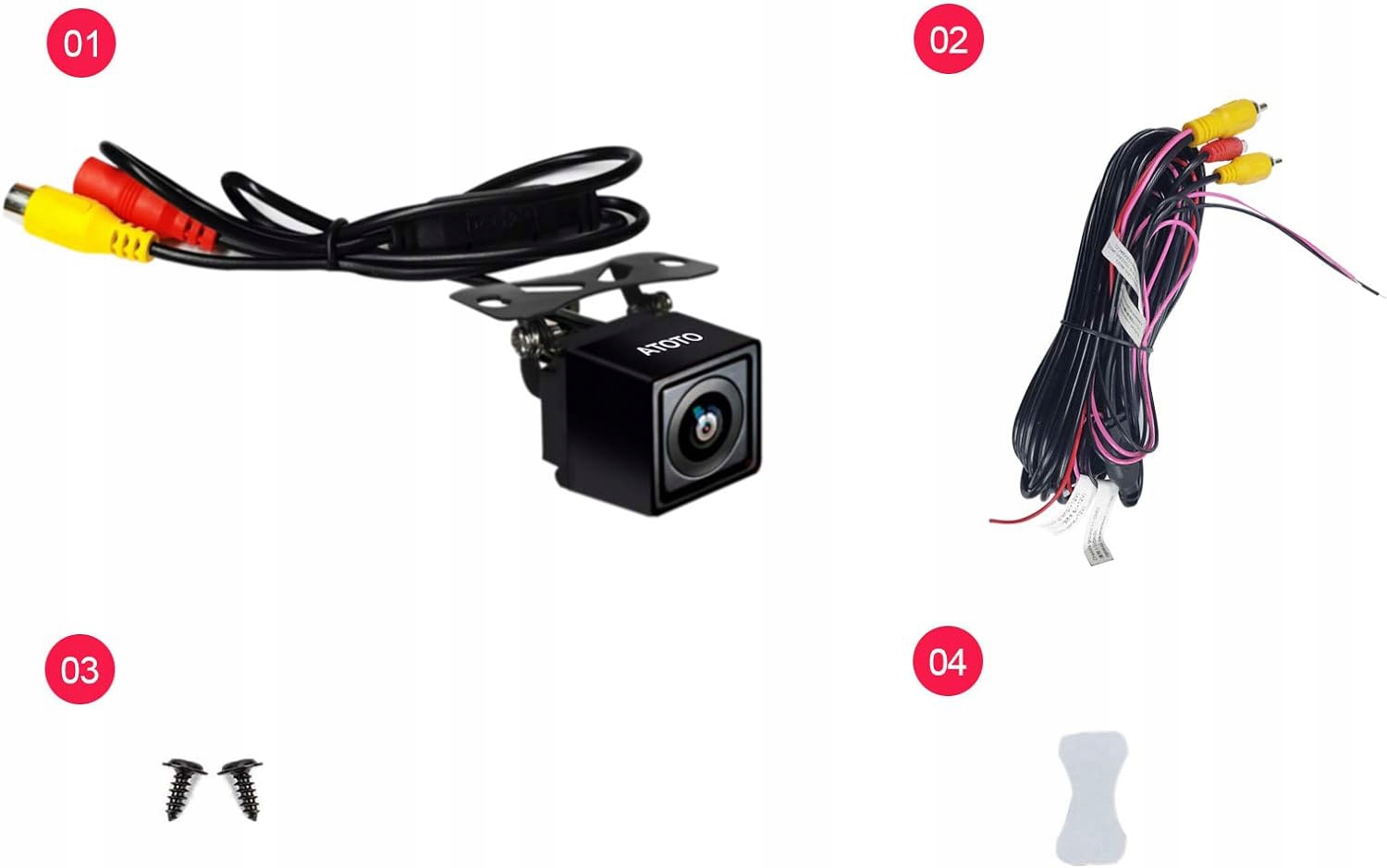

HD reversing camera with installation cable. Easy installation: 2 Installation options, you can choose the assembly on the bracket or concealed assembly depending on the case.

Specifications:

• - Product model: AC-HD02LR
• - Image transducer format: 1 / 2.9 "CMOS
• - pixels: 1280 (H) x720 (V)
• - White balance: Automatic
• - Backlight compensation: Yes
• - Noise reduction: 3D DNR
• - Video frames: 720p @ 30fps
• - video signal output: analog HD signal, 1.0 VP-P / 75Ω
• - Working voltage: DC 12V
• - working current: 130 mA ~ 150 mA
• - operating temperature: 30 ° C ~ + 80 ° C (-22 ° F ~ 176 ° F)
• - Guidelines for the back view: Not built-in, supplied by the car stereo system
• - Water resistance: IP67
• - Nighting: Yes

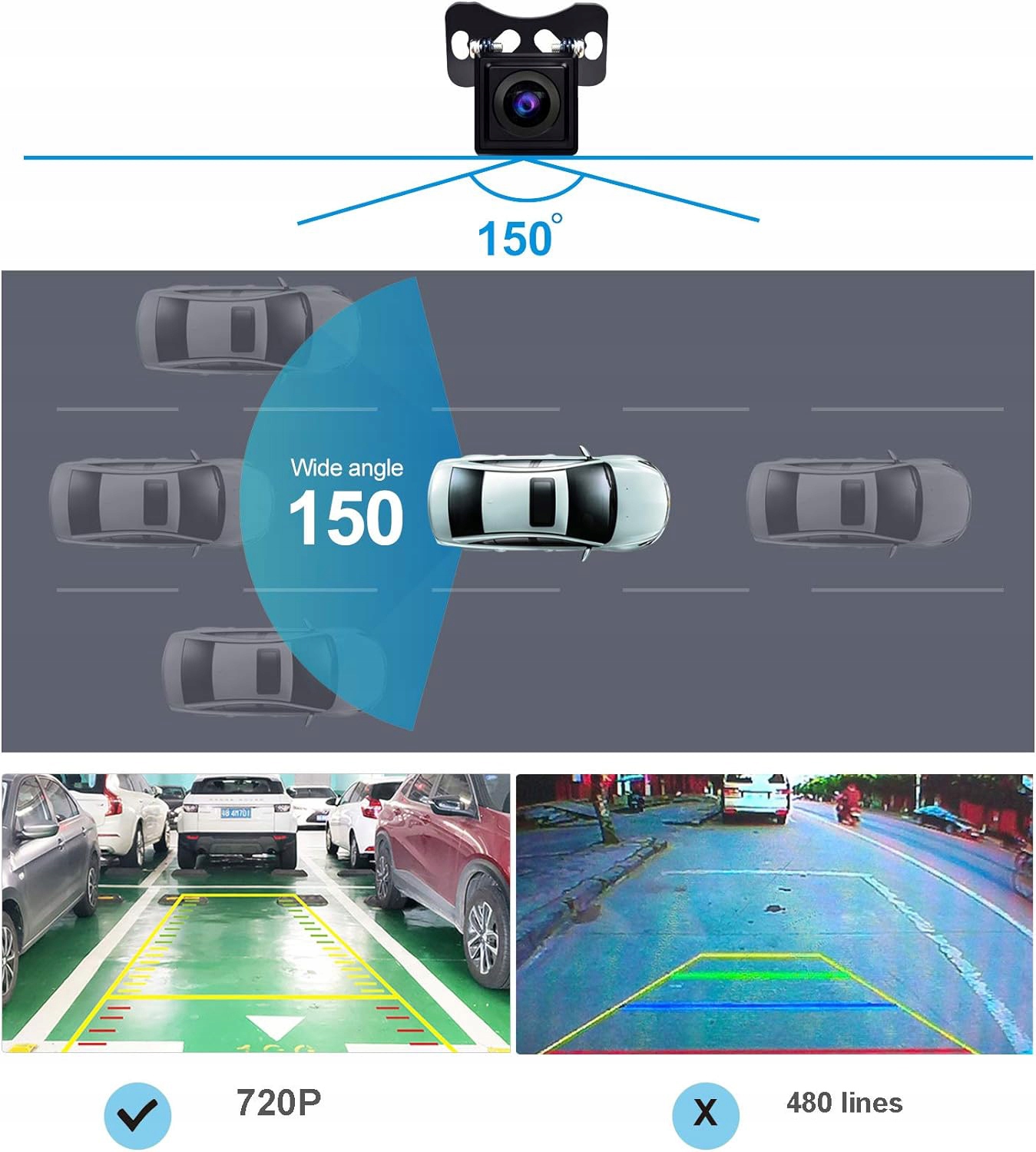

• - Lens view: 150 degrees

Power method: Powered by Atoto Headunit or vehicle accessories (ACC).

Access to the reverse image: (1) When the vehicle is reverse, the backward image will be displayed on the radio display; (2). Manually start the Rearview app when the vehicle goes forward, or use the buttons on the steering wheel (if applicable). For selected S8 modes (GEN2), which are equipped with hand gestures support, gesture control is available;
