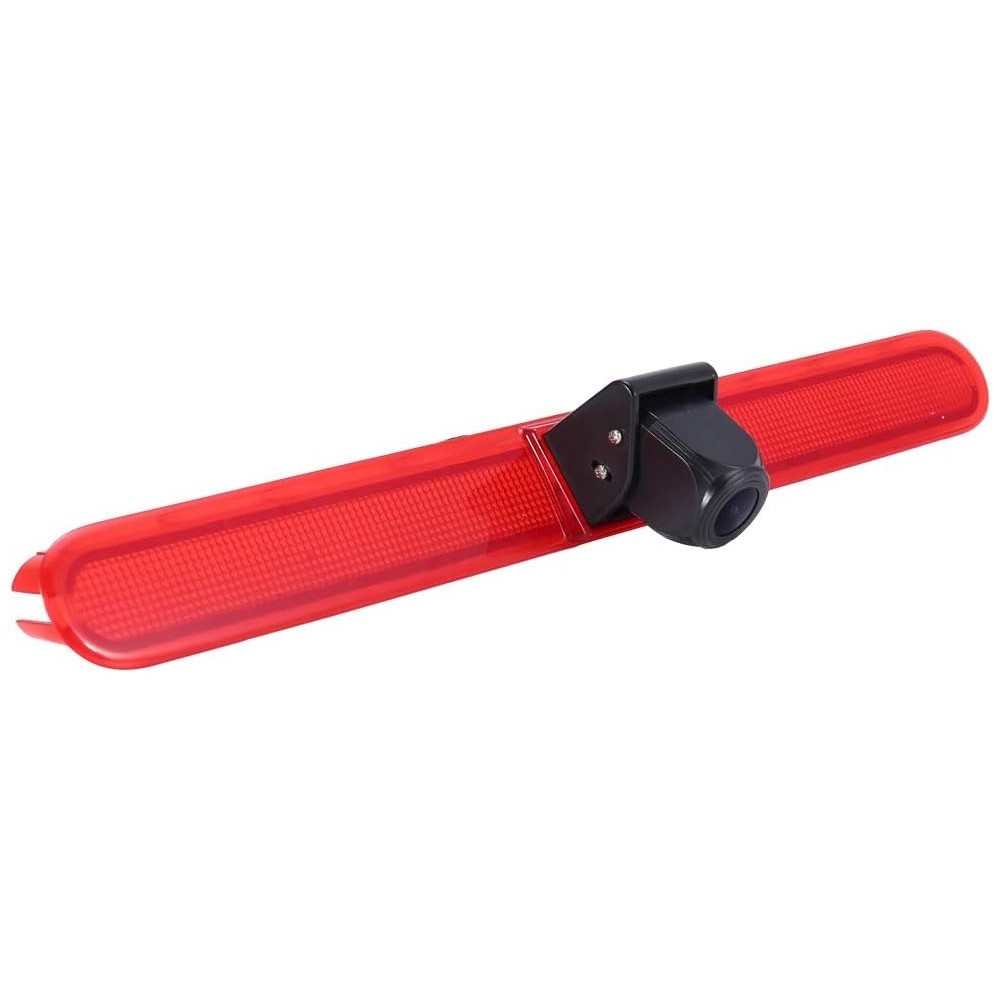

Reverse cameras with Kalakus alloy lamp for Transporter VW T5 / T6 Lupo Arosa

Rearlight Camera - Camera Reversing for VW T5 Multivan, Caravelle High Roof / T6 with High Roof, T5 Camper, Lupo 6x, Seat Arosa

• 170 degrees view: Provides excellent visibility, perfectly with dead points.
• High resolution and Sensor HD CCD 1/3 CALA NTSC: Resolution 628 x 586 PX with 520 TV lines, 12V power supply, camera lens flexibly adjustable for optimal view.
• Easy installation: Connect the video cable to the car screen, and the power cable to power the rear light in the car.
• Parking help: On the screen you can see oncoming cars, obstacles or children, which greatly facilitates safe parking.

Compatibility:

• VW TRANSPORTER VAN 3 - brake light rear (for rear flap door).
• VW T5 Multivan Caravelle with a high roof - years of production 2003-2015.
• VW T6 with a high roof - from 2016.
• T5 Camper - Years of production 2009-2010.
• VW Lupo 6x - Years of production 1999-2006 (not applicable to GTI versions).
• VW SEAT AROS - Years of production 1997-2005.

Product parameters:

1. TV system: NTSC.
2. Resolution: 520 TV lines.
3. Lens view: 140 ~ 170 degrees.
4. Signal ratio to noise (S / N): above 48 dB (AGC-OFF).
5. Color Video: Night Vision (Night version).
6. Video output: 1.0VP-P, 75Ω.
7. Image device: 1/3 inch color.
8. Detection field: 5.78 x 4.19 mm.
9. Synchronization system: internal.
10. Voltage: DC 12 V ± 1.
11. White balance: automatic.
12. Water resistance: IP67.
13. Effective pixels: 628 x 586.
14. Electronic shutter: 1 / 60-1 / 1000 seconds.
15. Current consumption: ≤ 150 mA (Max. 90 mA).
16. Working temperature: -40 ° C to + 60 ° C, RH 95% max.
17. Minimum lighting: 0.3 LUX /F1.2.
18. Working temperature: -30 ° C to + 50 ° C, RH 95%.

Install:

• Our package contains an easy installation diagram.

Contents of the packaging:

• 1 x camera for back view.
• 1 x power cable.
• 1 x video cable 8 meters.
• 1 x Operating instructions.
