Pressure tester Diesel engine compression meter 17 elements

Diesel pressure measure measure tester Diesel - G1011

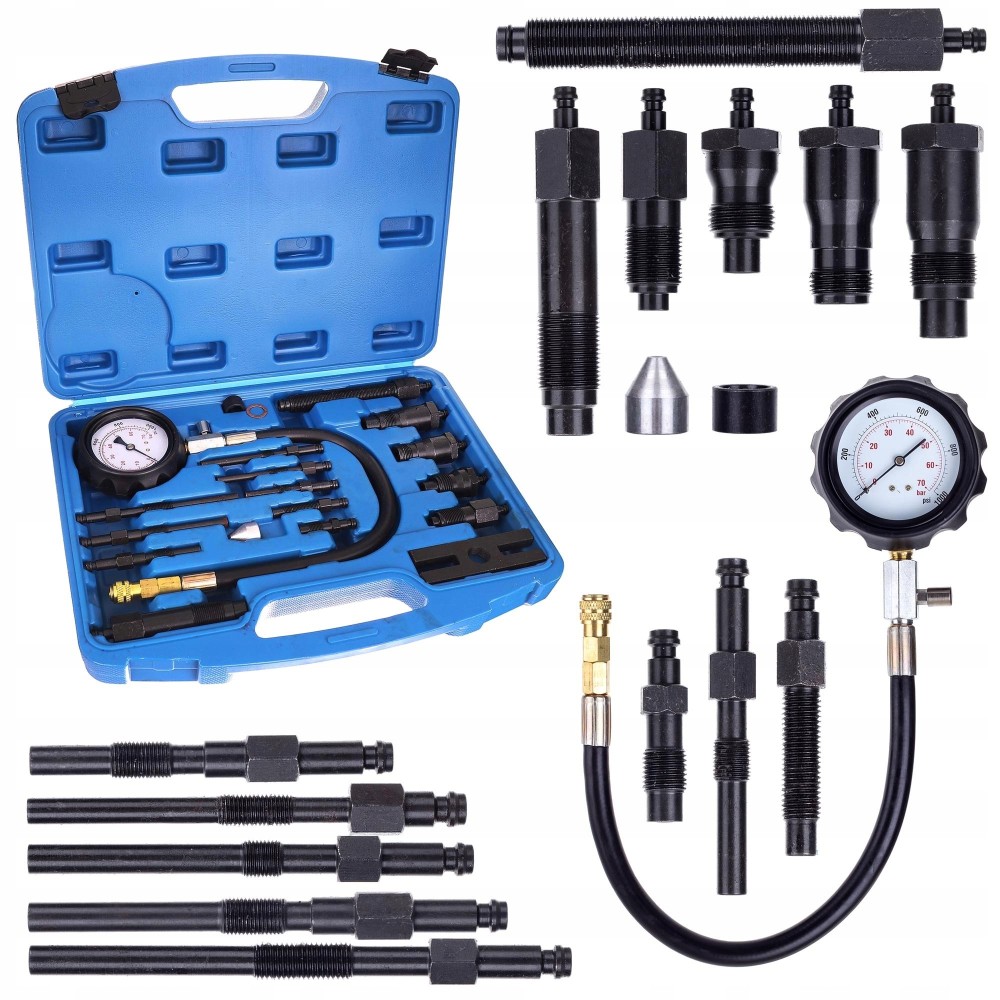

Composition of the set:

• Pressure meter
• 4 Adapters for measuring pressure in the injector
• 9 Pressure measuring adapters in the place of the glow plug
• 1 Universal adapter
• Type H fastening
• Suitcase

The tester is used to measure compression pressure in diesel engines. It is scored in bars and a dog.

A tester equipped with a quick coupling system that allows quick replacement of the tips. In addition, there are reductions in the set, thanks to which you can screw the device to different diesel engines. Necessary device in every car workshop.

The meter is equipped with a pressure release valve.

Thanks to this tester, you detect gauges defects under the head, piston rings, etc. The measurement can be made by both glow plugs and through the injector.

Fits most car brands personal, delivery and trucks, including cars with engines TDI / HDI / SDI / DTI / jtd / did With direct and indirect injection. The tester fits, among others, to Marek: VW, Audi, Seat, Skoda, Fiat, Alfa Romeo, Lancia, Peugot, Ford, Opel, Toyota, Mercedes, Rover and many more.

Technical data:

• Hoses length: 450 mm
• Pressure: 0-70 bar (0-1000 psi)
• Diameter of the manometer: 70mm
