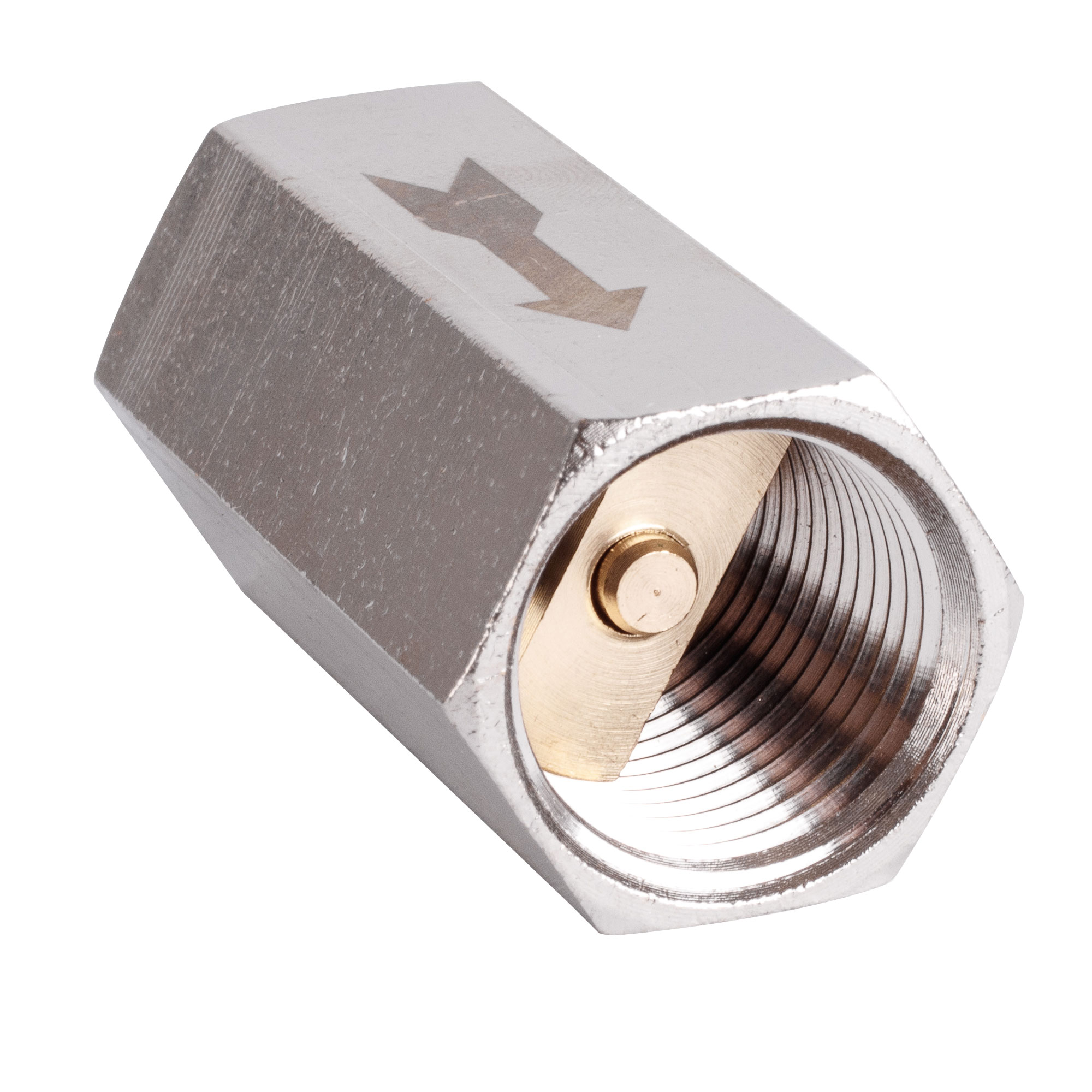

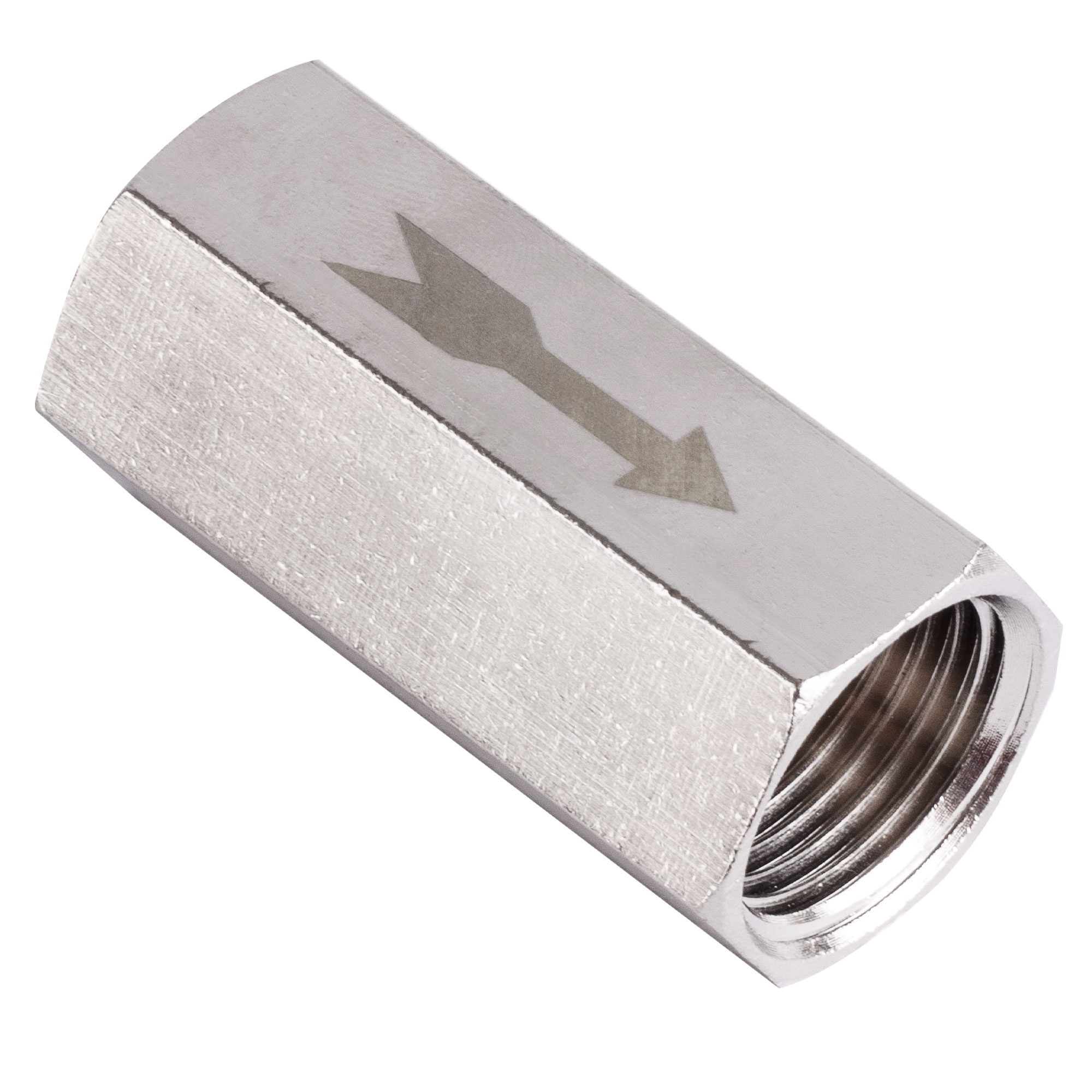

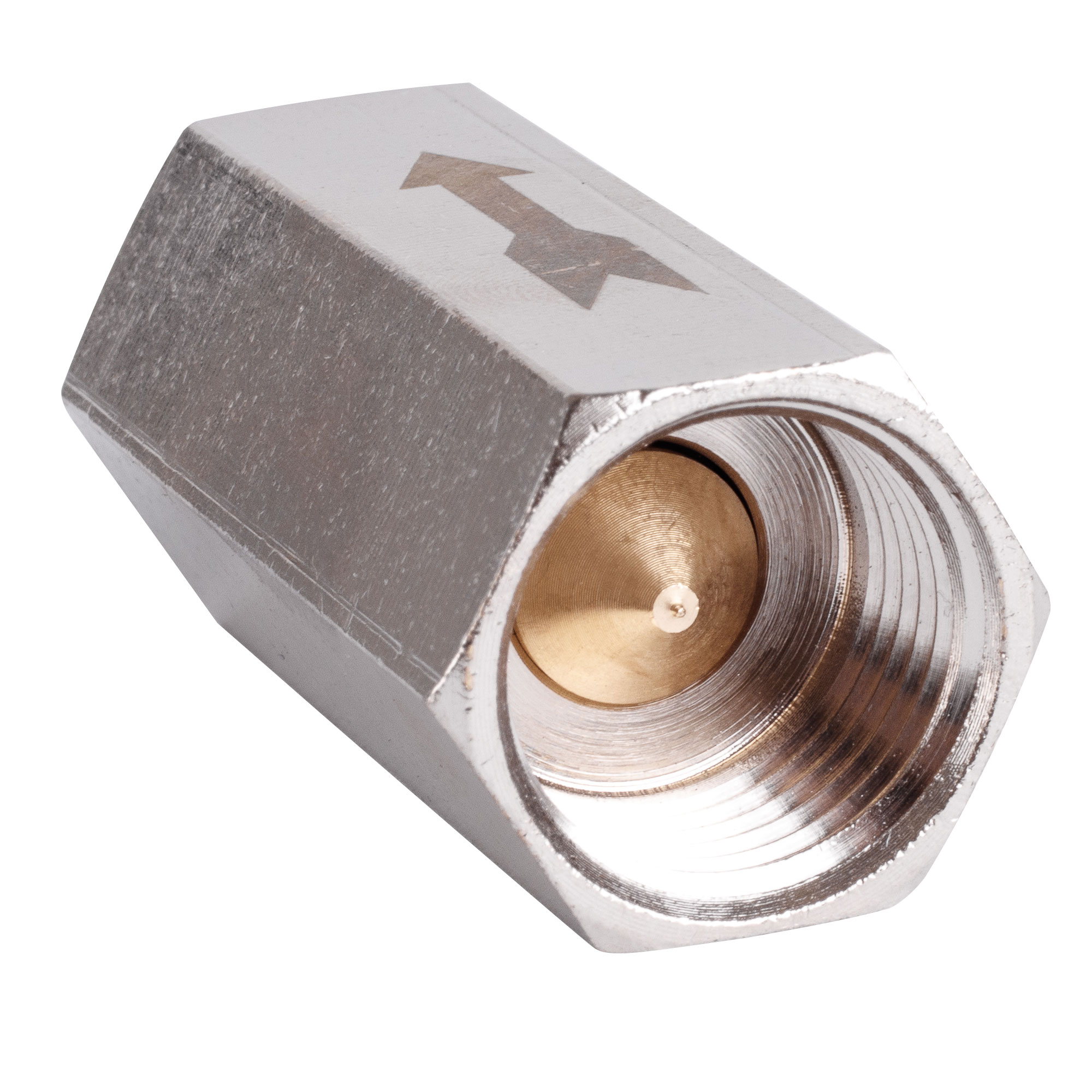

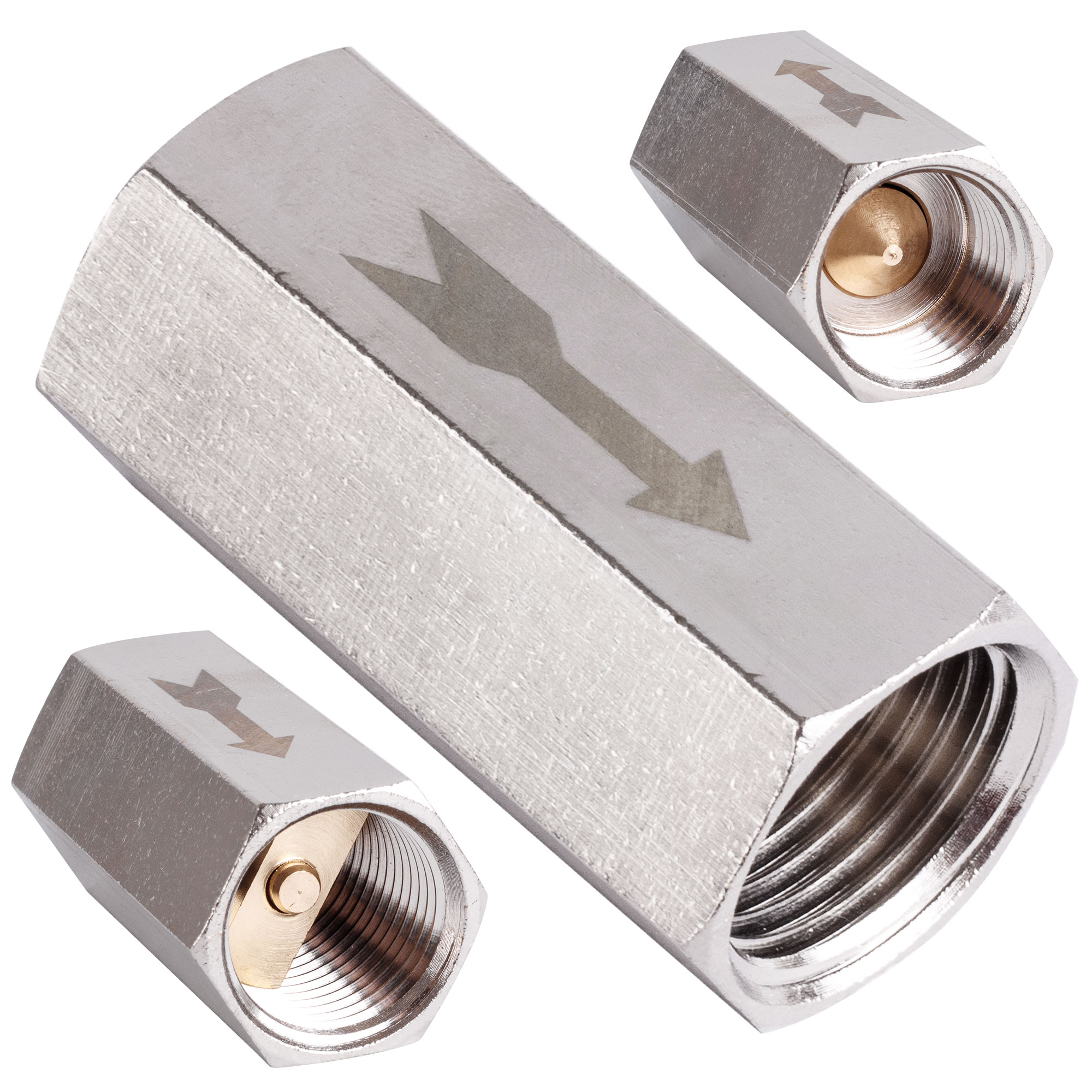

Linear check valve CV03 3/8 "X 3/8"

Linear check valve

✅ on both sides 3/8 "threads

• Professional check valve for use in pneumatic installations
• Protects the installation against air withdrawal - allows you to flow only one way
• The valve during the air flow disappearing from the source itself closes the pressure to withdraw the pressure, which could lead to damage to the tools or elements before the valve

Technical data:

• Threads on both sides: 3/8 "
• Maximum pressure: 15 bar
• Opening pressure: 0.2 - 0.5 bar
• Flow: 860 l / min
• Working temperature: From -5 to +60 ° C
• Total length: 42 mm
