Manufacturer's code:

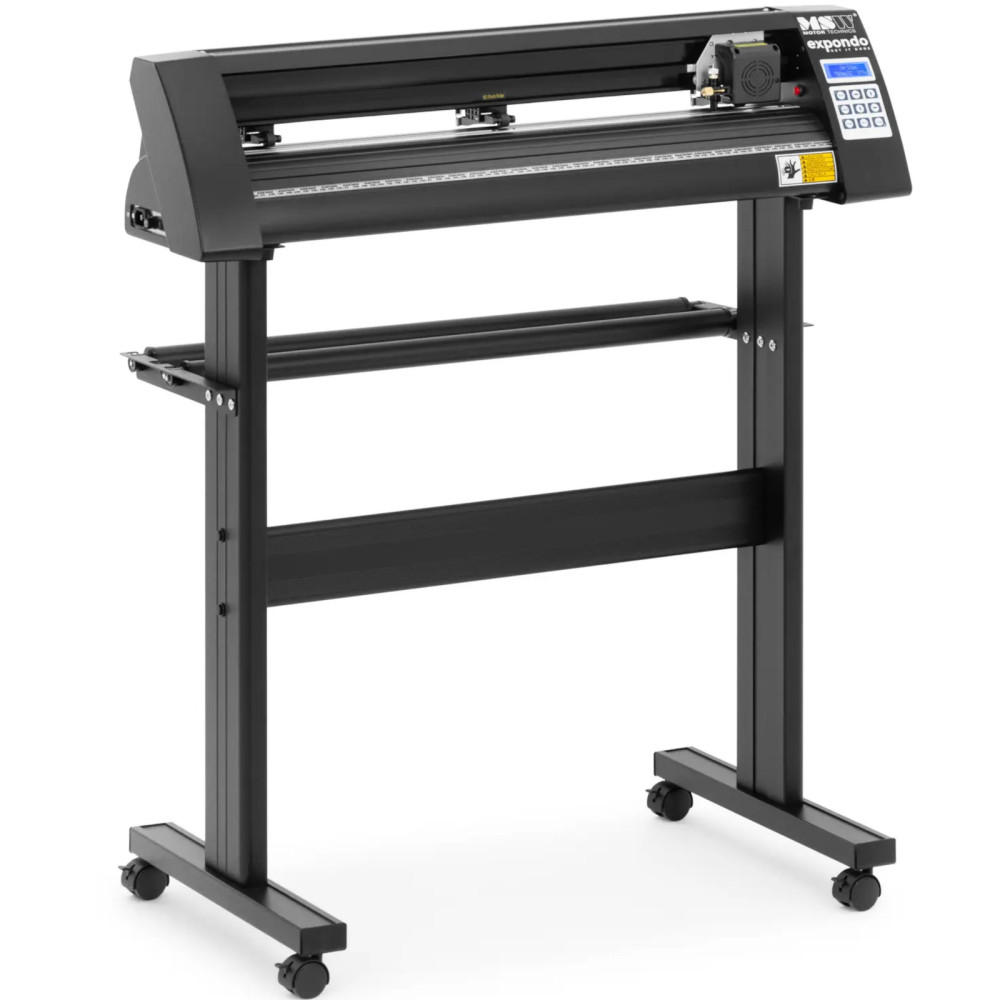

10031296Semi-automatic cutting plotter brand MSW Allows you to cut numbers, letters or graphics. The device guarantees precise cuts in foils, paper or other thin materials. Plotter delights with simple and precise operation. Parameters such as
Speed to 0.8 m / s or cutting force up to 500 g They are set on a transparent control panel with backlit
LED screen. The built-in optical lens reliably recognizes the contours and will finish it with
precision 0.1 mm. The included software allows for even better service. Interfaces
USB and COM Ensure a smooth data transfer. Thanks to this, computer generated quickly and securely and securely. Due to a large and reliable feeder, a foil or other thin materials can be used
to a width of 72 cm. Graphics, logo or letters will be cut into width
up to 63 cm. A fuse has been used in the cutting plotter to ensure protection. Numerous accessories provide everything that needed to cut, from software for connection cables and blade. SignMaster (Windows) was included in the set, but you can also use SignCut, AutoCut, Graph Cut or Flexi.
Product features: - - the optical lens of the cutting plotter safely and precisely carries a blade along specific contours,
- - the digital control panel with the backlit LED screen allows you to intuitively set different values, m.in. Speed or cutting force of the paper plotter
- - the width of the fleet filter (72 cm) allows you to obtain a large cutting width up to 63 cm for different designs or subtitles
- - connected to a computer via a USB or COM port and the attached software allows you to obtain a precise cutting
- - the set includes, for example, blades, handles, software or connection cables,
- - The basis with four wheels allows free movement.
Technical parameters: - - catalog number - 10031296
- - article - New
- - Model - MSW-Plo-720
- - frequency [Hz] - 50/60
- - Material - ABS, aluminum
- - Color - Black
- - Display - Led
- - Tension [V] - 100 - 265
- - current [A] - 2
- - power [W] - 90
- - cutting pressure [g] - 20-500
- - cutting width [cm] - 630
- - Power cord - 1.4 m
- - Tray width - 720 mm
- - cutting speed - 0.8 m / s
- - Dimensions (DXSXW) - 88 x 45 x 100 cm
- - weight - 12.2 kg
- - Dimensions of shipment (DXSXW) - 97 x 33 x 39 cm
- - shipping weight - 15.4 kg
Included: - - cutting plotter
- - basis
- - 4 wheels
- - Power cord
- - engraver
- - blade holder
- - handle for a pen
- - 3 blades
- - COM connection cable
- - USB connection cable
- - key
- - USB controller
- - handle screw
- - Software for Windows (SignMaster)
