Manufacturer's code:

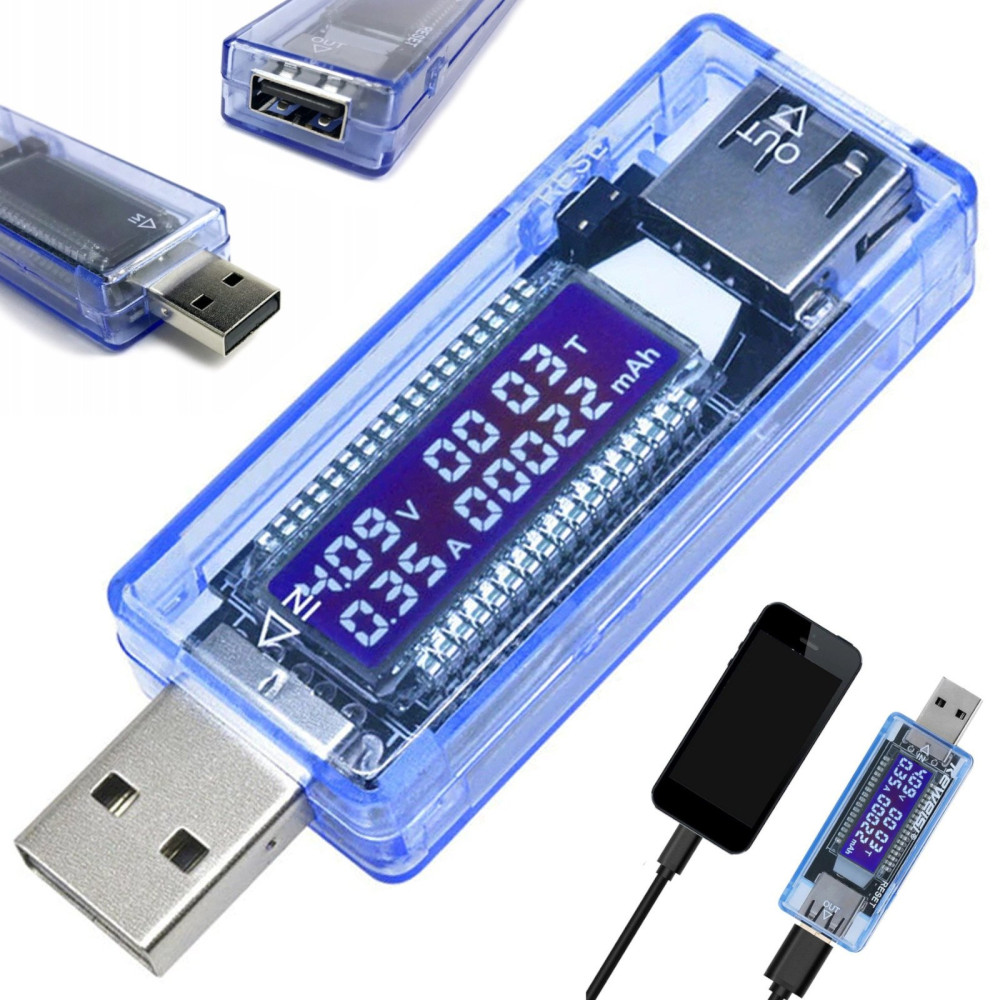

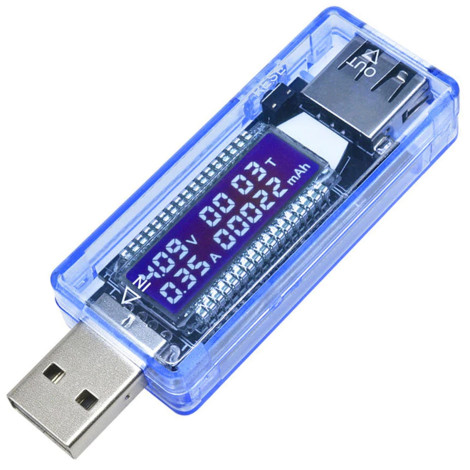

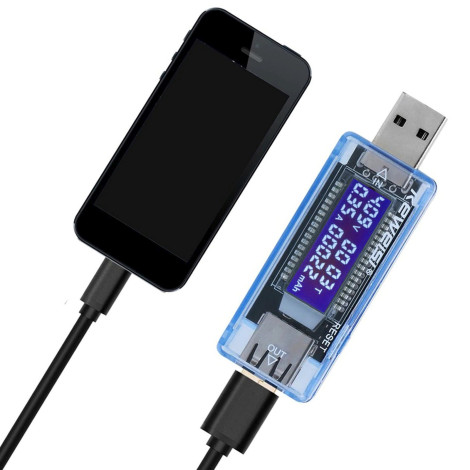

1029634Compact and precise USB V20 meter Allows simultaneous voltage measurement, current, capacity and charging time. Perfect for testing chargers, powerbanks, batteries and USB cables.
PlugPlay device - It does not require installation of drivers, simply connect and run immediately.
Product features: - - measurement 4 parameters: voltage, intensity, time and capacity,
- - LCD display: A readable screen shows all values simultaneously,
- - RESET function: you can reset the saved data with the button,
- - Memory memory: Data memorized until the reset time,
- - PlugPlay: does not require software or drivers,
- - Compact size: small, handy and easy to store,
- - Compatibility: USB 2.0.
Technical data: - - type: Digital
- - Color: Blue
- - voltage measurement range: DC 4V - 20V
- - Current measurement range: DC 0A - 3A
- - Measurement tolerance: 1%
- - Measurement capacity: 0 - 99 999 mAh
- - Time measurement: 0 - 99 h
- - Measurement frequency: 2 measurements / s
- - Own power consumption: approx. 10 ma
- - Compatibility: USB 2.0
- - Dimensions: 72 x 13.5 x 23 mm
- - condition: New, original packaging
Contents of the kit: - - USB meter
- - User manual
