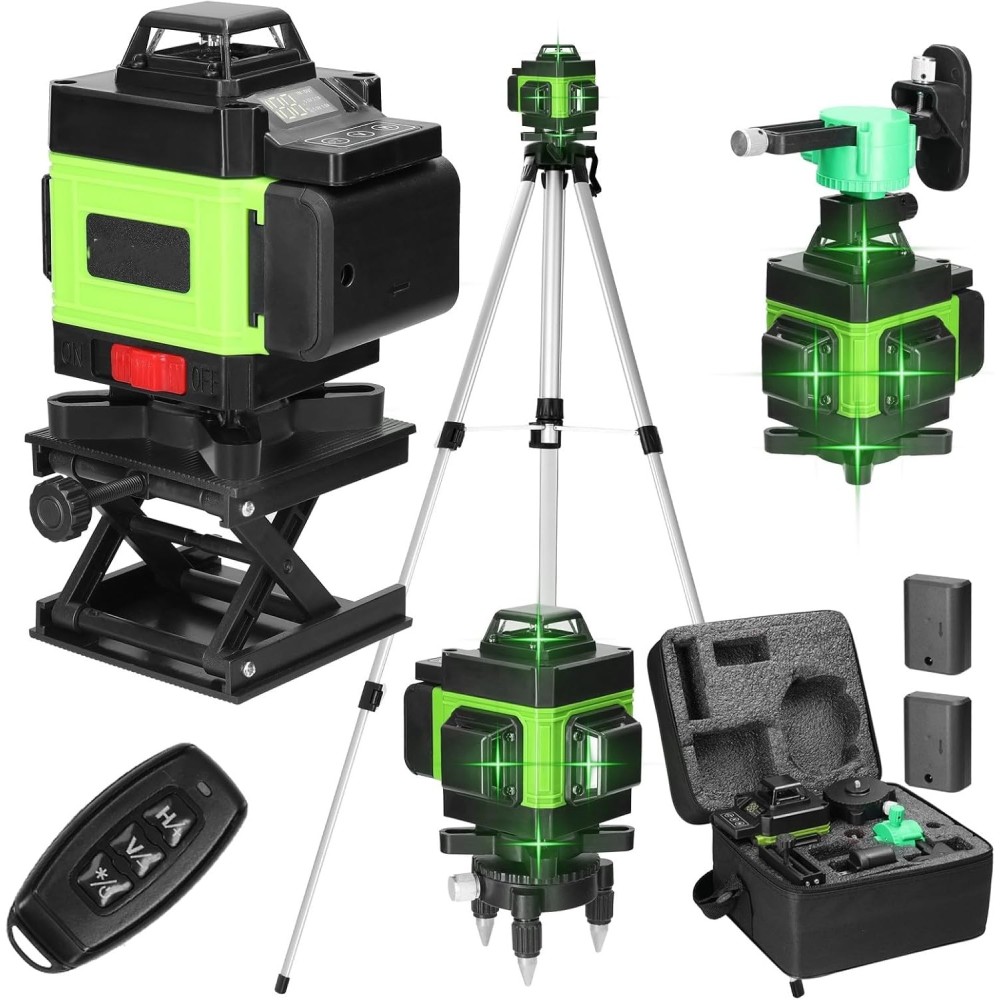

Compact size, light and portable design, providing quick and convenient moving and storage in a transport box.

It uses high-quality laser diodes and precise conical mirrors, thanks to which the laser lines emitted are thin, bright and are characterized by high accuracy. The brightness of the laser is adjustable.

Equipped with self-dialing function, automatic leveling ≤3 °, and if the angle exceeds 3 °, the laser light will flash, and the laser level will emit an audible signal, reminding you to set it on a flat surface.

Laser level:

Emits 16 laser lines separately or simultaneously for more accurate positioning, with a 3-stage self-leveling system, providing flexibility and stability.

Note:

• The laser output opening is on a marked location.
• Do not look directly on the laser beam.
• Do not disassemble the device or make independent internal repairs.
• The device meets safety standards for laser radiation.

Specifications:

• Name: Laser spirit
• Main Material: Plastic + Metal
• Laser class: Class 2, Output power <1MW
• Line type: 4 * 360 °
• Wavelength: 532 nm (green)
• Battery: 2 * Lithium battery, 3.7V, 2400mAh (included)
• Horizontal / vertical accuracy: ± 0.2 mm / 10 m
• Range of automatic leveling: ± 3 °
• Working temperature: -5 ℃ to 50 ℃
• Degree of waterproof: IP54
• Working range: 25 m
• Tripod interface: 5/8 "
• Dimensions of the level: 130 * 102 * 134 mm / 5.12 * 4.02 * 5.28 inches
• Tripod base size: 96 * 82 * 72 mm / 3,78 * 3,23 * 2.83 inches
• Wall holder size: 161 * 71 * 89 mm / 6.34 * 2.80 * 3.50 inches
• Metal plate: 100 * 60 * 12 mm / 3.94 * 2.36 * 1.47 inches
• Raising platform: 127 * 90 * 30 mm / 5.00 * 3.54 * 1.18 inches
• Dimensions of the transport bag: 220 * 233 * 150 mm / 8,66 * 9.17 * 5.91 inches
• Tripod 1.5 M: 560 * 105 * 90 mm / 22.05 * 4.13 * 3.54 inches
• Package dimensions: 440 * 215 * 255 mm / 17,32 * 8.46 * 10.04 inches
• Packaging weight: 2455 g / 5.41 lb

Contents of the kit:

• 1 * Laser spirit
• 2 * battery
• 1 * battery charger
• 1 * Tripod base
• 1 * Wall holder
• 1 * Metal plate
• 1 * Raising Platform
• 1 * remote control
• 1 * 1/4 "thread adapter up to 5/8"
• 1 * Transport Bag
• 1 * User's Manual
• 1 * tripod
