Manufacturer's code:

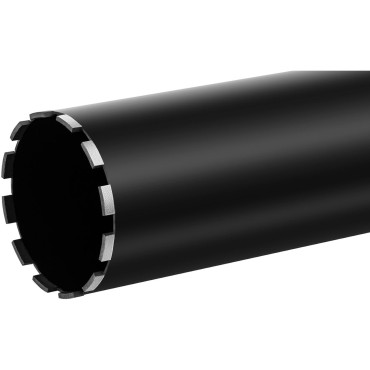

10061303Diamond Korona brand drill MSW It allows you to drill in hard materials. Will work for use in
concrete, reinforced concrete, stone, granite, limestone, as well as in bricks, clinkers or screed. Diamond cutting segments were placed on a steel body with a length
400 mm. The diameter of the drill is
160 mm. The tool can be used for both drilling on
dry and wet. However, it is advisable for greater security and less consumption of cutting segments to use the second method. Standard
1 1/4 '' thread (7 UNC) Fits most popular drilling rig. High production standards allow for a long service life.
Product features: - - diamond cutting segments,
- - perfect for hard materials like concrete or gelbet,
- - for dry and wet drilling,
- - 1 1/4 '' thread (7 UNC), dimensions 160 x 400 mm,
- - Long life.
Technical parameters: - - Model - MSW-Dcd-400/160
- - catalog number - 10061303
- - article - New
- - Material - Steel, diamond
- - thread - 1 ¼ - 7 UNC
- - height of the core drill [mm] - 400
- - Diameter of the core drill [mm] - 160
- - Dimensions (DXSXW) [cm] - 40.5 x 16 x 16
- - weight [kg] - 4,85
- - Dimensions of shipment (DXSXW) [cm] - 46 x 17 x 17
- - shipping weight [kg] - 5,25
Included: - - Diamond crown drill
- - User manual
