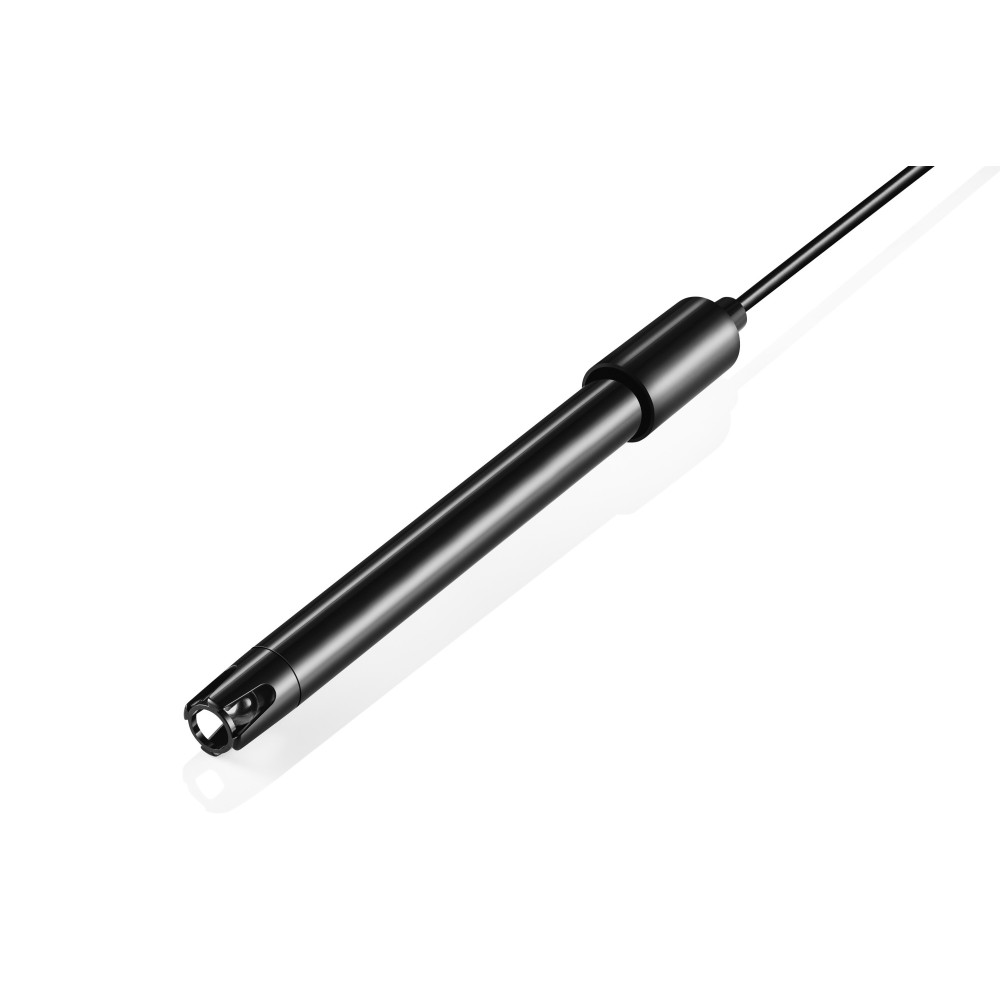

PH pH electrode for AT1, ITI, PH Bot

PH pH probe

A universal, professional pH probe designed to measure pH read in water tanks.

A probe equipped with a special tank with a diaphragm for caking a diaphragm during storage.

The probe should be calibrated in reference fluids with the values as close to the liquid pH value in which the measurement is to be measured if the measuring device gives this option, the probe can be calibrated in two reference fluids.

Technical data:

• Measurement range: 0-14 pH
• Temperature range: 0-80ºC
• Point Zero: 7 ± 0.5 pH at 25ºC
• Accuracy. Measurement: ≤ 0.01PH
• Resistence: 250mΩ at 25ºC
• Drifting: ≤ 0.02ph / 24 Godish
• Response time: 7s (from start)
• Connector: BNC
• Cable length: 100cm

The product covered by a 12-month warranty.

---------------------------------------------------------------------------------------------

How to use:

The contents of the sachets should be poured into 250 ml of demineralized water (at 25 ° C), stir with a plastic teaspoon and wait for completely dissolving the powder, then calibrate the meter according to the instructions using a solution with a specific pH reaction.

The pH meter should be calibrated with the buffer the most similar to the presumed pH of the solutions whose measurement usually performs. For example, if we usually measure the acidic solutions the meter calibrates pH buffer 4.00 if basic we buy a buffer with a higher pH.

In order to maintain the measurement accuracy, each pH meter should be periodically calibrated. The calibration of the meter should be started with acidic solutions, ending on basic.
