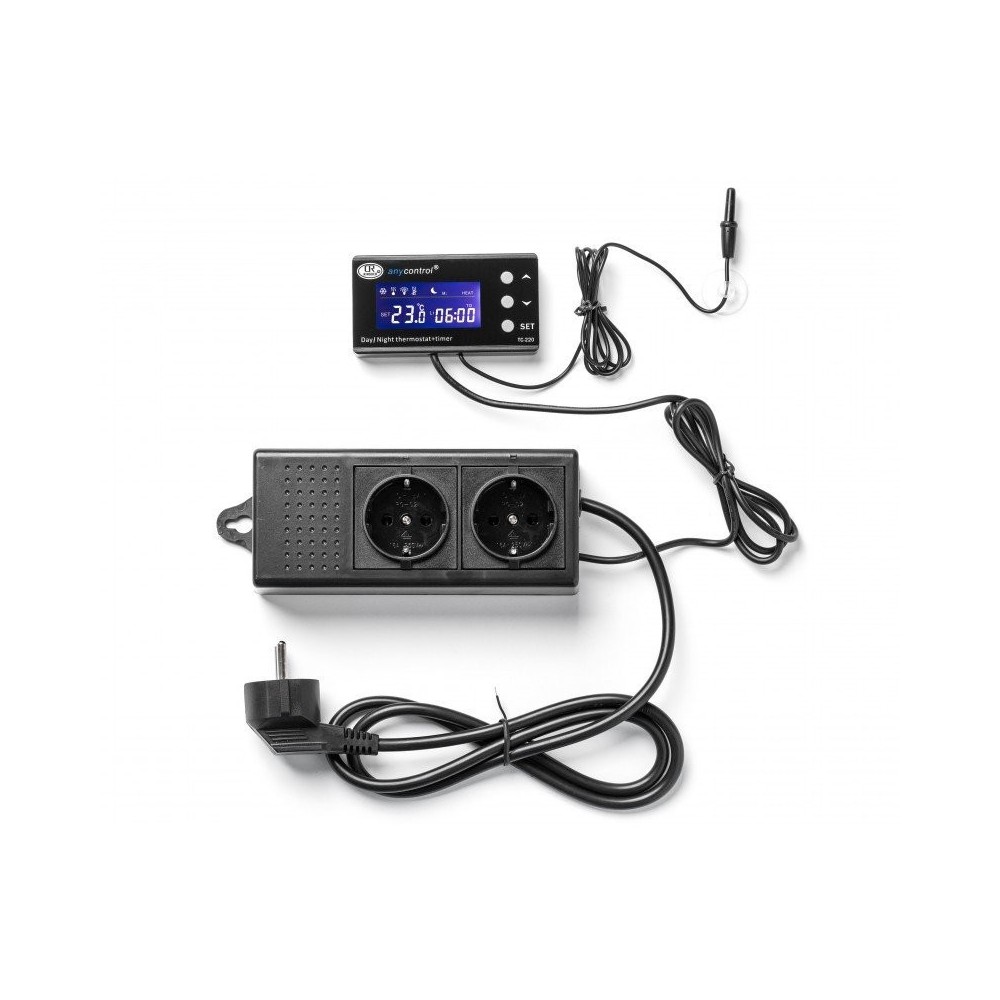

Ringder DTC-120 thermostat with a programmer

Ringder DTC-120 (Smooth adjustment) is an excellent Aquarium and Terrarium automation device. He watches over temperature changes and lighting around the clock. Two independent channels maintain the programmed temperature in day / night modes and regulate lighting in similar modes.
The Ringder DTC-220 thermostat is a perfect aquarium and terrarium automation. He watches over temperature changes and lighting around the clock. Two independent channels maintain the programmed temperature in day / night modes and regulate lighting in similar modes. This model unlike TC-220 has been enriched with a smooth temperature adjustment. For use with a heating mat or a heat issuer. The liquid temperature control aims to extend the life of heating devices, more accurately maintaining the temperature.
Ringer DTC-120 is equipped with a large readable and attractive visually backlit LCD display. Built-in audible alarm informing about incorrect temperature The device is easy to programming and the aquarium or terrarium cover allows quick adaptation of the device in each catwalk. Full control, decline or temperature increase and lighting changes, reflected in a natural environment positively affect the health and the condition of grown animals. In addition, it favors good well-being, stimulates the appetite and reproductive behaviors. Is it possible to make a winter sleep.

Ringder DTC-120 equipped with two independent channels coupled with timer (time switch), which allows you to connect the appropriate device and adjust its operation in a specified time range. The first channel is additionally connected to the probe measuring the temperature in the selected location. You can set the temperature on it (with a smooth adjustment) daily and night and working time for day and night. The second channel serves as a timer or time switch. It can be used, for example, to connect the UVB lamp and select the time interval in which it is to work.


Sample device configuration:

- to the first channel, connect the heating device with a smooth adjustment to lifting the temperature in the terrarium using, for example: ceramic heat emitter, mate, cable or heating stone and set the time interval, e.g. 9: 00-19: 00 (daily) - We set the temperature for this time interval, eg 28ºC. Set the second time interval at 19: 00-9: 00 (Night mode) and the temperature for 22ºC. As you can see the temperature in both time intervals (day and night) may vary what is very important in breeding of reptiles and amphibians.

- Connect the Terrarium lighting in the form, for example: compact / UVB fluorescent lamps, halogens or LED lighting and set the time interval for example 9: 00-19: 00. - In this time interval, the lighting is lit (daily) And analogously from 19: 00-9: 00 is turned off (Night mode).

- The device is ready for work. In the above settings, the thermostat during the day will automatically maintain the temperature in the tank at 28ºC and turns on the connected lighting. However, after 19:00, turn off the lighting and will reduce the tank temperature to 22ºC. In the absence of power supply, the controller will remember the entered settings

Specification:

- range of programmed temperatures from 0 to 50ºC
- Temperature resolution: 0.1ºC
- Accuracy: +/- 1ºC
- Timer: 0-24 H
- Power consumption: 3 W
- Maximum power of connected devices: 1200 W
