Manufacturer's code:
10030406Digital tachometer German brand Steinberg Systems It will be useful when checking the rotational speed of engines, modes, lathes, fans, drilling and other power tools and pottery wheels.
Two ways to carry out measurement They affect the great practicality of the device. A method to choose from

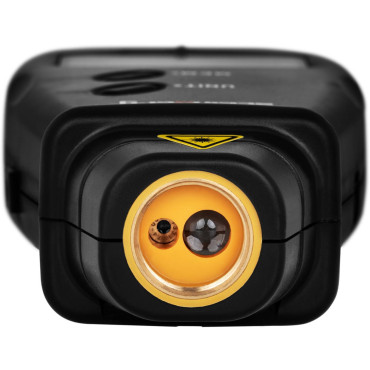

Contact and laser. The last one is safer because it does not require closing equipment to the surface of the fast rotating object.
High precision tachometer allows you to obtain reliable results. Depending on the speed of the element, accuracy can be
± 0.01% (7.0-599,9 rpm) or ± 0.05% (5999.9-99999 rpm). A wide range of measurement methods
Laser (7.0-99999 rpm) and contact (7,0-25000 rpm) Certainly it will work when monitoring the rotational speed of various machines. Clear
LCD display Immediately present the resulting result. Thanks to the highlighting the number of the number, the numbers are perfectly visible even in places with low light. In addition, the device
turns off automatically after 30 seconds inactivity. This allows you to save energy.
The product is powered by 4 AA batteries.
Product features: - - two measurement methods - contact and laser,
- - safe and non-contact obtaining results,
- - a wide range of speed measurement - from 7 to 99999 rpm,
- - LCD display with backlight,
- - Automatic device shutdown mode.
Technical parameters: - - Model - SBS-Dt-999
- - catalog number - 10030406
- - article - New
- - power supply - 4 x AA 1.5 V batteries
- - speed measurement range (contact) - 7,0-25000 rpm
- - Rotation range (laser) - 7,0-99999 rpm
- - Speed measurement range - 0.7-2500 m / min
- - Distance measurement range - 0.1-9999.9 m
- - resolution - 0.1 rpm (7,0-9999.9 rpm) | 1.0 rpm (10000-99999 rpm)
- - Precision - ± 0.01% and ± 1 DGT (7.0-5999,9) | ± 0.05% and ± 1 DGT (5999,9-99999) | 0.5% and ± 1 DGT (Speed, distance)
- - Display - LCD
- - Backlight - So
- - Automatic shutdown - So
- - Dimensions (DXSXW) - 24.5 x 11.5 x 6.5 cm
- - weight - 0.5 kg
- - Dimensions of shipment (DXSXW) - 25.5 x 13 x 8 cm
- - shipping weight - 0.6 kg

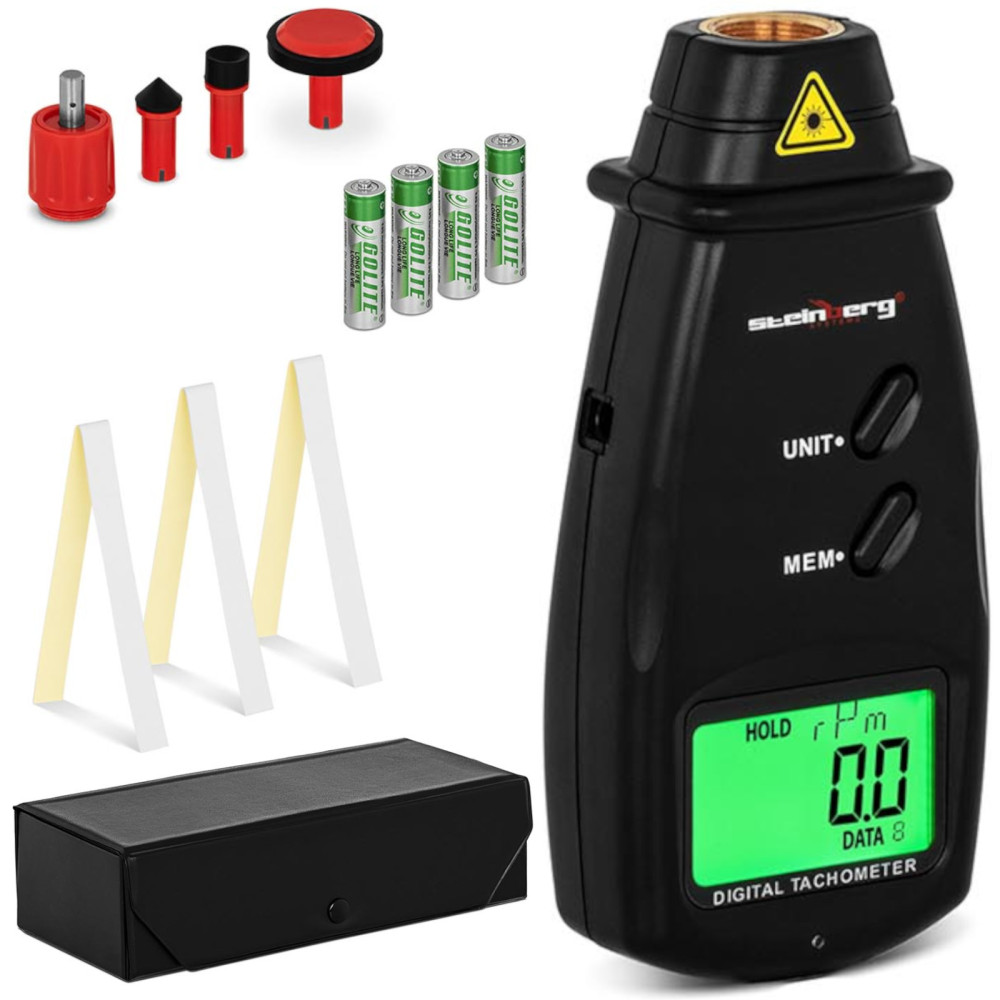

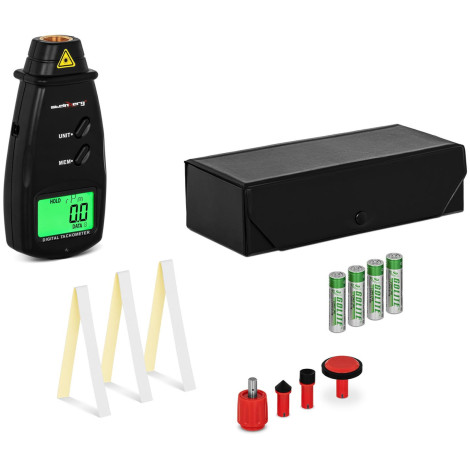

Included: - - digital tachometer,

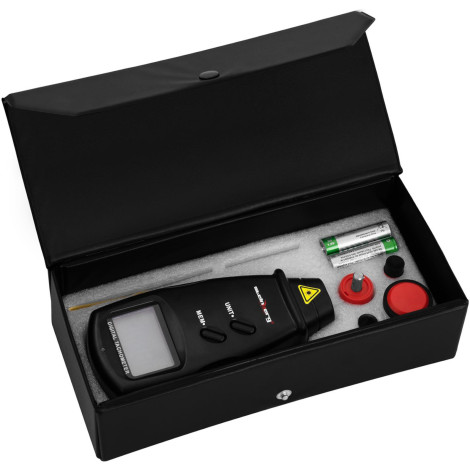

- - black plastic box,
- - the end of the speedometer,
- - tipper tip - 2 pcs.
- - Adapter for tips,
- - self-adhesive reflective tape - 3 pcs,
- - bolts for screwing on batteries - 2 pcs.
- - Operating instructions.
