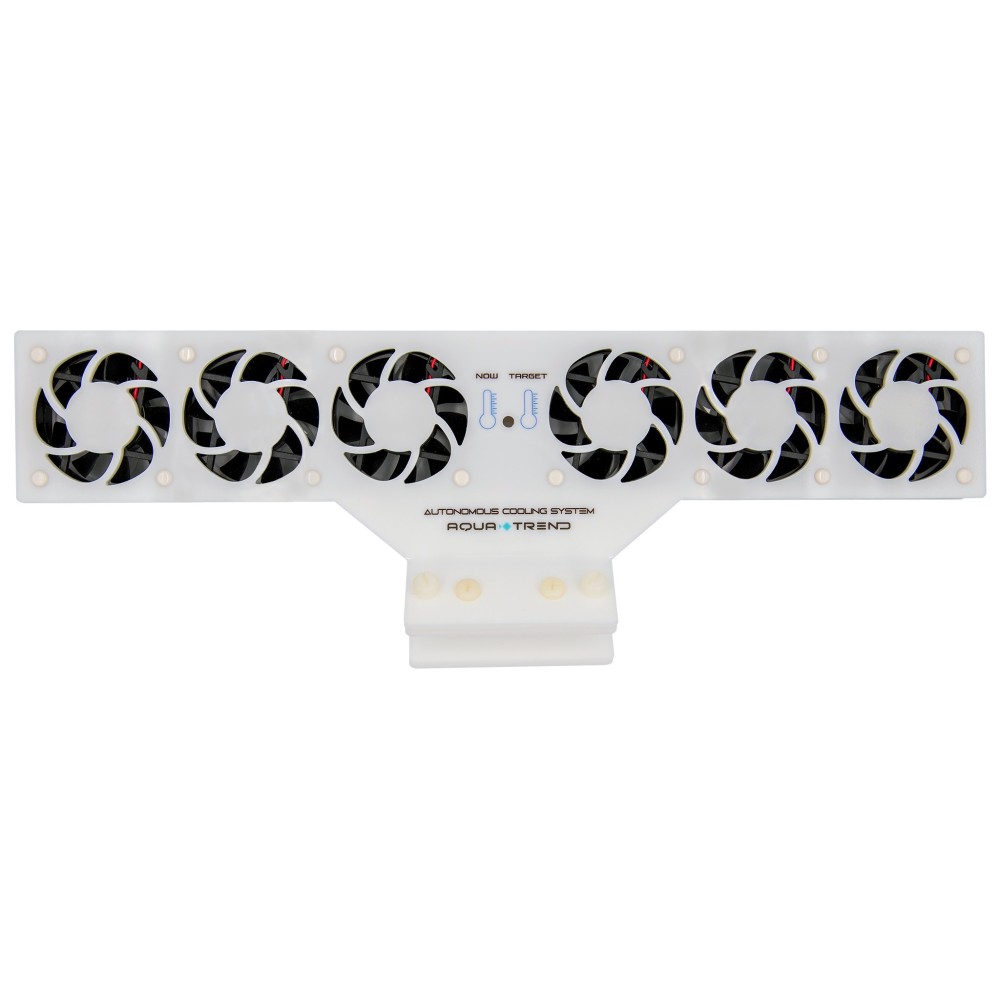

Autonomous Cooling System 6 Fans

Maintaining the correct, stable level of water temperature in the aquarium, especially at a tendency to its growth, is not an easy task. A large number of electrical devices such as lighting, circulating pumps, circulators, etc. causes unwanted water temperature.
Opposite this problem, an autonomous cooling system comes out, this is a completely autonomous device that helps to maintain water temperature in the aquarium at the right level, through its effective cooling.
This device has been equipped with a microprocessor measuring and temperature control system that communicates with the user using two multi-colored RGB LEDs.
Efficient, high-speed fans equipped with Vapo type bearings (non-contact magnetic bearing) guarantee a long, reliable operation, and effective and fast water cooling.
The device occurs in two variants: with four fans, and with six fans. The device version equipped with four fans is suitable for up to 400L tanks, the version equipped with six fans is suitable for tanks with a capacity of up to 800l.

Principle of operation:
The device communicates with the user through two multi-colored RGB LEDs.
The left LED presents with colors, the level of the measured temperature according to the scale applied on the device housing.
The right LED presents with colors, the temperature level to be maintained by the device. A change in maintained temperature level The user obtains thanks to the micro-button placed between the LEDs. Each press of the button changes the color of the right LED illustrating the temperature that will be kept by the device.
The Autonomous Cooling System allows you to adjust the operating speed of the fans (supply power), the user can adjust the power of fans to their own preferences: the size of the aquarium, the speed of overheating of water, etc. The adjustment is carried out on the knob on The power supply enclosure attached to the set.

Technical data:
- 12VDC supply voltage
- Fan type: Vapo (non-contact magnetic bearing)
- Control of WINNER Power: 25-100%
- measurement accuracy +/- 1 ° C
- Histereza 0.5 ° C
- Current consumption: max 1000 mA for versions with 4 fans, max 1500 mA for version with 6 fans
- Efficiency: max 200 m3 / h for versions with 4 fans, max 300m3 / h for version with 6 fans
- Weight: 650g for version with 4 fans, 900g for version with 6 fans
- Dimensions: 33.5cm × 8.5cm x 3cm for version with 4 fans, 48cm x 8.5cm x 3cm for version with 6 fans
- height measured from the edge of the window: 12cm
- inclination angle relative to water tiles: 45 °
- length of the power cable: 150cm
- Temperature sensor cable: 30cm
