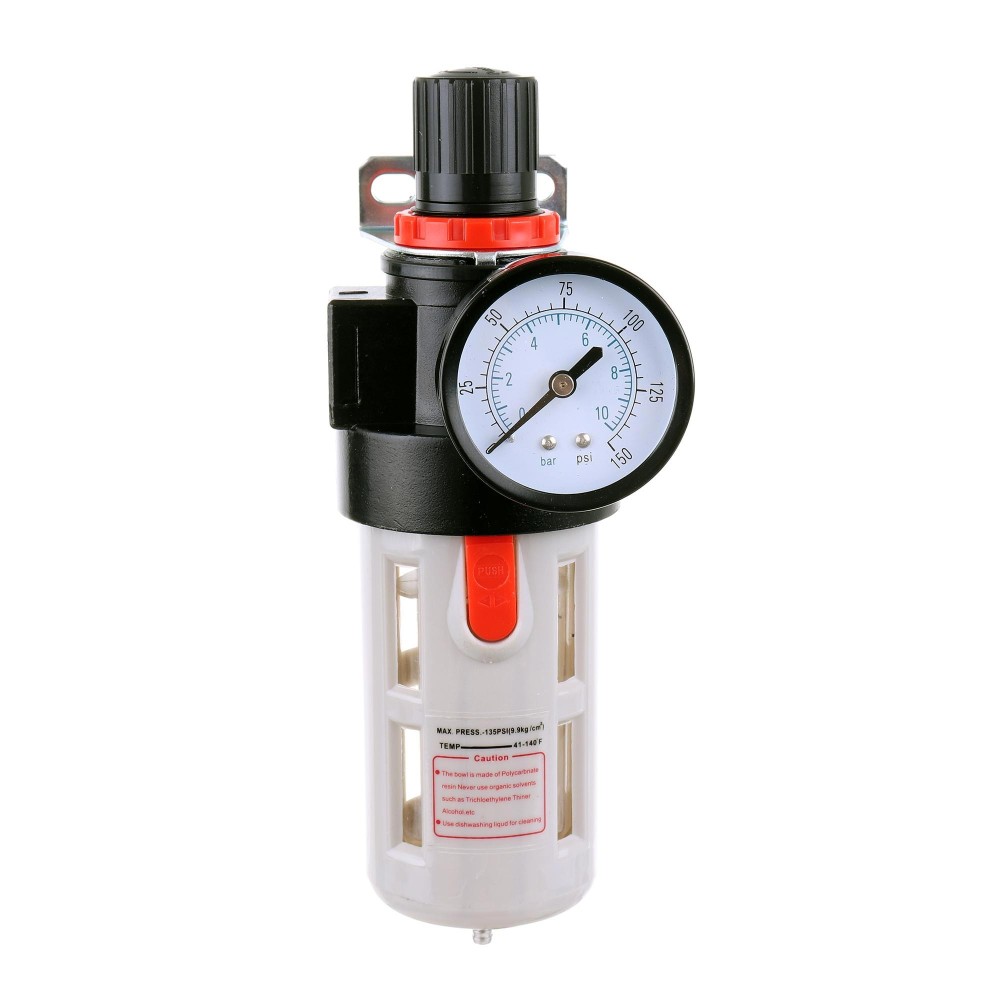

BFR4000 1/2 "Filter with a reducer

Air filter 40 microns + Reducer + BFR4000 1/2 '

The reducer filter is used for drying and adjusting the air pressure. It is an indispensable element of each pneumatic installation. Using this filter, you can prevent, inter alia; Rusting tools, drains when painting paint guns, hose damage etc. The filter has a mounting bracket, it can be installed on the wall. Emptying water consists in pulling the valve placed at the bottom of the filter.

Technical data:

• Height: 200mm
• Filtration: 0.040 mm
• Threads: 1/2 "(about 19mm wew.)
• Maximum inlet pressure: ~ 10 bar
• Regulation range: 0.5 to 8.3 bar
• Body making material: aluminum
• Tank and shield, adjustment knob: Plastic
• Maximum flow: 1400 l / min
• Tank capacity: 80 ml
