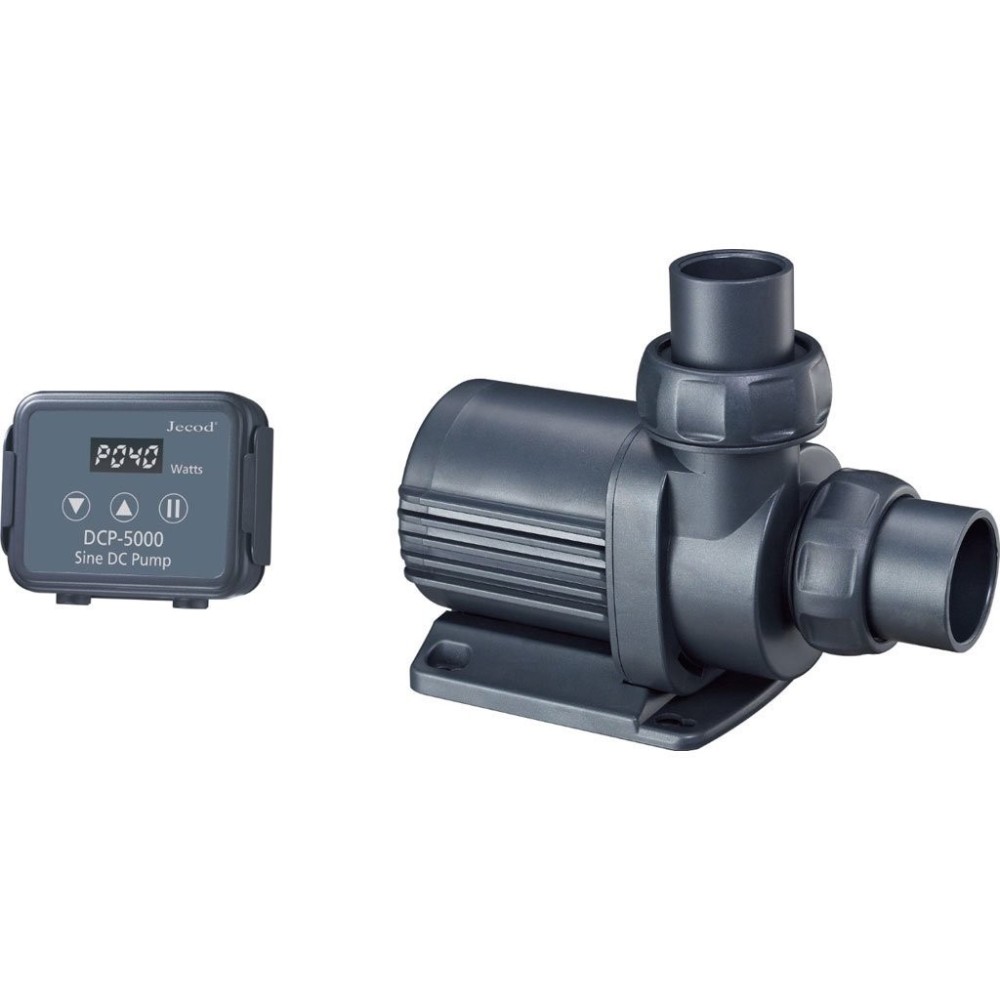

Jebao DCP-5000 with controller (max 5000l / h)

Jebao DCP-5000 with controller (max 5000l / h)

Jebao / Jecod DCP-5000 is an efficient circulation pump constructed using modern solutions and technologies. The most important feature of this model is to replace the connecting connections with muffs that can be shared to pvc installation. Pump performance is adjusted by an electronic controller.

DCP-5000 is equipped with a number of practical solutions aimed at facilitating service and providing high quality and durability. The energy-saving engine is very well muted and does not generate excessive vibrations. The drive is transferred to the rotor with a ceramic axis which significantly extends the service life of the device. In addition, the DCP-6500 construction does not contain any element made of copper. The pump has automatic protection against "dry" work, without water, thus eliminating the risk of associated failures. In addition, the device has a shut-off mechanism to power the pump if the rotor is blocked. In use, the DCP-6500 pump controller is possible to set the efficiency with which the device operates in 70 different positions (from F030 to F100). The most important differences between the DCT / DCS A DCP pumps - the use of muff instead of connection nozzles. Pumps from the DCP series are pasted directly to the PVC hydraulics by means of a silicone hose. - a controller with 70 degree adjustment - the ability to work outside water as a flow pump (without immersion in water) Jebao changes the name to Jecod (Jebao Ecological Design)

Technical data:

Power: 40W
Performance: max 5000l / h (in 70 levels)
Maximum lifting of water column: 3.5m
Dimensions: 196x104x163
The set includes 6 connection muffs with sizes 25/32 / 40mm
