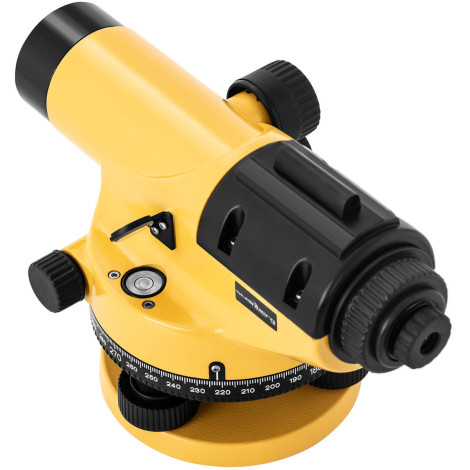

Optical leveler self-leveling with a tripod and patch - magnification 32x Wed. 38 mm

Manufacturer's code: 10030464

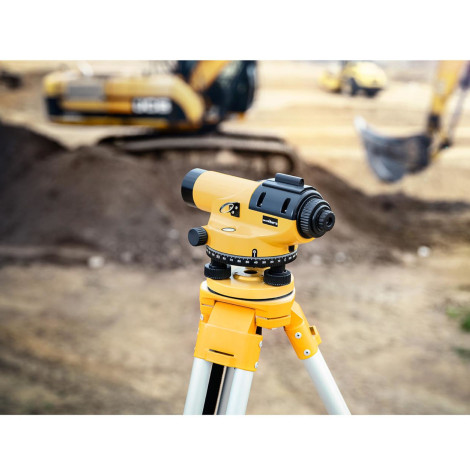

Optical leveling with a tripod brand Steinberg Systems It is ideal for checking and comparing the height of two points on the construction site. His effectiveness can convince surveyors, employees of construction companies as well as private users.
Good visibility is guaranteed thanks to Lens with a diameter of 38 mm. You can Bring up to 32 times With the aid of the knob. The minimum focal length is 0.3 m standard deviation is less than 1 mm. Magnetic compensator He is responsible for the balance of the device and suppresses the vibrations produced by the excavator or concrete mixer. Box Libella with a mirror Facilitates and accelerates the setting of the correct level of the leveler. Attached accessories significantly facilitate work. The tripod has Adjustable height, the leveling patch has a 5-segment construction, after unfolding it is 5M. Front Strip has a scale expressed in cm with a surveying division (E) while the back has values expressed in mm.
Product features:

• - Reliability- housing, tripod and patch made of solid aluminum,
• - Precision - standard deviations are 1 mm,
• - The effectiveness of - 33-fold magnification + minimum focal length - 0.3 m,
• - Practicality - the built-in magnetic compensator automatically levels the instrument,
• - Convenience - Luster box libella allows a seamless level setting.

Technical parameters:

• - Model - SBS-Lis-32/38
• - catalog number - 10030464
• - article - New

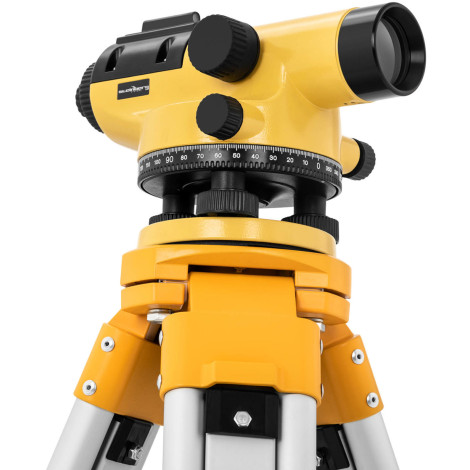

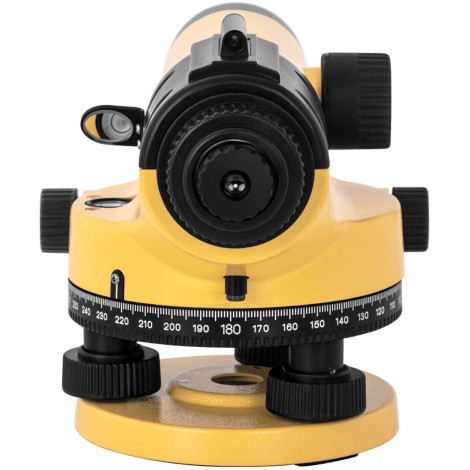

Optical leveler

• - housing material - Aluminum
• - standard deviation - 1 mm
• - picture - Straight
• - zoom - 32-fold
• - Lens aperture diameter - 38 mm
• - field of view - 1Deg 20 # 8217
• - Minimal focal length - 0.3 m
• - Compensator - Magnetic damping
• - Compensator range - ± 15 # 8217
• - Setting the compensator - Less than 2 seconds
• - Precision of the compensator - ± 0.5 # 8221/1 # 8217
• - Libella sensitivity - 8 # 8217/2 mm

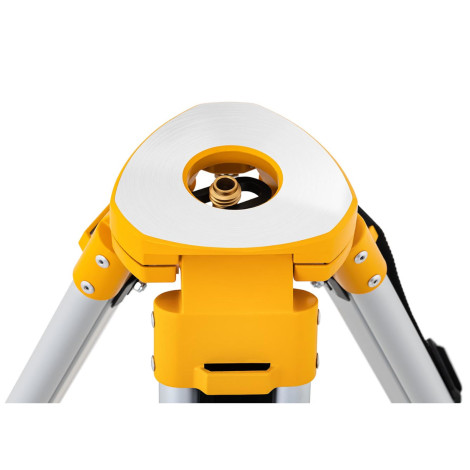

Tripod

• - height - 1050-1650 mm
• - clamp - Zakręcany
• - external head dimension - 120 mm
• - Internal dimension of the head - 45 mm

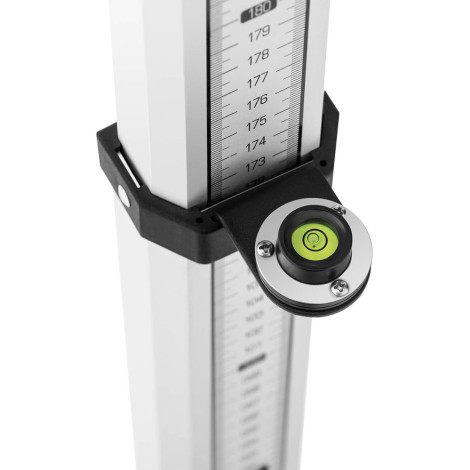

Niwilathive

• - maximum length - 5 m
• - number of sections - 5
• - deviation with each metro - ± 0.5 mm
• - scale - Front: CM / E, Rear: MM
• - Transport length - 1230 mm

General dimensions

• - Dimensions (DXSXW) - 286 x 286 x 180 cm
• - weight - 6.6 kg
• - Dimensions of shipment (DXSXW) - 126.5 x 24.5 x 21.5 cm
• - shipping weight - 8.35 kg

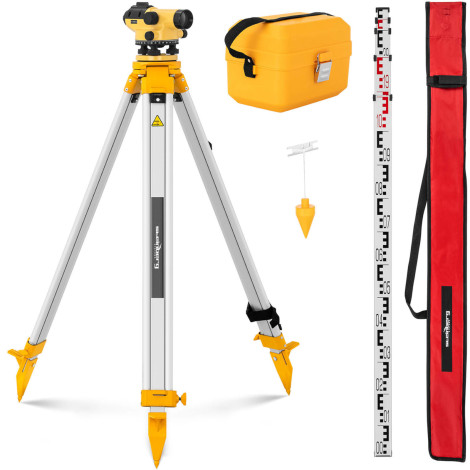

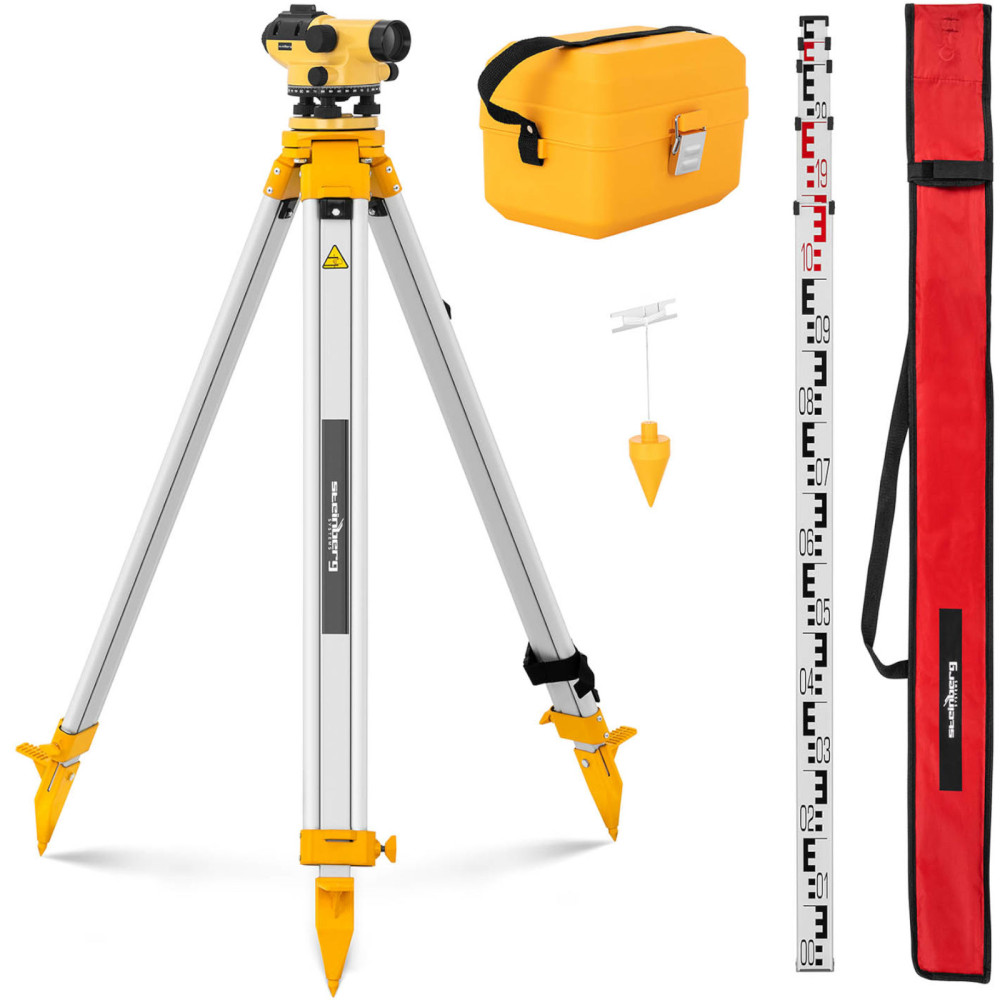

Included:

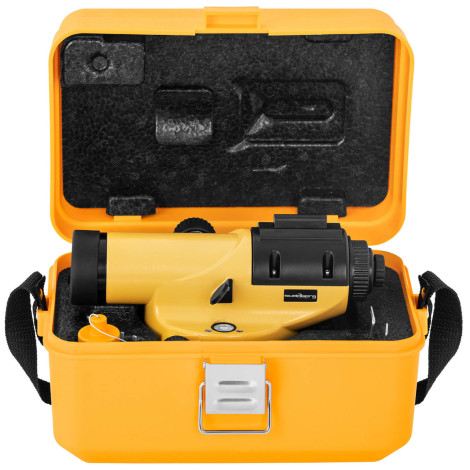

• - Leveling with a suitcase
• - tripod
• - Leveling patch
• - string pion
• - EN statement
