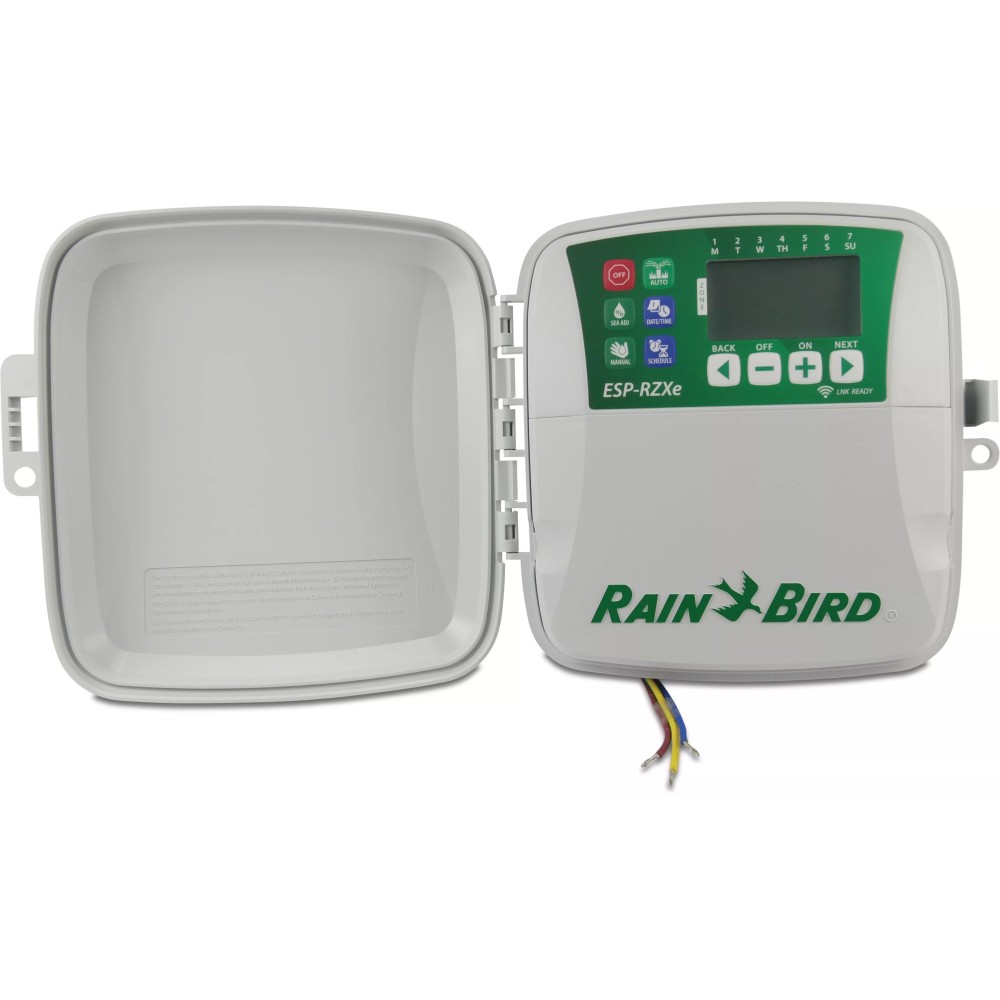

RZXE8i irrigation controller 8 sections

The ESP-RZXE controller offers a zone-based programming - this option is easier to understand for unpublished users. Thanks to the functions that enable flexible schedules, the ESP-RZXE controller is ideal for various applications such as spraying systems for private applications and selected commercial uses.

Ease of use
The ESP-RZXE controller has been designed for ease of use. Creating schedules using the zone enables independent configuration of each solenoid valve, thanks to which there is no need to explain to users of "programming" principles, which almost eliminates the need for telephone support. A large LCD display simultaneously displays all information relating to programming a given section. A simple graphical operating interface is easy to explain and provides convenient access to each driver function.

Support for LK WiFi
In conjunction with the WiFi Rain Bird LNK WiFi module (sold separately), you can receive online weather, which will adjust the irrigation schedule every day, providing up to 30% water savings.

Driver properties:

• A simple operating interface is easy to explain and provides access to each driver function on one screen
• Requires only two mounting screws
• A large LCD display with an easy-to-use user interface
• Weather sensor signal input with program omitting function
• Run circuit of the main electrical electrical or pump
• Non-volatile memory (100 years)
• Possibility of programming when powered from battery

Schedule creation functions:

• Schedules based on zones allow you to assign independent schedules to any zone (within the zone you can individually regulate working time, start time and irrigation days))
• During the initial configuration, the Contractor Rapid Programming ™ function automatically copies the start times and the days of irrigation from zone 1 to all other zones
• 6 independent start times on the zone
• 4 Willing day options: Selected days of the week, odd calendar days, even calendar days, cyclically (every 1 -14 days)
• Manual activation of all zones or a single-demand zone

Advanced functions:

• Diagnostic circuit breaker
• Contractor Rapid Programming ™ and "Copy previous zone" accelerate the preliminary configuration
• Write and restore the Contractor Default ™ default settings
• Weather for the weather sensor
• Weather for the weather sensor for individual zones
• Support for LK WiFi

Technical data:

• Section: from 0 to 199 minutes
• Seasonal regulation: from -90% to + 100%
• Independent schedule for each section
• 6 start times for each section
• Cycles of the program days, m.in. Selected days of the week, odd, even and cyclic dates
• Manual activation of the irrigation of a single zone
• Manual activation of all zones

Electric parameters:

• International models: 230 VAC ± 10%, 50 Hz
• Exit: 24 VAC, 650mA.
• Reserve power supply: 2 AAA batteries support the clock and date, and the non-volatile memory stores the software parameters

Dimensions of the controller:

• Width: 16.9 cm
• Height: 16.3 cm
• Depth: 3.9 cm
