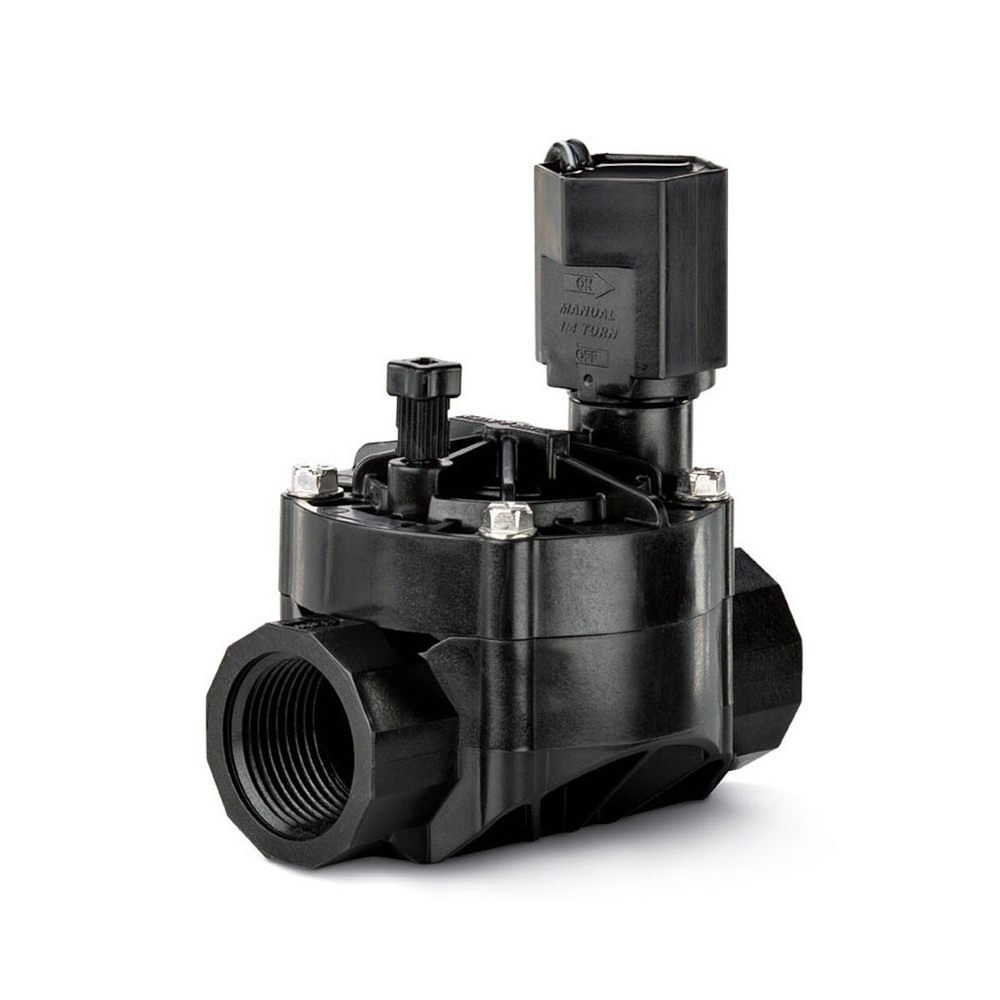

Electromagnetic valve RAIN BIRD 100-HV

Properties:

• Patented, eccentrically placed by the buna-N scaling membrane with a self-cleaning input water filter with an accuracy of 200 microns and a non-stainless steel spring - eccentric placement provides Smooth closing and reduces hydraulic impact
• Thanks to the use of only four resistant, unquestionable universal screws in the cover, which require half of the turnover to unscrewing, servicing the valve is easier and takes piercing (at least twice as fast as compared to products competitive)
• Polypropylene body reinforced with fiberglass ensures durability
• Compact design with a radius of rotation 2.54 ", which allows dense group assembly
• Normally closed on the contrary to the flow direction
• External hand rinsing and venting a system from dirt and pollution during installation and starting
• Internal manual rinsing and venting without the need to run spraying
• After installing the filter with accuracy 200 on the tributary side, it can work in low flow systems and drip irrigation systems

Technical data:

• Pressure: 1.0 to 10.3 bar
• Flow: 0.05 to 6.82 m³ / h. In the case of flow below 0.68 m³ / h or applications on any Xerigation® system, you must install a mesh filter 200 on the tributary side
• Working temperatures:
  Water temperature up to 43 ° C, ambient temperature up to 52 ° C

Electric parameters:

• X-50/60 Hz solenoid valve (cycles per second)
• Initial boot current: 0.290 A at 60 Hz
• Sustainability: 0.091 A at 60 Hz
• Coil resistance: 70-85 ohm

Dimensions:

• Height: 11.7 cm
• Height (MB): 11,43 cm
• Length: 11.2 cm
• Length (MB): 14.4 cm
• Width: 7.9 cm
