Mechanical laboratory stirrer with 40 L 3000 rpm clamps

€642.67
Tax included
Obecnie brak na stanie
Payment
discover visa googlewallet paypal mastercard americanexpress
  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

Manufacturer's code: 10031375

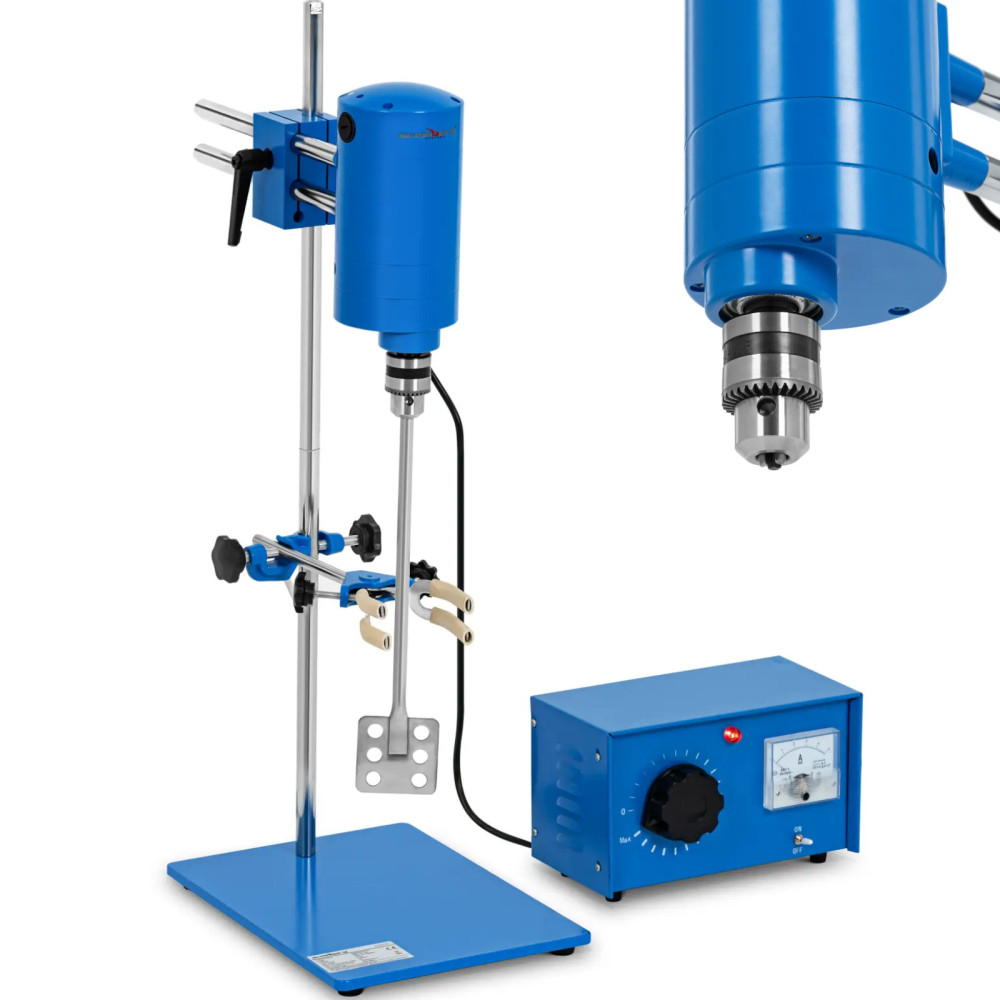

Mechanical stirrer brand Steinberg Systems Reliably mixes even 40 l of substances with high viscosity with adjustable rotational speed up to 3000 rpm. The rotational speed is set using the voltage controller. Torque increases at low speeds. This means that the agitator also effectively mix large amounts of high viscosity. Solid aluminum housing Provides a quiet operation. The efficient stirrer was created for professional use, will work in the pharmaceutical, biology and chemistry companies, laboratories, as well as in education and during various studies. Cast iron base with dimensions 215 x 310 mm Provides stability during mixing. The mixing unit was placed on a tripod on which the working height is selected. The flexible vessel clamp is designed for medium-sized containers. To obtain an optimal adjustment to the agitator, set the height, depth and angle of the agitator. Use rods with diameter for mixing 2 - 10 mm, which is easily replaced in the rotary head. The mixing rod is in the scope of delivery.
Product features:
  • - at low speeds, the torque will increase, so you can also mix liquids with high viscosity and in quantities up to 40 L,
  • - the mixing rate is set continuously up to 3000 rpm,
  • - Aluminum housing enables precise and quiet mixing with the upper agitator, even with continuous operation,
  • - the mixer clamp head is designed for bars with a diameter of 2 - 10 mm, which can be replaced without a problem,
  • - Laboratory stirrer and vessels are set on the desired height or at an angle thanks to terminals.

Technical parameters:
  • - catalog number - 10031375
  • - article - New
  • - Model - SBS-Mr-120
  • - frequency [Hz] - 50/60
  • - Material - Stainless steel, aluminum, carbon steel
  • - Color - Blue
  • - Tension [V] - 220
  • - power [W] - 510
  • - maximum torque [Nm] - 1.95
  • - platform size [cm] - 215 x 310
  • - Rod size - Ø2 - 10 mm
  • - viscosity [mPas] - 100000
  • - temperature range [deg C] - 0 - 40
  • - Maximum speed [obr./min] - 3000
  • - Mixing rod material - Stainless steel
  • - Mixed substance volume [l] - 40
  • - Dimensions (DXSXW) - 38 x 45 x 73 cm
  • - weight - 13.58 kg
  • - Dimensions of shipment (DXSXW) - 49 x 52 x 20 cm
  • - shipping weight - 15.4 kg

Included:
  • - Mechanical stirrer

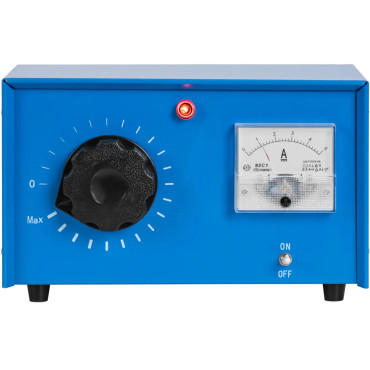

  • - voltage regulator
  • - handle
  • - Mixing rod
  • - A set of vessel clamps
  • - Power cord
  • - 2 carbon brushes
  • - clamping element
  • - 12/14 flat key
