Manufacturer's code:

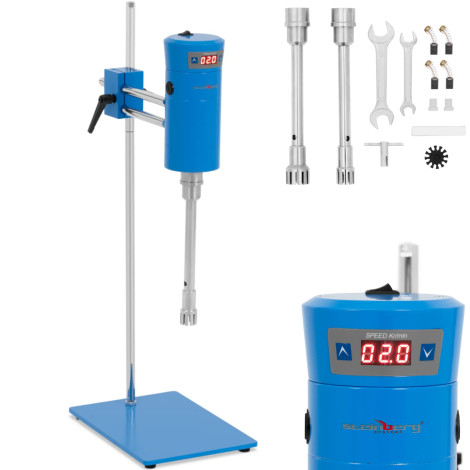

10031381Brief homogenizer Steinberg Systems It allows you to process shredded raw materials in liquids through further homogeneization and effectively use them in research, product development or quality assurance. The table device has a tripod whose height is set depending on the vessel. A large base provides enough space for different dishes, as well as stability during operation. Strong and compact
510 engine engine There was a durable housing with a pressure cast aluminum. It will reach a rotational speed
up to 18000 rpm.
LED display It allows precisely determine the value appropriate to the substance. Working heads made of high quality stainless steel are easy to clean, resistant to corrosion and do not react with chemicals, acids and principles. This means that they will meet all hygiene requirements of laboratories. To clean the heads, just disconnect them from the connector. Thanks diameter
2.8 and 3.6 cm Ideally suited for samples with volume
from 100 to 5000 ml. The device can be used for efficient mixing of viscous liquids in the laboratory, emulsifying the particles of active ingredients and the processing of cosmetic and liquid food emulsions.
Product features: - - Easy head replacement in a few steps using the connector,
- - a powerful and compact 510 motor in reaches speed up to 18000 rpm,
- - all values can be set using the LED display on the homogenizer,
- - individual elements were made of high quality stainless steel, are easy to clean, corrosion resistant and do not respond to chemicals, acids and principles,
- - The rotary homogenizer is intended for a capacity of 100 to 5000 ml.
Technical parameters: - - catalog number - 10031381
- - article - New
- - Model - SBS-Uh-150
- - frequency [Hz] - 50/60
- - Material - Stainless steel, aluminum, carbon steel
- - Color - Blue, gray
- - Tension [V] - 220
- - Display type - Led
- - torque [Nm] - 0.96
- - Dimensions of the base [mm] - 215 x 310
- - power [W] - 510
- - Maximum speed - 18000 rpm
- - capacity [ml] - 100 - 5000
- - Operating mode - S1 (continuous work)
- - Power cord - 1.5 m
- - Maximum output power - 300 W
- - Dimensions (DXSXW) - 35 x 21.5 x 79.5 cm
- - weight - 10.45 kg
- - Dimensions of shipment (DXSXW) - 58 x 34 x 19 cm
- - shipping weight - 11.8 kg
Included: - - Homogenizer
- - Wednelling head. 28 mm
- - Wednelling head. 36 mm
- - 2 flat keys (12 x 14 mm, 17 x 19 mm)
- - 2 carbon brushes
