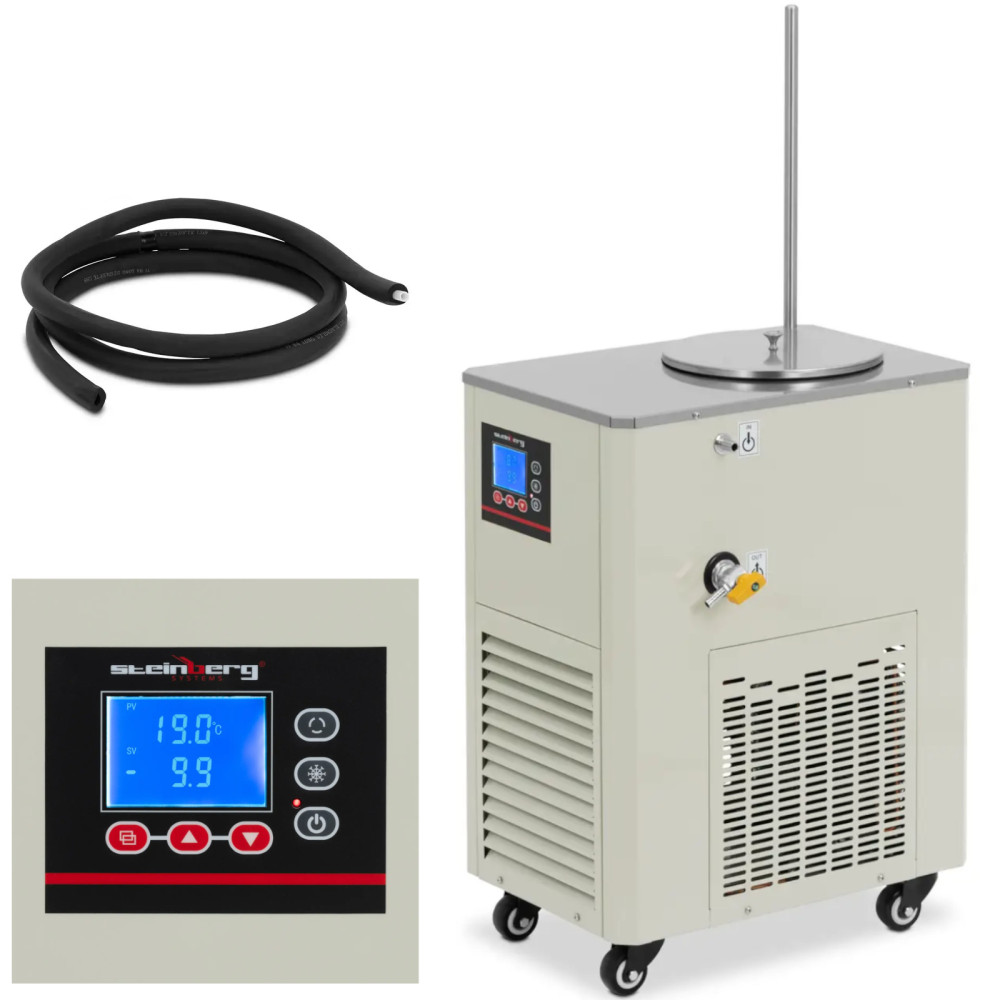

Cooling circulator for the compressor 640 industry in 20 l / min

Manufacturer's code: 10031046
Refrigerated Circulator Brand Steinberg Systems It will work for cooling equipment in a medical laboratory, in the chemical industry or in food production. It allows you to maintain a specific temperature of precision devices, such as rotary evaporators, or to reduce heat generated by lasers. With a short cooling and efficiency time and intelligent control system, it will be an efficient and economical alternative to cooling with water. The refrigerator is delighted with high Accuracy to 0.2DEG C. All values can be easily read using an intuitive control panel with LCD display. The PID controller controlled by a microprocessor guarantees precision temperature from -10Deg C to 20Deg C. Integrated compressor uses environmentally friendly Cooling factor R290, which ensures fast and reliable cooling. Circulation speed 20 l / min enables reliable and even lowering of all connected devices. The device has been made of stainless steel and galvanized steel sheet. It is resistant to corrosion and therefore ideally suited for use in laboratories or other environments in which liquids are used. The device is also protected against overheating and overcurrent. Thanks to the compact design, there are few places.
Product features:

• - the microprocessor controlled PID controller will provide a constant temperature with an accuracy of +/- 0.2DEG C in a refrigeration circulator,
• - intuitive circulator handling is due to the LCD display and easy to clean the stainless steel tank,
• - the operation of the refrigerator is based on a 640 W compressor and an environment-friendly refrigerant R290,
• - ensures even, continuous cooling thanks to circulation 20 l / min,
• - it can be connected to various equipment in a laboratory such as rotary evaporators, fermentation and lasers,
• - High-quality stainless steel elements protect the cooling circuit against corrosion, and overheating and overheating protection will provide additional safety.

Technical parameters:

• - catalog number - 10031046
• - article - New
• - Model - SBS-Lcc-6000h
• - Material - Stainless steel, galvanized iron sheet
• - Color - White
• - Display - LCD
• - Tension [V] - 110 - 220
• - current [A] - 10
• - Cooling performance [W] - 280 - 1328
• - Relative humidity [%] - ≤60
• - Tank dimensions [cm] - Ø 25.5 x 13
• - raising the circulation pump [m] - 5 - 7
• - temperature range [deg C] - -10 - 20
• - operating temperature range [deg C] - ≤25
• - Cooling factor - R290
• - delayed start - So
• - Protection against overheating - So
• - Protection against exceeding the maximum current - So
• - Power compressor - 640
• - capacity - 5 l
• - circulation pump flow - 20 l / min
• - Circulation pump power - 100w
• - Temperature accuracy - 0.2 DEG C
• - Dimensions (DXSXW) - 48 x 40.5 x 101 cm
• - weight - 38.85 kg
• - Dimensions of shipment (DXSXW) - 57 x 43 x 82 cm
• - shipping weight - 50.5 kg

Included:

• - refrigeration circuit
• - insulating hose
• - angular valve
• - Safety cover
• - fuse
