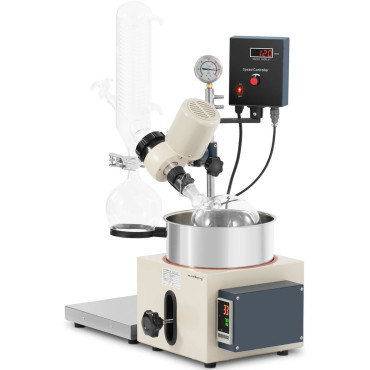

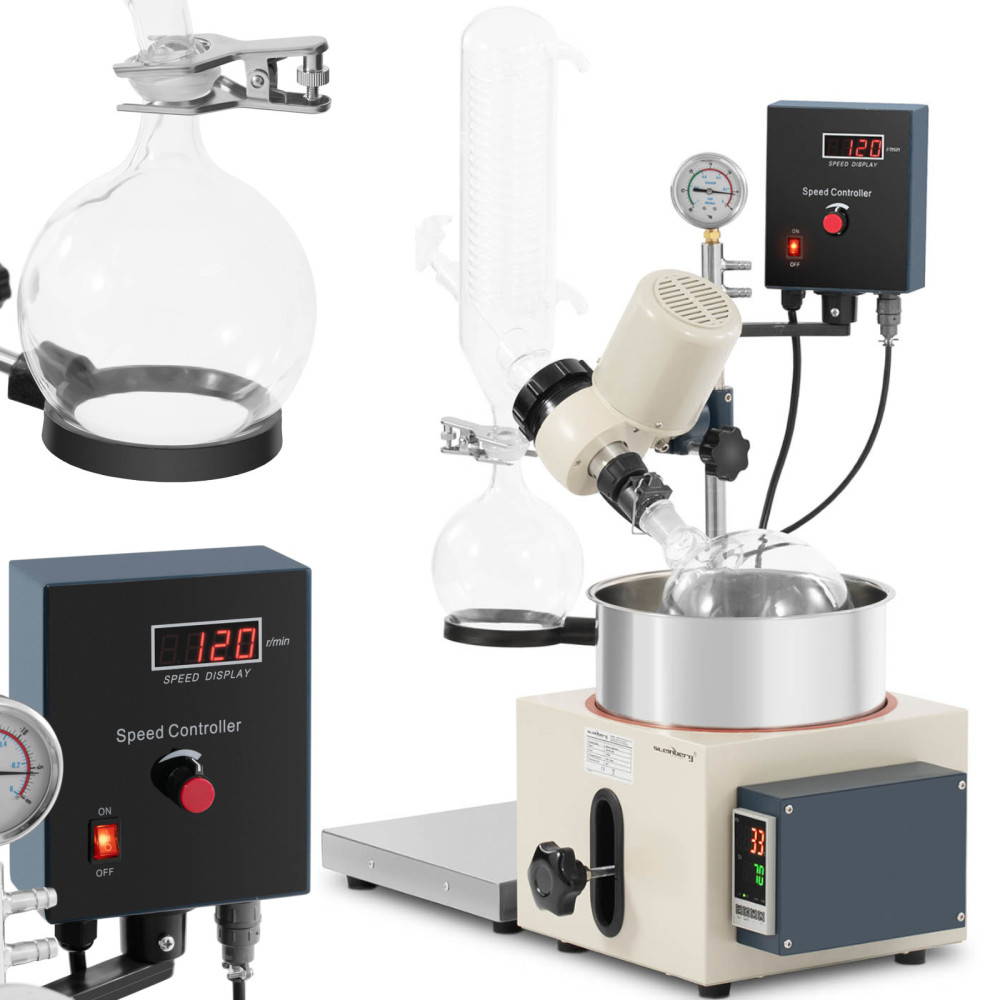

Rotary vacuum extract for Laboratory 1 L 120 rpm 40 W

Manufacturer's code: 10030663
Vacuum cleaner brand Steinberg Systems Ideally suited the laboratory in the chemical, pharmaceutical industry or research and research industry to evaporate the solvent through heating under reduced pressure. Particularly suitable to concentrate and cleanse easily decomposing denatured biological productswhich is not easy to react with various substances. High vacuum level - 0.098 MPa Provides high efficiency of equipment. The device is equipped with vacuum controller. The temperature range is 0-39deg C with an accuracy +/- 1DEG C. Efficient effect the condenser Translate to a high recovery indicator. Digital displays They work with a speed (0-120 rpm) and the temperature of the heating bath, which facilitates the control of the distillation process. The excavator has a temperature limiter. The power valve can use the continuous power supply that ensures a large condensation surface. The bath is equipped with ergonomic Moving handles, as well as a manual lifter to the exact setting of the flask. Power engine 40 W It has little sizes. It has an overload protection function. A stainless steel bath tank facilitates the operation and maintenance of a vacuum evaporator.
Product features:

• - Performance - a large amount of distillate thanks to a 1 L collector with a capacity of a capacity,
• - The accuracy of - Precise temperature setting,
• - Strength - a strong engine ensures a smooth operation,
• - Precision - Fixed speed for optimal results.

Technical parameters:

• - Model - SBS-Rv-2000
• - Tension [V] - 230
• - temperature accuracy [deg C] - +/- 1
• - temperature range [deg C] - 0-99
• - rotational speed [obr./min] - 120
• - Material - SS304 bath material, combined bath material and teflon + GG-17 glass
• - frequency [Hz] - 50
• - engine power [W] - 40
• - receiving flask [l] - 1
• - rotary flask [l] - 5
• - Bathmobility [W] - 1500
• - Bathtub capacity [l] - 5
• - Evaporation rate [l/h] - N / a
• - Lifting [mm] - 120
• - vacuum level [MPa] - 0.098
• - Air pipe - Length 678 mm, from = 14.5 mm, ID = 8.5 mm
• - Dimensions (DXSXW) [cm] - 73 x 33 x 100
• - weight [kg] - 25
• - Dimensions of shipment (DXSXW) [cm] - 63 x 49 x 55
• - shipping weight [kg] - 32

Included:

• - vacuum extract
• - Main bracket - set
• - Engine - set

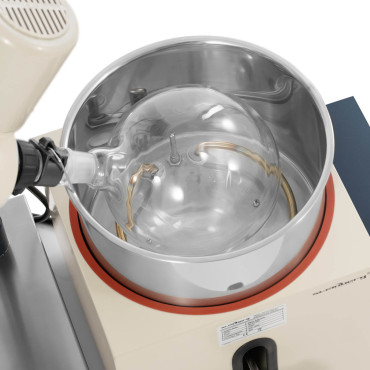

• - Water bath - set
• - 5 L rotary rotary flask

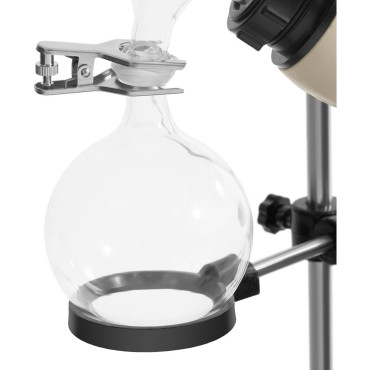

• - 1 L collectal flask
• - Glass cord
• - Power valve 19 #

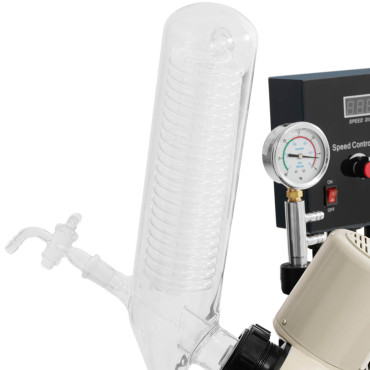

• - main condenser Ø85 x 460 mm / clip for ball mill
• - Ø25 mm oil gasket - set
• - Small PTFE Ø50 mm washer
• - Vacuumometer
• - vacuum lamp
• - Rotary washer - set
• - Handle on the collector
• - PTFE cable - set
• - Condenser clip - KIT

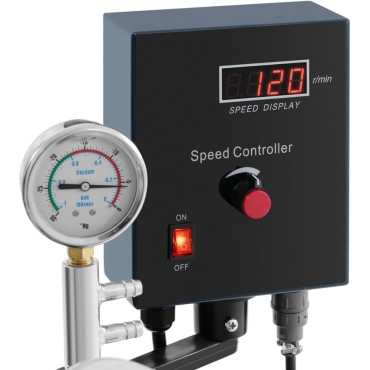

• - Regulator
• - O-ring 43 mm
• - Hexagon key
• - fuses - 2 pcs (16 A and 3 a)
• - Screws - 5 pcs.
• - User manual
