Laboratory cooling circuit for temperature -20 - 20 C 20 l / min 495 W

€1,431.18
Tax included
Obecnie brak na stanie
Payment
discover visa googlewallet paypal mastercard americanexpress
  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

Manufacturer's code: 10030664
Cooling circulator brand Steinberg Systems This high-quality laboratory device used for internal and external temperature control. Equipment you can connect m.in. for an electron microscope, a rotary vacuum distillator or a glass reactor. It is also suitable for cooling lasers and incubators with water jacket. High control accuracy is due to Digital PID controller with a microprocessorwhich increases the heating / cooling level depending on the temperature. Convenient adjustment in the range -20 til 20Deg C It is possible due to the display LCD. Tank stainless steel It's easy to keep clean. In addition, functions have been used rust and coolant pollution.
Product features:
  • - Microprocessor controlled PID controller,
  • - Constant temperature with Accuracy +/- 2DEG C,

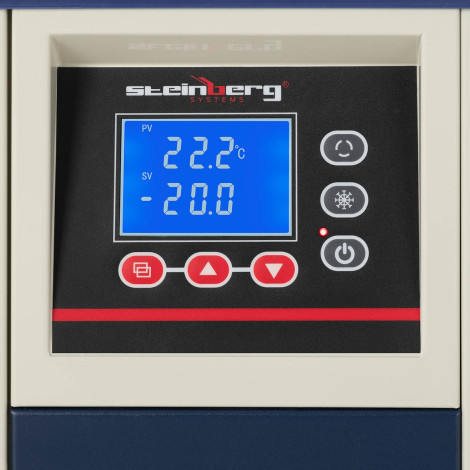

  • - Display LCD,
  • - tank with stainless steel,
  • - Lowest temperature to -20deg C,
  • - Compact design,
  • - Protection Before overheating.

Technical data:
  • - catalog number - 10030664
  • - article - New
  • - producer - Steinberg Systems
  • - Model - SBS-Lcc-3000
  • - Tension [V] - 230
  • - Display - LCD
  • - User manual - So
  • - Protection against overheating - So
  • - Tank dimensions [cm] - ⌀180x130
  • - temperature accuracy [deg C] - +/- 2
  • - Protection against exceeding the maximum current - So
  • - temperature range [deg C] - -20 til 20
  • - current [A] - 2.25
  • - Material - Stainless steel 304 / Q235
  • - operating temperature range [deg C] - ≤25
  • - capacity [l] - 3
  • - frequency [Hz] - 50/60
  • - Relative humidity [%] - ≤60
  • - Power compressor [W] - 495
  • - Power compressor [KM] - 1
  • - Circulating pump power [W] - 100
  • - circulating pump flow [l/min] - 20
  • - Cooling performance [W] - 10DEG C-1150 W, 0DEG C-880 W, -10deg C-600 W, -20deg C-3200 W
  • - raising the circulation pump [m] - 5-7
  • - Lowest temperature [deg C] - -20
  • - delayed start - So
  • - Dimensions (DXSXW) [cm] - 42 x 23 x 50
  • - weight [kg] - 27
  • - Dimensions of shipment (DXSXW) [cm] - 49 x 30 x 65
  • - shipping weight [kg] - 41

Included:
  • - Cooling circulator,
  • - tube,
  • - fuse - 2 pcs,
  • - Operating instructions.
