Manufacturer name:
SEC-ĺş-23 Manufacturer number:

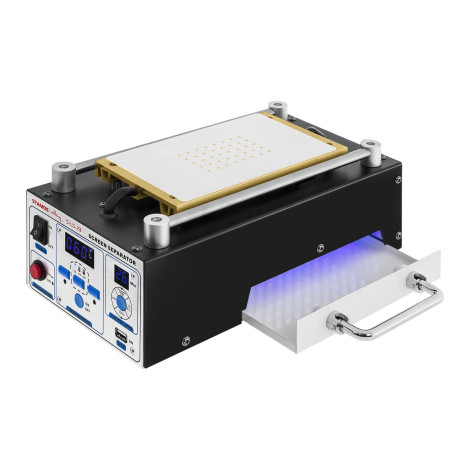

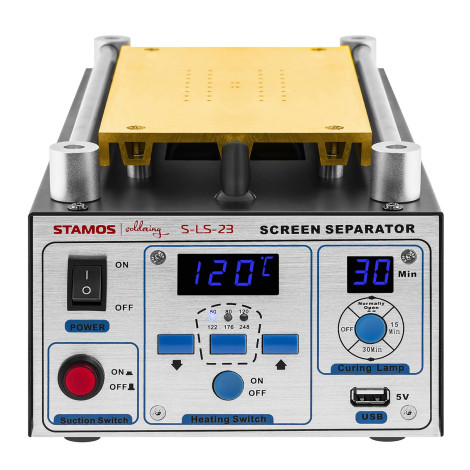

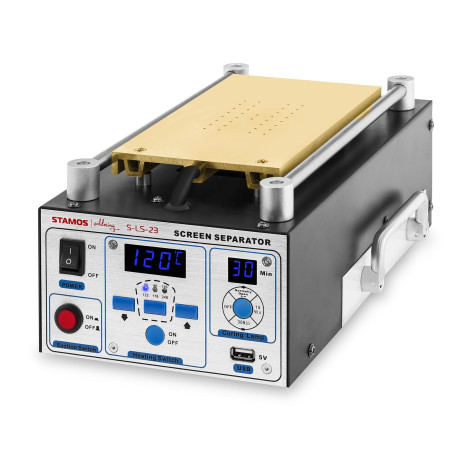

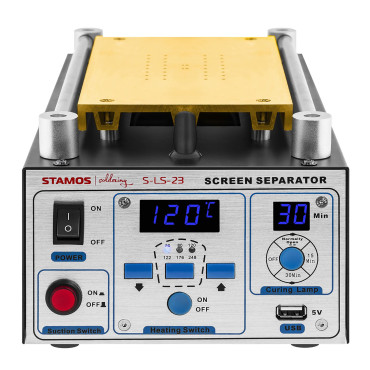

10020145 LCD Separator brand Stamos Soldering It will work in repairs of touch screens of equipment up to 8 inches, e.g. tablets and smartphones. The S-LS-23 model is equipped with a vacuum suction plate (14 W, 0.05 MPa) to ensure stability during operation. The temperature is adjusted in 3 modes to choose from: 50, 80 or 120DEG C. The device has a USB 5V port and a drawer with a UV lamp, which is used to curing screens. A legible control panel has been provided with LED displays.
Features and functions:- Up to 8 inches

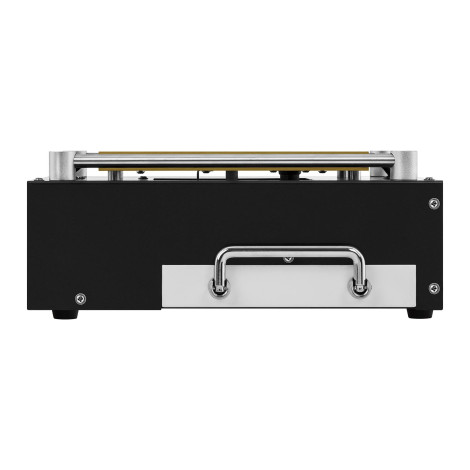

- Drawer with UV lamp
- Podpressure gripper
- Temperature 50, 80 and 120DEG C
- 5V USB port
- LED displays
Technical parameters: - - Model - SEC-ĺş-23
- - catalog number - 10020145
- - article - New
- - tension - 230 V / 50 Hz
- - power - 370 in
- - Temperature range - 50 - 120DEG C
- - temperature stability - ± 2Deg C
- - UV lamp power - 16 W
- - suction pressure - 0.05 MPa

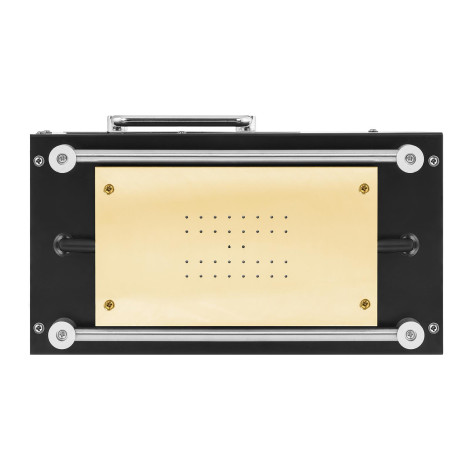

- - Aluminum dimensions of the plate - 20 x 11 cm
- - USB output power - 5 V, 1 A
- - Aluminum grounding - <2Ω
- - Display - Led
- - Dimensions (DXSXW) - 31 x 17 x 12.5 cm
- - weight - 3.25 kg
- - Dimensions of shipment (DXSXW) - 38 x 21 x 18 cm
- - shipping weight - 3.7 kg

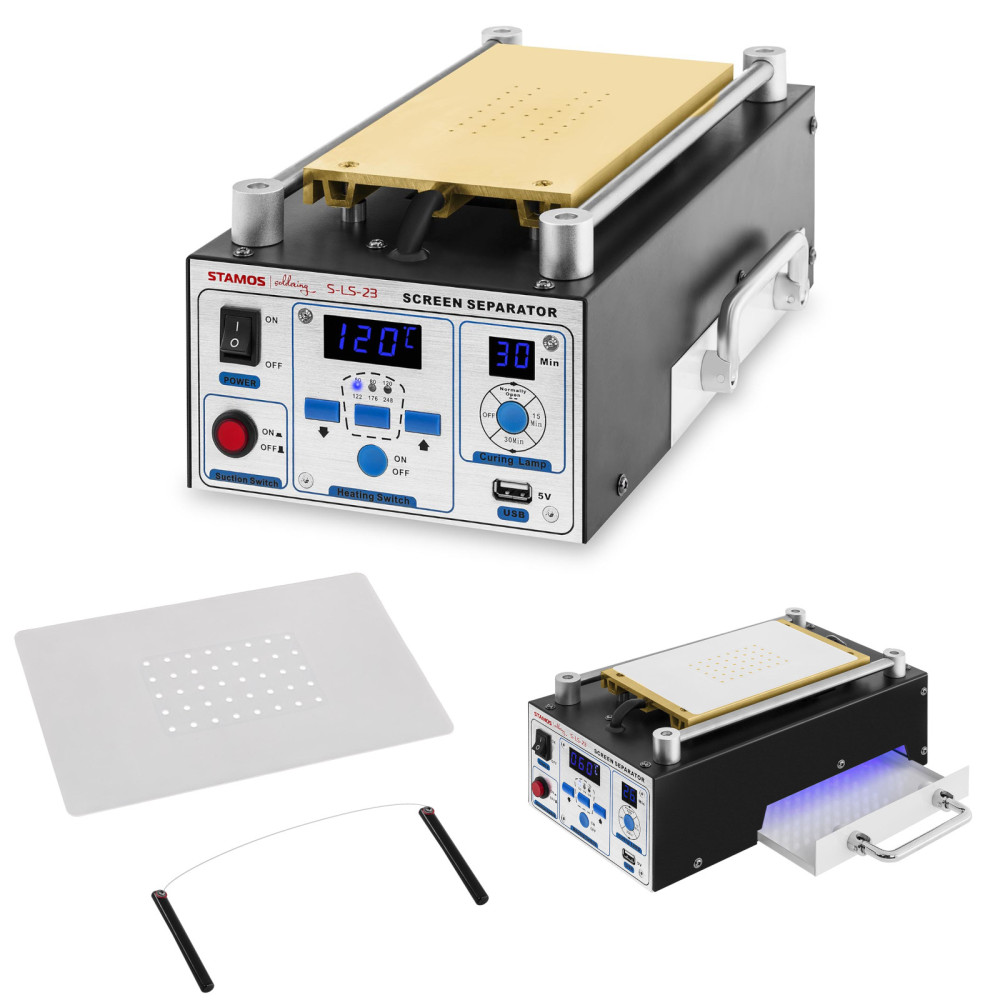

Included:- S-LS-23 LCD separator

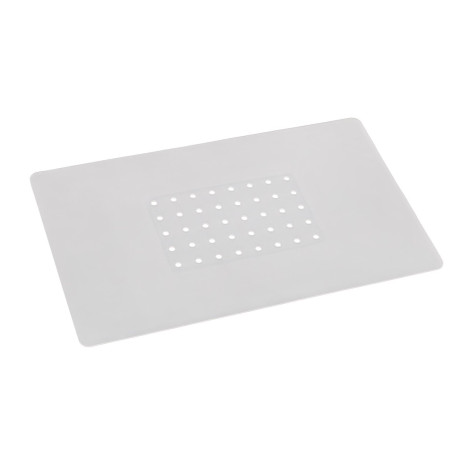

- rubber mat

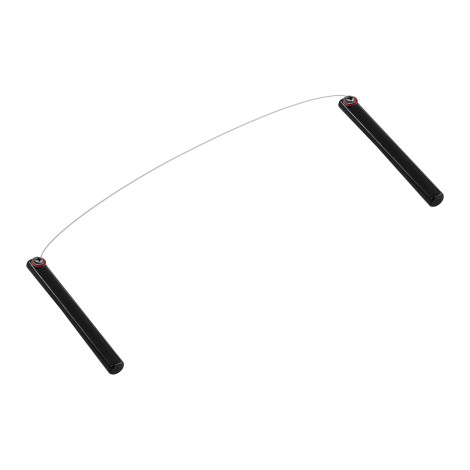

- a set of separating tiles
- Power cord
- User manual
