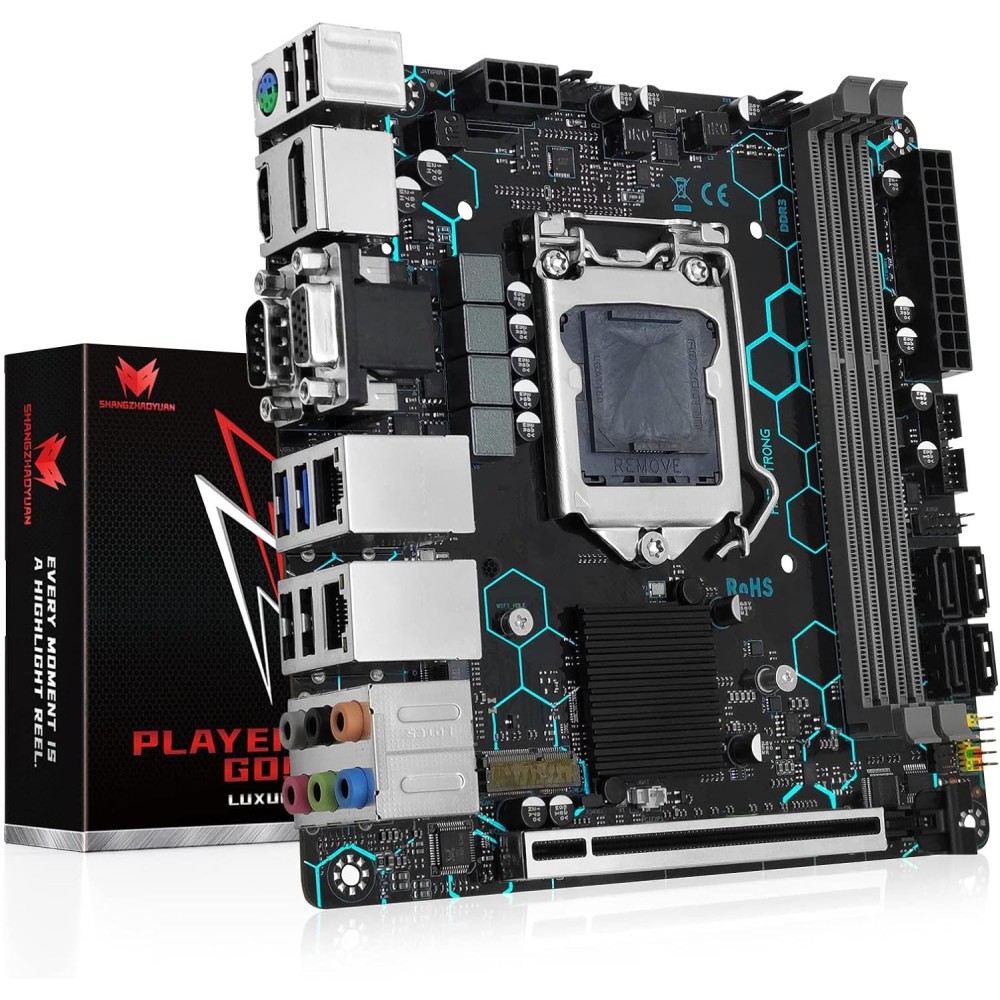

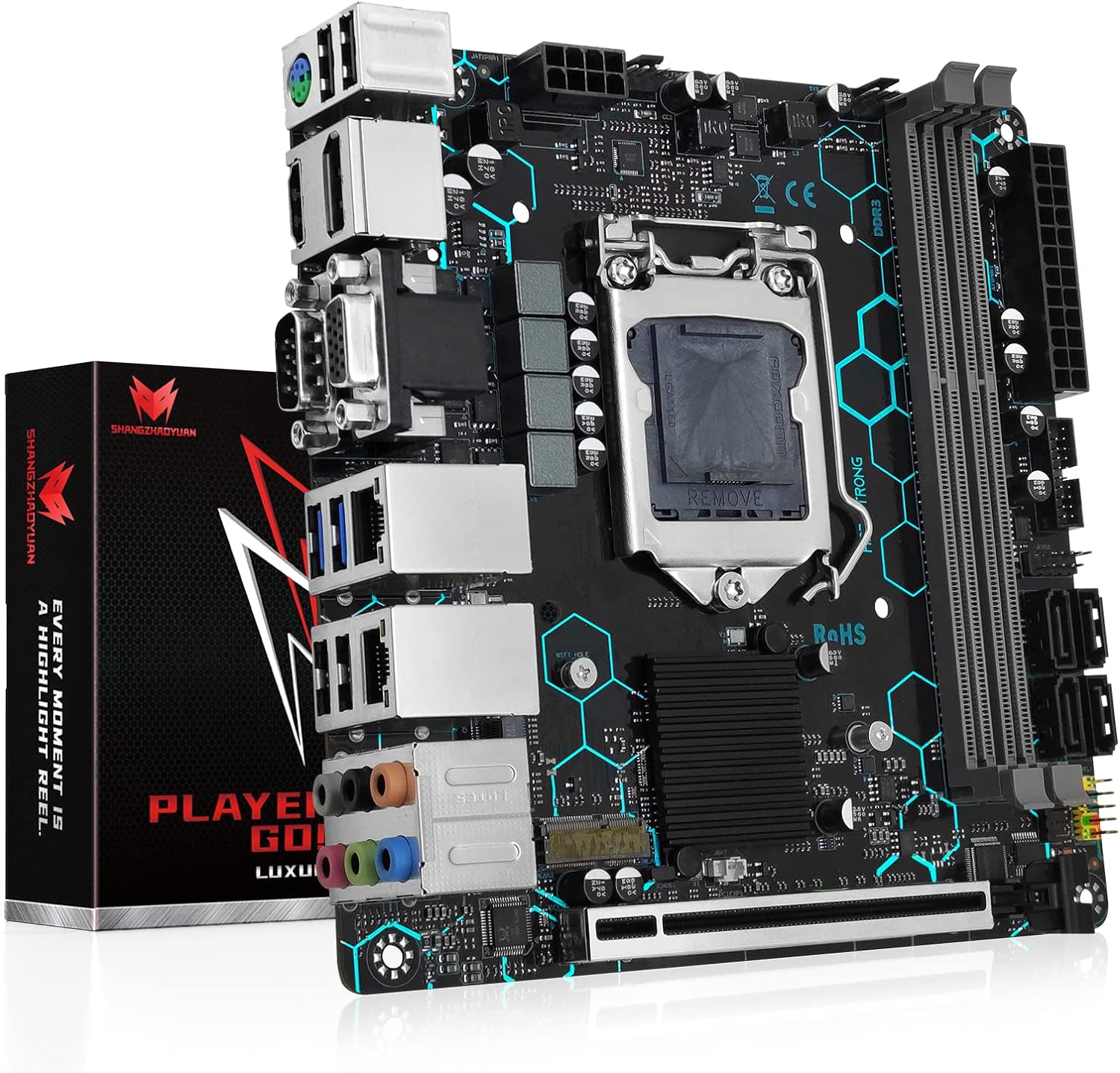

Motherboard Shangzhaoyuan H97 Strong LGA 1150, Intel Core i7 / i5 / i3 / E3

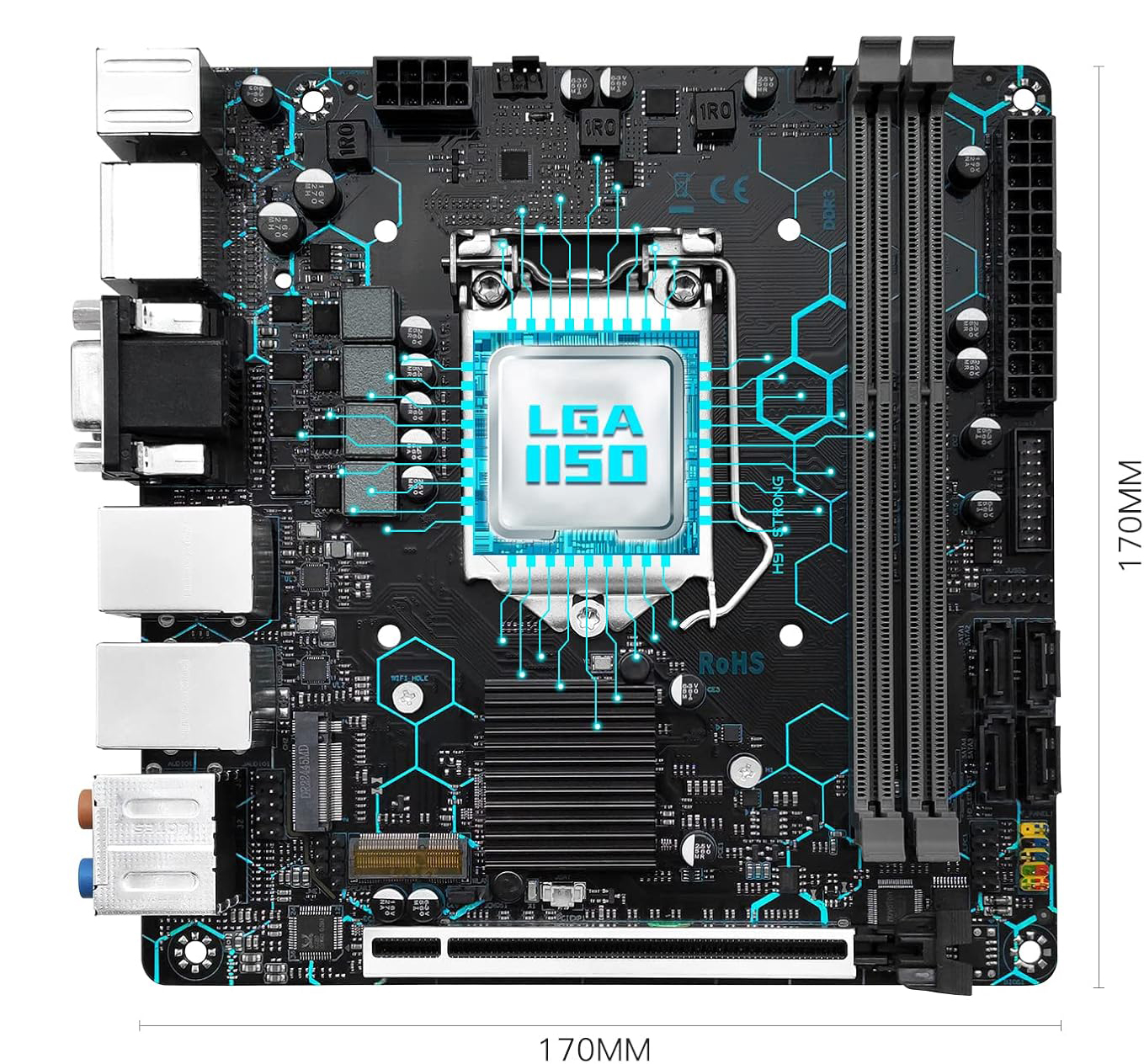

Motherboard with LGA 1150 nest: The motherboard to the Intel computer is designed with a LGA1150 socket, supports the Intel 4 generation Core I7 / I5 / I3 / E3 processors (eg Core I5 4570, I5 4690K, I7 4790, I7 4790K, I3 4130, I5 4460, etc.).

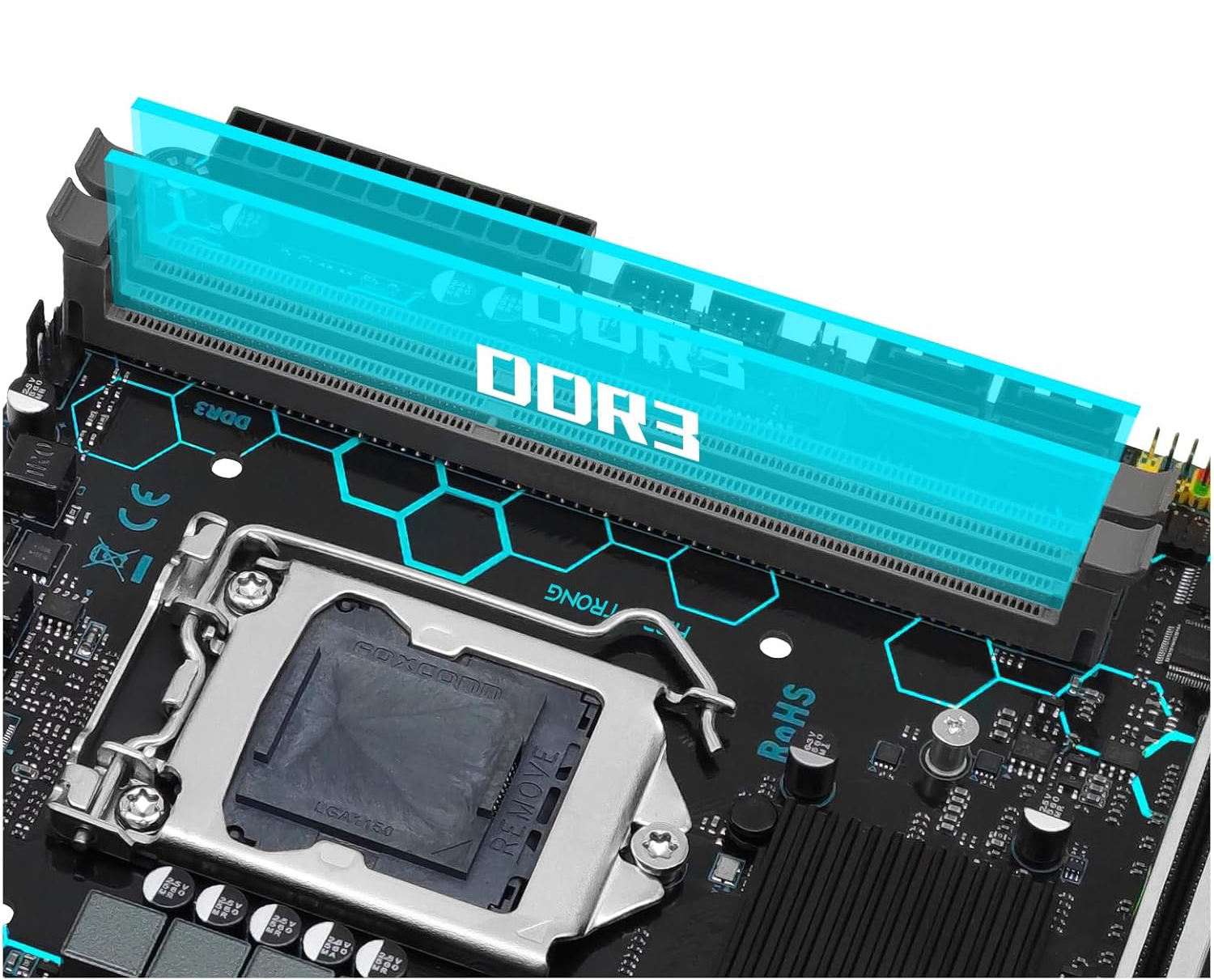

Maximum memory 32GB: MINI ITX mainboard supports DDR3 RAM memory in Dual Channel Non-ECC mode, 2 DIMM slots, Maximum memory capacity is 16GB (2 * 8GB). Supports speeds 1066/1333 / 1600/1866MHz.

Stable power supply: 4-phase power supply, completely constant capacitors, precise execution, professional stability. The LGA 1150 ATX motherboard is equipped with a 24 + 8 PIN power connector (use the value of the value for at least 500W).

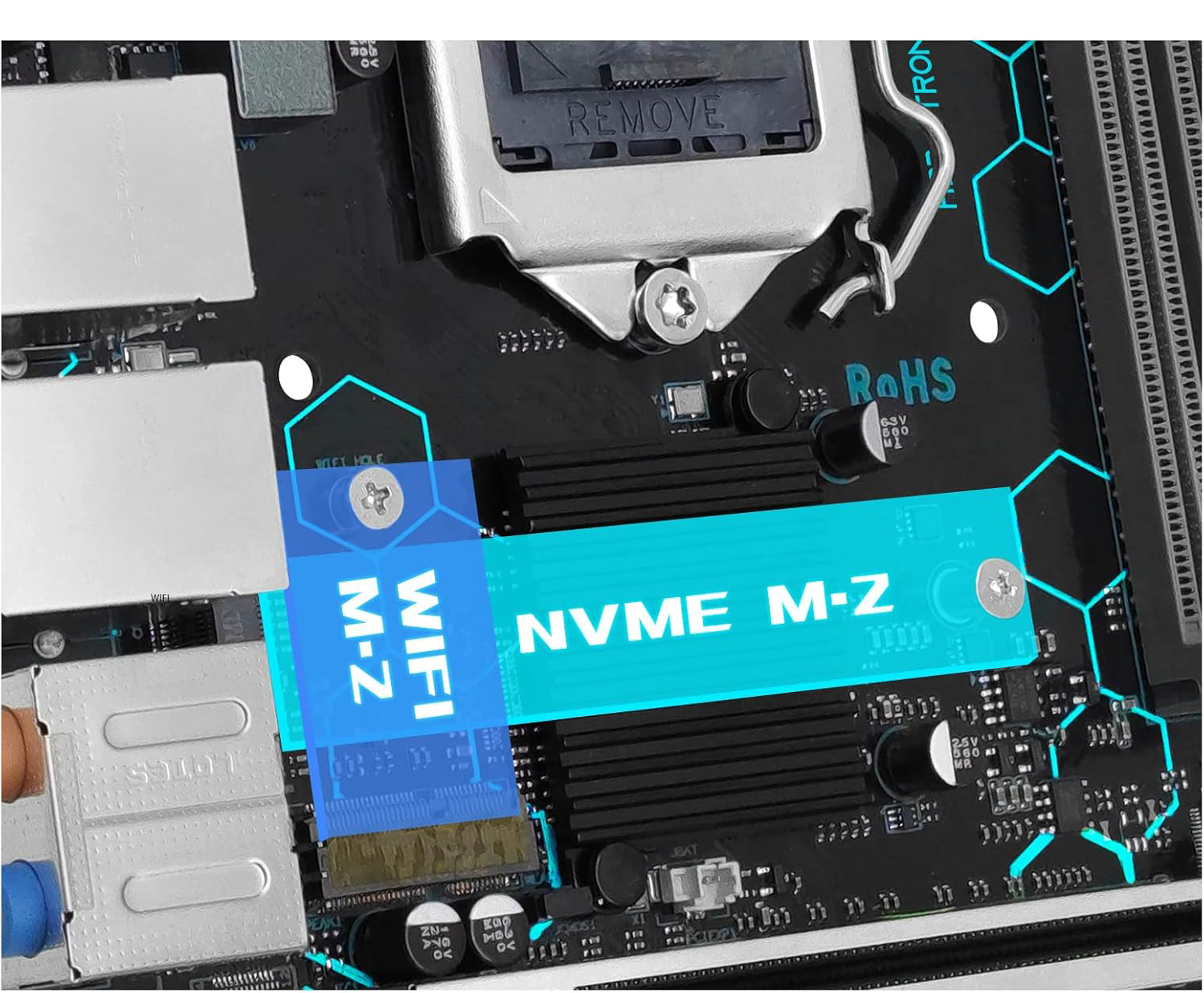

Highest communication for players: The computer motherboard has HDMI, VGA and DP connectors for high-resolution multimedia transmission, 2 RJ45 Gigabit RJ45 network connectors, M.2 (SSD NVME), WiFi M.2, PCIe 3.0 x16, SATA 3.0, USB 3.0, USB 2.0.

High performance: The LGA1150 DDR3 motherboard is equipped with H97 chipset. It has overheating cover, providing stable rail communication.

Package contents: 1 * H97 strong board H97, 1 * SATA cable, 1 * I / O Cover. The motherboard does not contain the CR2032L battery, you must purchase it separately.
