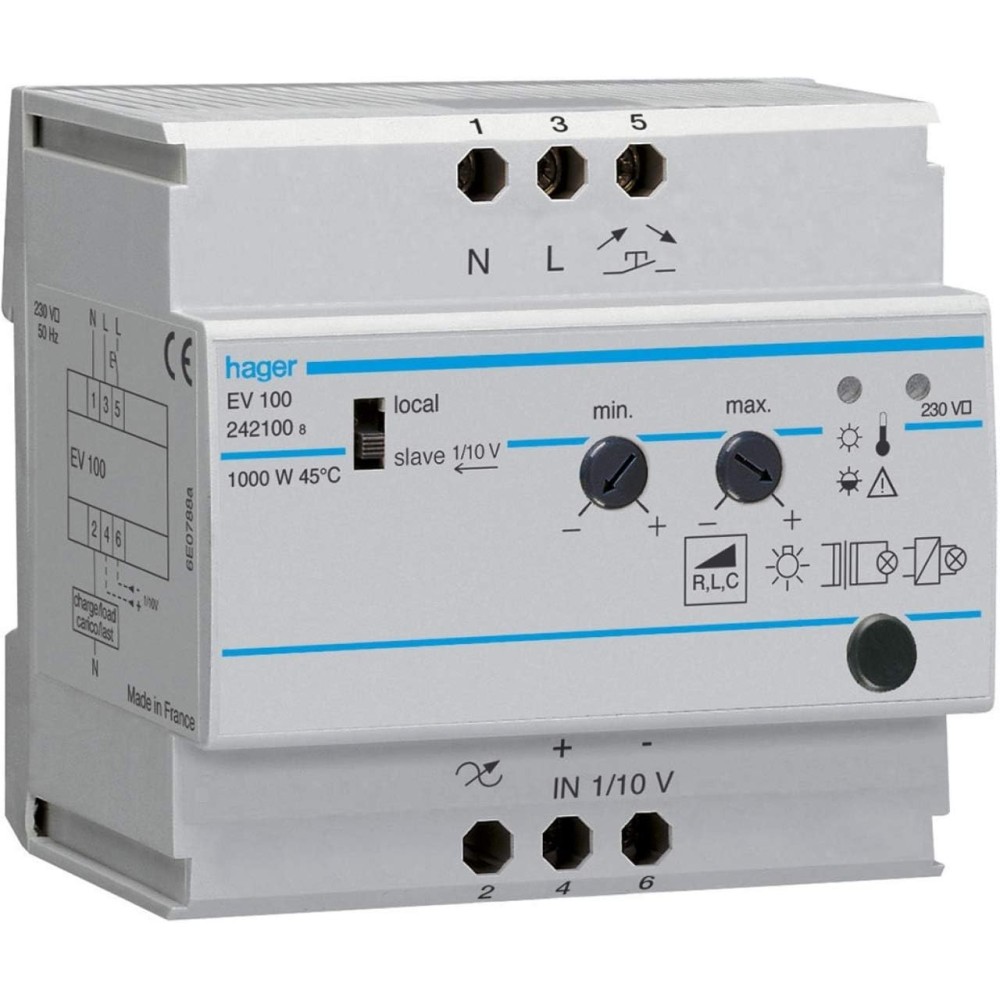

Universal Hager EV100 light regulator, 20-1000 W, 20 A, 1-10 V input

Remote light regulators, 1000 W: EV100:

• Automatic load recognition (direct or reverse phase adjustment).
• Set the brightness value on the device using an external button or via 1-10 V interface.
• Electronic overload protection and overheating.
• The ability to connect the light adjustment buttons with backlight to 5 mA.
• The maximum and minimum brightness value can be adjusted.

Description:

• Electronic overheating protection.
• Power: 20-1000 w / VA
• Number of modules: 5. • Operating mode selector: - button control (local); - Control via 1-10V (sub-device). • Minimum and maximum brightness regulator on the device. • LED indicator for: - 230 V working voltage / error due to load; - short-circuit / overheating indicator. Designed for: - bulbs; - halogen lamps for 230 V; - low-voltage halogen lamps with inductive transformers; - low-voltage halogen lamps with electronic transformers.

Technical specification:

Dimensions (PE): 5 Rated voltage: 230 V AC (+10% / - 15%), 50 Hz Loss power for nominal load: 15 Because of lighting adjustment: Automatic load recognition Remote control button: Yes Yes Backlight Button Lighting regulation: Yes, for the rest current 5 has the input to the lighting query: no
