Lamp radiator Gas radiator Garden for Gas LPG 12.5 kW Hexagon

Product code: Utz21001

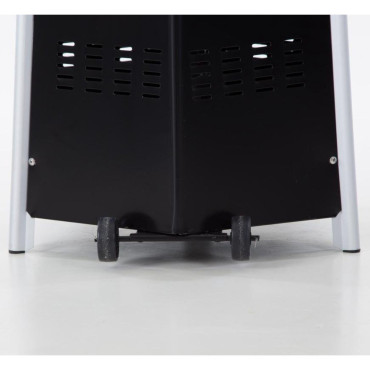

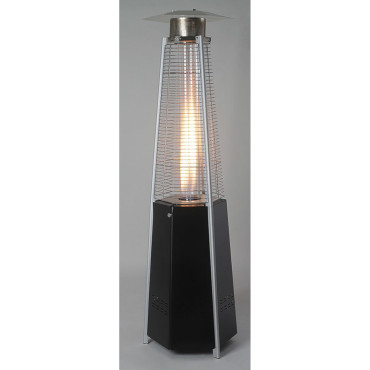

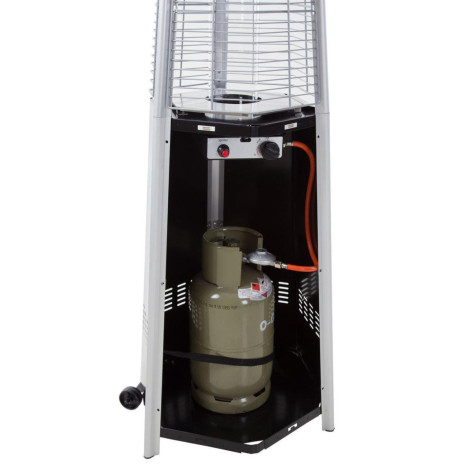

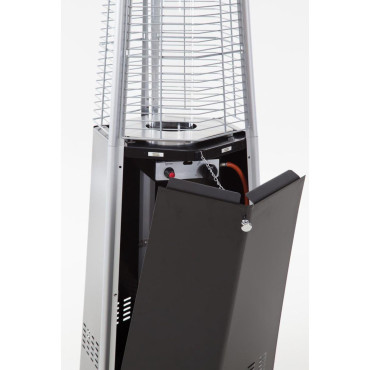

Hexagon gas lamp This is an extremely efficient hexagonal radiator and a spectacular lamp that provides a warm atmosphere in the outer part of the premises during long evening meetings. The lamp is powered by a gas cylinder o Maximum capacity of 10 kgwhich can be placed under a durable cover. Thanks to stainless steel structure, the device is Resistant to weather conditions. Circles mounted in the base allow Easy movement of the lamp.
Features and functions:

• - high-quality heating element provides long-term, trouble-free operation,
• - Effectively heats and illuminate the surroundings,
• - a stable base protects the device against falling,

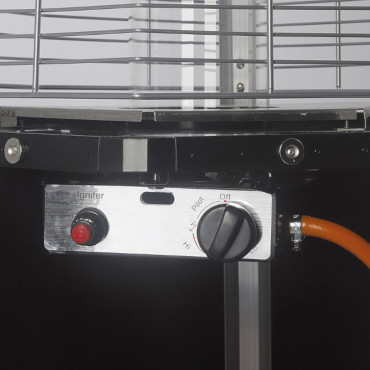

• - Piezo igniter facilitates gas lighting,
• - smooth flame adjustment,
• - shut-off valve. Gas inflow when turning over the lamp,
• - thermal fuse - closes the gas supply in the event of a flame,

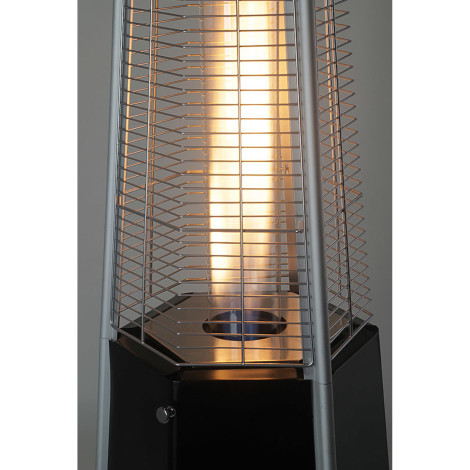

• - resistant to high temperatures of a tube of tempered glass,
• - stainless steel execution,
• - Easy and fast assembly.

Technical parameters:

• - diameter of the ignition burner nozzle - AVG. 0.18 mm
• - Diameter of the main burner nozzle - AVG. 1,80
• - Max. Diameter of the junction cylinder - AVG. 310 mm,
• - Max. Altitude of the junction cylinder with a reducer - 680 mm
• - Length of a glass tube - 9250 mm
• - diameter of glass tube - External - 120 mm, internal - 114 mm
• - Lamp height - 1950 mm
• - base height - 900 mm
• - Basic dimension - 570 x 570 mm
• - dimension of the lamps - 520 x 520 mm
• - Weight without a bottle - 22 kg
• - maximum power - 12.5 kW
• - Orientation gas consumption - 870 g / hour
• - Gas type - G30 propane-butane, LPG
• - Gas pressure - 28 - 30 mbar
• - maximum capacity of the cylinder - 10 kg

The product is supplied in a non-assembly conditioner.
Delivery of the heating lamp - a package of dimensions: 100 x 50 x 33 cm weighing 24 kg
Included:

• - Hexagon gas lamp black silver
• - mounting elements in this key and screwdriver,
• - gas hose,
• - clamping bands,
• - Pressure reducer,
• - rolled wheels screwed to the lamp base,
• - tube with tempered glass,
• - User manual,
• - No battery AAA 1.5 V to piezo igniter,
• - No gas cylinder.
